TECH PUBLICDatasheet (PDF)

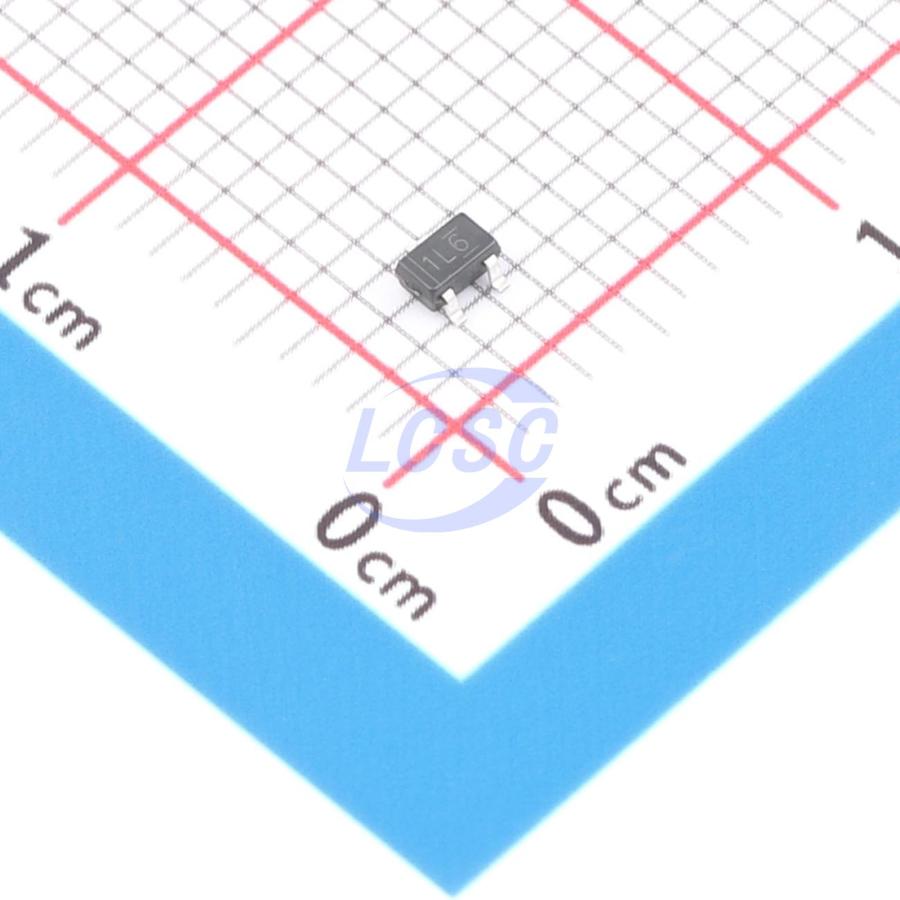

TPESD2CAN24DCKRQ1
50V 4A@8/20us 200W@8/20us 25.5V Bidirectional 24V SOT-323 TVS Diodes
SOT-323RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPESD2CAN24DCKRQ1
- Store part #
- C55114141
- Package / case
- SOT-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,955 in stock
#C55114141
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.76 | ₹93.80 |
| 50+ | ₹14.75 | ₹737.50 |
| 150+ | ₹12.74 | ₹1,911.00 |
| 500+ | ₹11.25 | ₹5,625.00 |
| 3,000+ | ₹10.04 | ₹30,120.00 |
| 6,000+ | ₹9.45 | ₹56,700.00 |
5 × ₹18.76
₹93.80
excl. GST
₹110.68 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPESD2CAN24DCKRQ1
₹93.80 for 5 + GST
Specifications
- Clamping Voltage
- 50V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 4A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 200W@8/20us
- Number of Channels
- 2
- Voltage - Breakdown
- 25.5V
- type
- ESD
- Reverse Leakage Current (Ir)
- 100nA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 24V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.029 g
