TECH PUBLIC

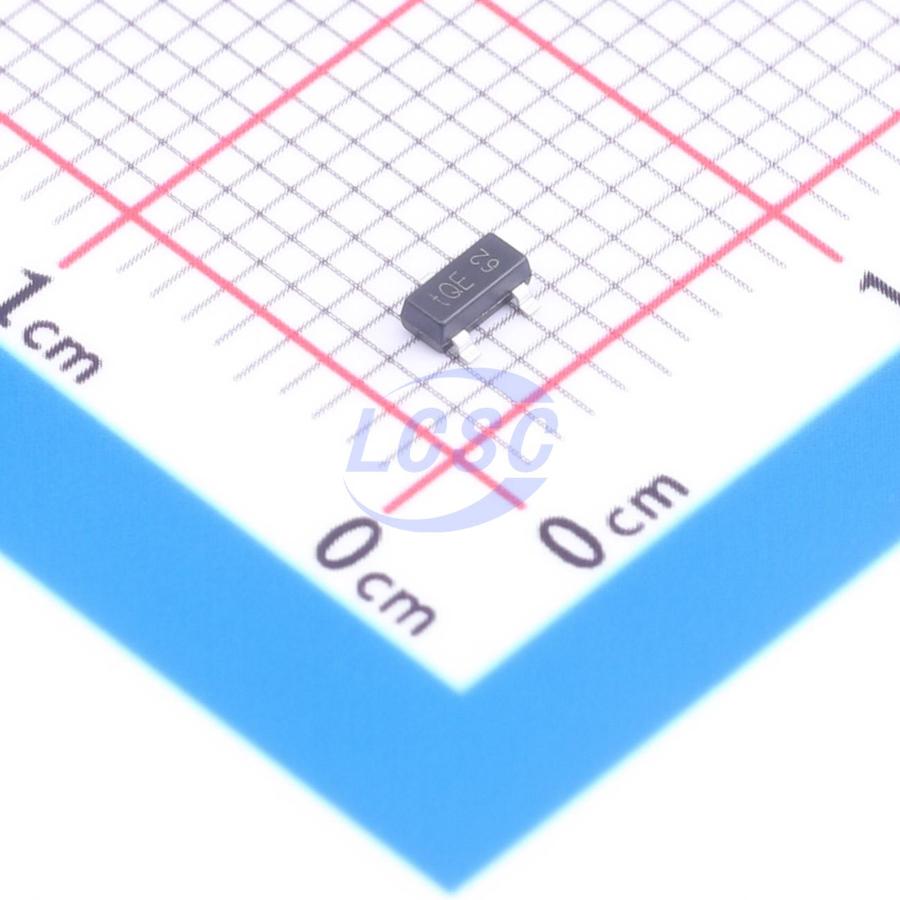

TPESD2CANFD60LT-QR

110V 4A@8/20us 450W@8/20us 65V Bidirectional 60V SOT-23 TVS Diodes

SOT-23RoHSActive

Manufacturer: TECH PUBLIC
Manufacturer part #: TPESD2CANFD60LT-QR
Store part #: C54561911
Package / case: SOT-23
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,470 in stock

#C54561911

Stock & price checked 12 days ago

Quantity	Unit price	Pack price
5+	₹16.07	₹80.35
50+	₹12.65	₹632.50
150+	₹10.93	₹1,639.50
500+	₹9.63	₹4,815.00
3,000+	₹8.61	₹25,830.00
6,000+	₹8.10	₹48,600.00

Quantity (min 5, multiples of 5)

5 × ₹16.07

₹80.35

excl. GST

₹94.81 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPESD2CANFD60LT-QR

₹80.35 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 110V
Operating Temperature: -55℃~+125℃
Peak Pulse Current (Ipp): 4A@8/20us
Peak Pulse Power Dissipation (Ppp): 450W@8/20us
Number of Channels: 2
Voltage - Breakdown: 65V
type: ESD
Polarity: Bidirectional
Reverse Leakage Current (Ir): 500nA
Reverse Stand-Off Voltage (Vrwm): 60V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.033 g

Overview

Applications

Video line protection
Base station I²C bus protection
T1/E1 secondary IC protection
T3/E3 secondary IC protection
HDSL IDSL secondary IC protection

Key features

Low operating voltage: 60V
Ultra-low capacitance: 15pF
Ultra-low leakage: nanoamp-level
Low clamping voltage
IEC 61000-4-2 (ESD) immunity test: air discharge ±30kV, contact discharge ±30kV
IEC 61000-4-4 (EFT) 40A (5/50ns)
IEC 61000-4-5 (Surge) 4A (8/20μs)
3-pin lead-free package
RoHS-compliant lead-free devices
Response time typically < 1 ns
