TECH PUBLIC

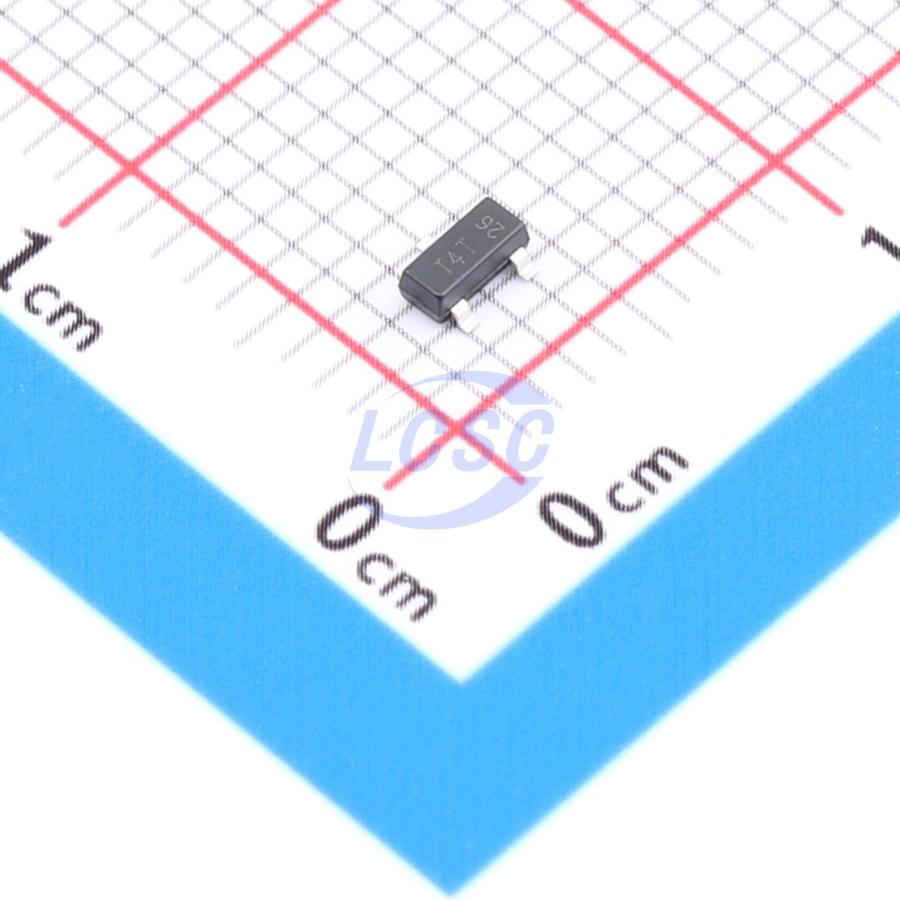

TPESD2IVN48T-QR

95V 4A@8/20us 350W@8/20us 56V Bidirectional 48V SOT-23 TVS Diodes

SOT-23RoHSActive

Manufacturer: TECH PUBLIC
Manufacturer part #: TPESD2IVN48T-QR
Store part #: C53340932
Package / case: SOT-23
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,665 in stock

#C53340932

Stock & price checked 13 days ago

Quantity	Unit price	Pack price
5+	₹13.27	₹66.35
50+	₹10.48	₹524.00
150+	₹9.08	₹1,362.00
500+	₹8.03	₹4,015.00
3,000+	₹7.20	₹21,600.00
6,000+	₹6.77	₹40,620.00

Quantity (min 5, multiples of 5)

5 × ₹13.27

₹66.35

excl. GST

₹78.29 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPESD2IVN48T-QR

₹66.35 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 95V
Operating Temperature: -55℃~+125℃
Peak Pulse Current (Ipp): 4A@8/20us
Peak Pulse Power Dissipation (Ppp): 350W@8/20us
Number of Channels: 2
Voltage - Breakdown: 56V
type: ESD
Reverse Leakage Current (Ir): 100nA
Polarity: Bidirectional
Reverse Stand-Off Voltage (Vrwm): 48V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.032 g

Overview

Applications

Video line protection
Base station I²C bus protection
T1/E1 secondary IC protection
T3/E3 secondary IC protection
HDSL IDSL secondary IC protection

Key features

Low operating voltage: 48V
Ultra-low capacitance: 5pF
Ultra-low leakage: nanoamp-level
Low clamping voltage
IEC 61000-4-2 (ESD) immunity test: air discharge ±30kV, contact discharge ±30kV
IEC 61000-4-4 (EFT) 40A (5/50ns)
IEC 61000-4-5 (Lightning Surge) 4A (8/20μs)
3-pin lead-free package
RoHS-compliant lead-free devices
Response time typically < 1 ns
