TECH PUBLIC

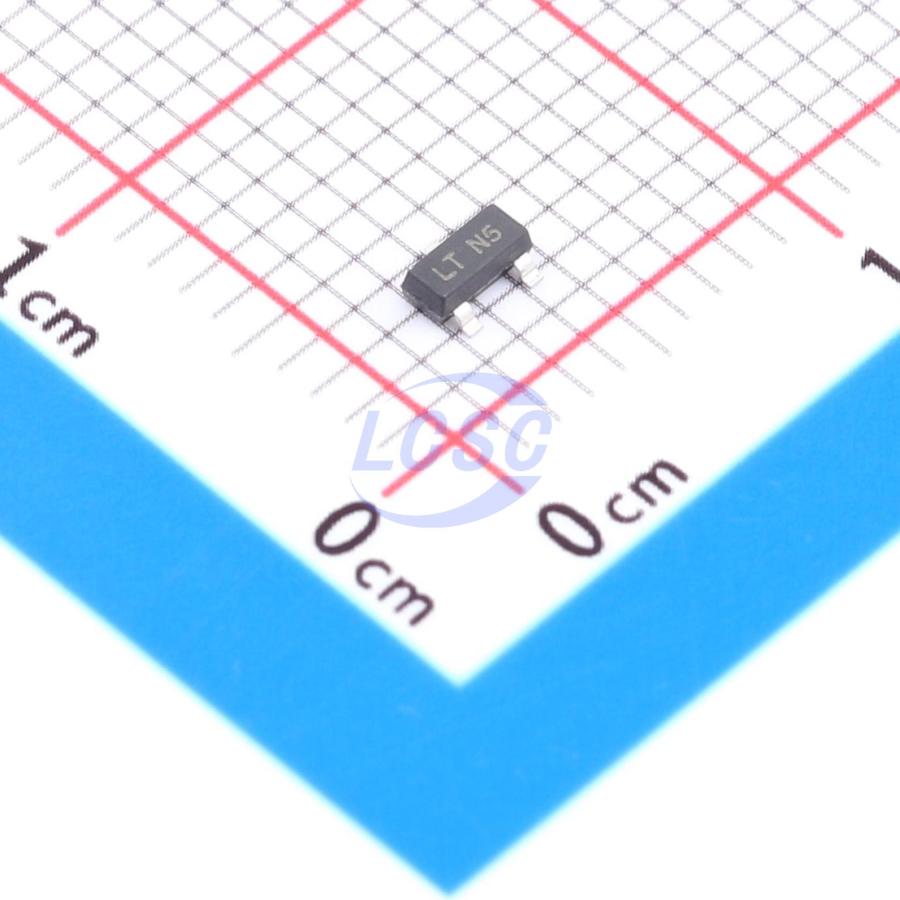

TPESD2USB5UV-TR

20V 17A@8/20us 350W@8/20us 6.4V Unidirectional 5V SOT-23 TVS Diodes RoHS

SOT-23ROHS CompliantActive

ESD DIODE 5VWM 20VC SOT-23

Manufacturer: TECH PUBLIC
Manufacturer part #: TPESD2USB5UV-TR
Store part #: C51939642
Package / case: SOT-23
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,410 in stock

#C51939642

Stock & price checked 11 days ago

Quantity	Unit price	Pack price
10+	₹5.36	₹53.60
100+	₹4.22	₹422.00
300+	₹3.65	₹1,095.00
3,000+	₹3.21	₹9,630.00
6,000+	₹2.88	₹17,280.00
9,000+	₹2.71	₹24,390.00

Quantity (min 10, multiples of 10)

10 × ₹5.36

₹53.60

excl. GST

₹63.25 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPESD2USB5UV-TR

₹53.60 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 20V
Operating Temperature: -55℃~+125℃
Peak Pulse Current (Ipp): 17A@8/20us
Peak Pulse Power Dissipation (Ppp): 350W@8/20us
Voltage - Breakdown: 6.4V
Number of Channels: 2
type: ESD
Polarity: Unidirectional
Reverse Leakage Current (Ir): 100nA
Reverse Stand-Off Voltage (Vrwm): 5V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 1 g

Overview

Applications

Mobile phones & accessories
Laptops and handheld devices
Portable instruments
Set-top boxes
Industrial control

Key features

350W peak pulse power (8/20μs)
Ultra-low leakage current: nA level
Operating voltage: 5V
Low clamping voltage
Compliant with the following standards:
IEC 61000-4-2 (ESD) immunity test
Air discharge: ±30kV
Contact discharge: ±30kV
IEC 61000-4-4 (EFT) 40A (5/50ns)
IEC 61000-4-5 (Lightning Surge) 17A (8/20μs)
RoHS compliant

Alternatives

Similar parts — check the datasheet before substituting.

Part		Manufacturer	Package	Stock	Price from (excl. GST)	Action
	TPPACDN042Y3R#C2844723TECH PUBLIC · SOT-23	TECH PUBLIC	SOT-23	3,380	₹10.48 · 3,380 in stock	View
