TECH PUBLICDatasheet (PDF)

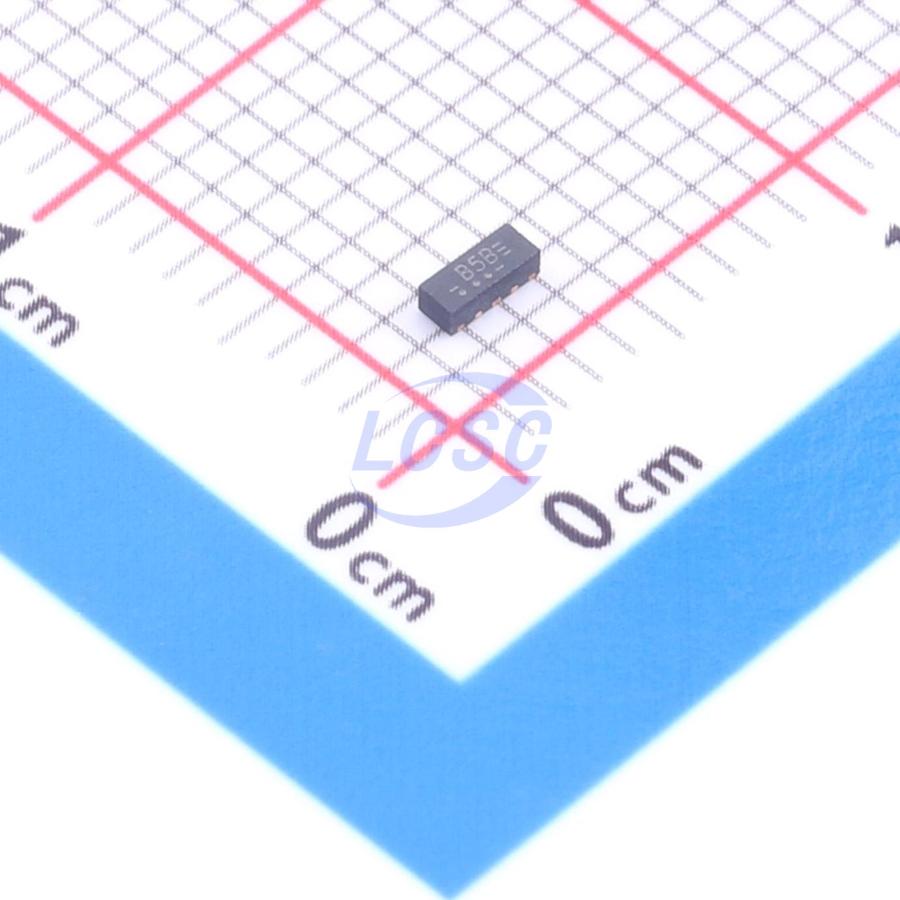

TPESD4USB3R-TBRX
10V 7A@60ns 70W@8/20us 5.8V Unidirectional 3.3V DFN2510-10L TVS Diodes
DFN2510-10LRoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPESD4USB3R-TBRX
- Store part #
- C55114363
- Package / case
- DFN2510-10L
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,000 in stock
#C55114363
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.03 | ₹80.15 |
| 50+ | ₹12.61 | ₹630.50 |
| 150+ | ₹10.89 | ₹1,633.50 |
| 500+ | ₹9.60 | ₹4,800.00 |
| 3,000+ | ₹8.59 | ₹25,770.00 |
| 6,000+ | ₹8.07 | ₹48,420.00 |
5 × ₹16.03
₹80.15
excl. GST
₹94.58 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPESD4USB3R-TBRX
₹80.15 for 5 + GST
Specifications
- Clamping Voltage
- 10V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 7A@60ns
- Peak Pulse Power Dissipation (Ppp)
- 70W@8/20us
- Number of Channels
- Four channels
- Voltage - Breakdown
- 5.8V
- type
- ESD
- Reverse Leakage Current (Ir)
- 200nA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 3.3V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.014 g
