TECH PUBLICDatasheet (PDF)

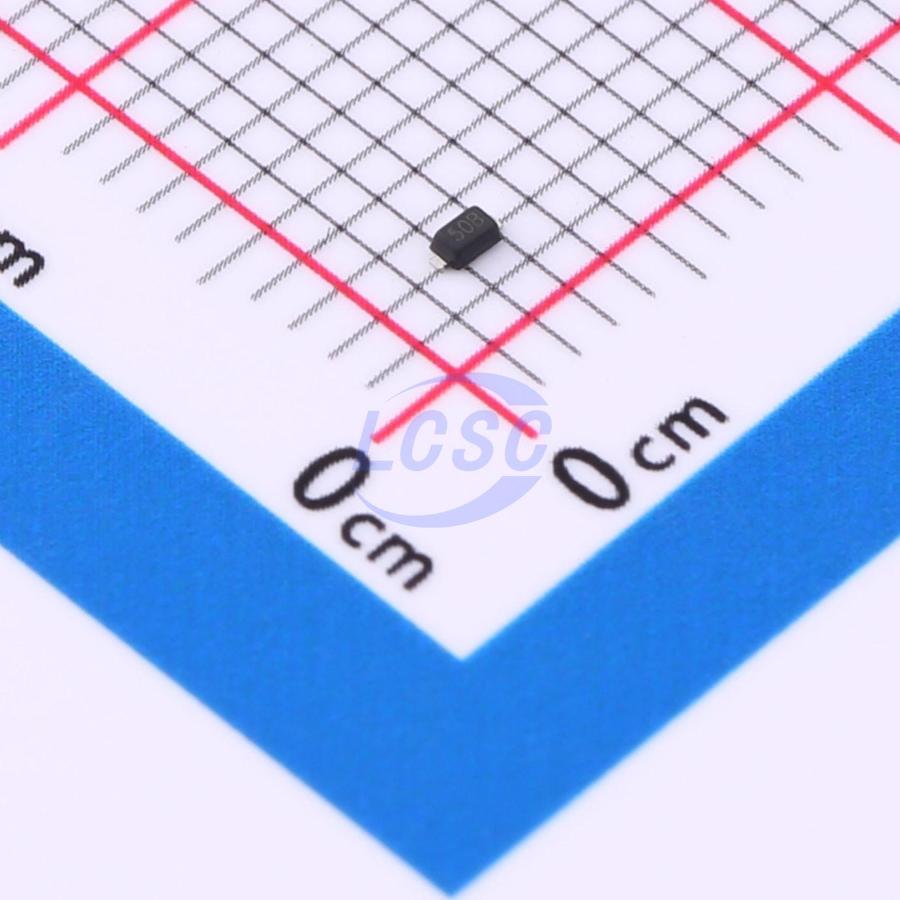

TPESD50B4AWT
70VC Clamp 4A Ipp ESD DIODE SOD-523
SOD-523RoHSActive
ESD DIODE 48VWM 70VC SOD-523
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPESD50B4AWT
- Store part #
- C41432275
- Package / case
- SOD-523
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,430 in stock
#C41432275
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.60 | ₹58.00 |
| 50+ | ₹9.31 | ₹465.50 |
| 150+ | ₹8.16 | ₹1,224.00 |
| 500+ | ₹7.30 | ₹3,650.00 |
| 3,000+ | ₹6.62 | ₹19,860.00 |
| 6,000+ | ₹6.27 | ₹37,620.00 |
5 × ₹11.60
₹58.00
excl. GST
₹68.44 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPESD50B4AWT
₹58.00 for 5 + GST
Specifications
- Clamping Voltage
- 70V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 4A
- Peak Pulse Power Dissipation (Ppp)
- 300W
- Number of Channels
- 1
- Voltage - Breakdown
- 53.5V
- type
- ESD
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 80nA
- Reverse Stand-Off Voltage (Vrwm)
- 48V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.088 g
Overview
Applications
- Mobile phones & accessories
- Personal digital assistants
- Laptops & handheld devices
- Portable instruments
- Peripheral devices
Key features
- Low operating voltage: 50V
- Ultra-low capacitance: 5pF (typical)
- Ultra-low leakage current: nA level
- Low clamping voltage
- Compliant with IEC 61000-4-2 (ESD) immunity test standard
- Air discharge: ±25kV
- Contact discharge: ±20kV
- Compliant with IEC 61000-4-4 (EFT) standard, 40A (5/50ns)
- 2-pin leadless package
- Typical response time < 1 ns
