TECH PUBLICDatasheet (PDF)

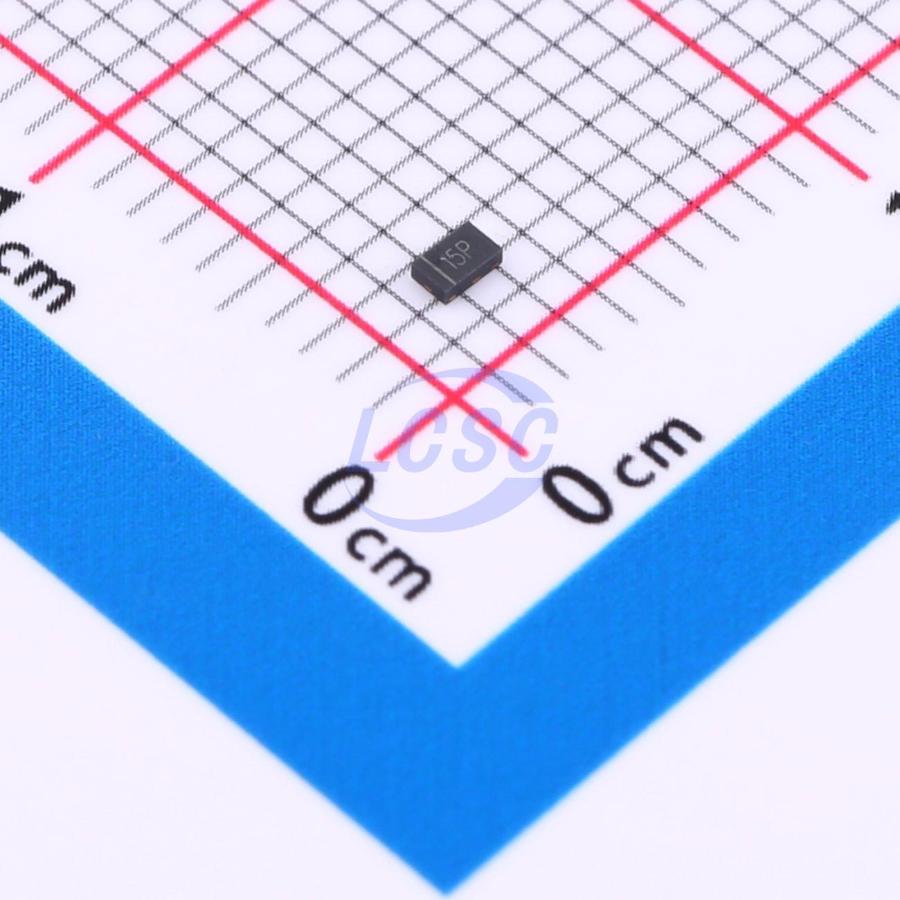

TPESD56101D15
30VC Clamp 60A@8/20us Ipp ESD DIODE DFN1610-2
DFN1610-2RoHSActive
ESD DIODE 24VWM 30VC DFN1610-2
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPESD56101D15
- Store part #
- C42436629
- Package / case
- DFN1610-2
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
Out of stock
#C42436629
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.60 | ₹86.00 |
| 100+ | ₹6.88 | ₹688.00 |
| 300+ | ₹6.02 | ₹1,806.00 |
| 3,000+ | ₹5.37 | ₹16,110.00 |
| 6,000+ | ₹4.86 | ₹29,160.00 |
| 9,000+ | ₹4.60 | ₹41,400.00 |
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
Specifications
- Clamping Voltage
- 30V
- Peak Pulse Current (Ipp)
- 60A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 1.8kW@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 26.7V
- type
- ESD
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 24V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.028 g
Overview
Applications
- Power Management
- Industrial Application
- Power Supply Protection
- Many other portable devices
Key features
- 1800W peak pulse power (8/20μs)
- Low leakage: nA level
- Low operating voltage: 15V
- Utra low clamping voltage
- One power line protects
- Complies with following standards:
- IEC 61000 - 4 - 2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
- IEC61000 - 4 - 5 (Lightning) 60A(8/20 μs)
- RoHS Compliant
