TECH PUBLICDatasheet (PDF)

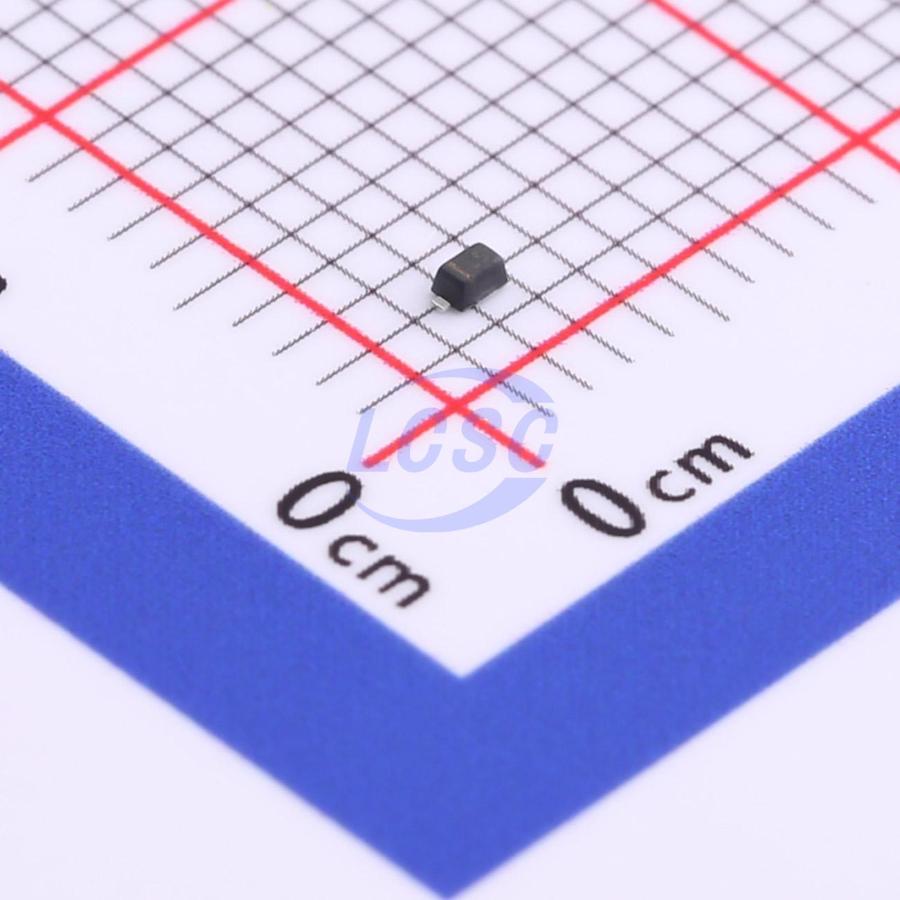

TPESD5L5.0CT1G
15VC Clamp ESD DIODE SOD-523
SOD-523RoHSActive
ESD DIODE 5VWM 15VC SOD-523
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPESD5L5.0CT1G
- Store part #
- C2827664
- Package / case
- SOD-523
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,100 in stock
#C2827664
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.56 | ₹111.20 |
| 200+ | ₹4.46 | ₹892.00 |
| 600+ | ₹3.85 | ₹2,310.00 |
| 3,000+ | ₹3.02 | ₹9,060.00 |
| 9,000+ | ₹2.70 | ₹24,300.00 |
| 21,000+ | ₹2.53 | ₹53,130.00 |
20 × ₹5.56
₹111.20
excl. GST
₹131.22 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPESD5L5.0CT1G
₹111.20 for 20 + GST
Specifications
- Clamping Voltage
- 15V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 2A@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 6.5V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 80nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.03 g
Overview
Applications
- Mobile Phones and Accessories
- Battery Protection
- USB VBus
- Power Line Protection Hand Held Portable Applications
Key features
- Protects one data or power line
- Operating voltage: ±5V
- Ultra low clamping voltage
- Complies with following standards: - IEC 61000-4-2 (ESD) immunity test Air discharge: ±15kV Contact discharge: ±8kV
- Ultra low leakage: nA level
- UL Flammability Classification Rating 94V-0
- Moisture Sensitivity: Level 3 per J-STD-020
