TECH PUBLIC

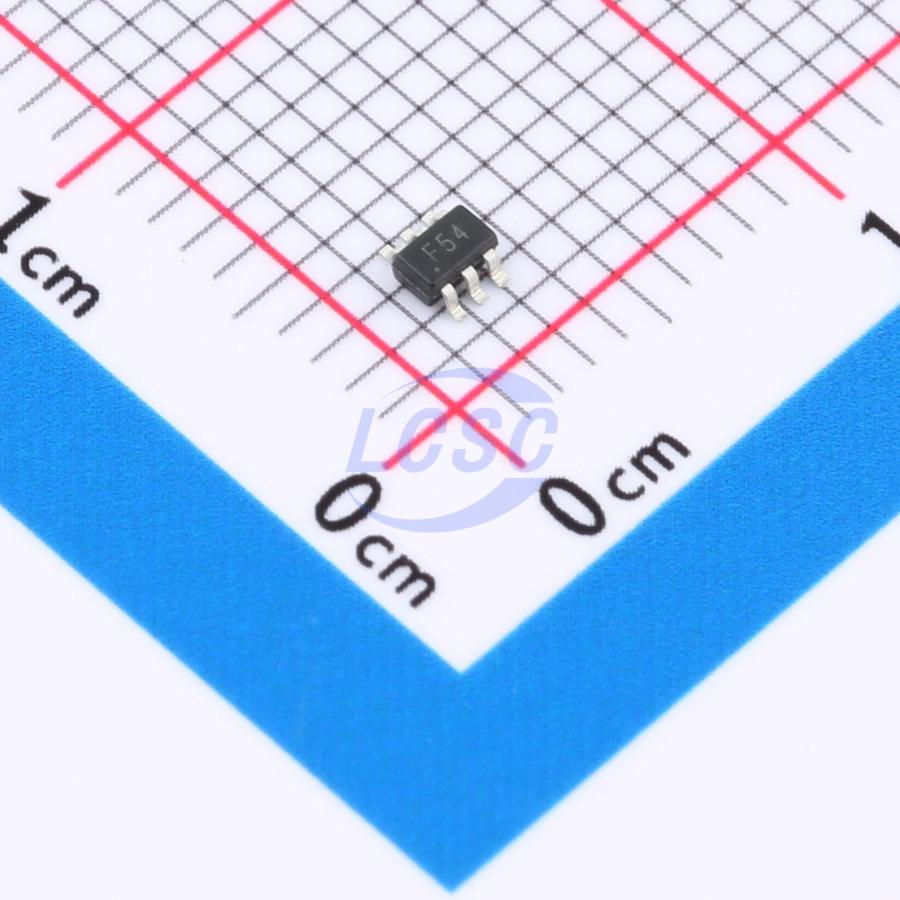

TPESD5V3U4RRS

14VC Clamp 5A@8/20us Ipp ESD DIODE SOT-363

SOT-363RoHSActive

ESD DIODE 5VWM 14VC SOT-363

Manufacturer: TECH PUBLIC
Manufacturer part #: TPESD5V3U4RRS
Store part #: C970013
Package / case: SOT-363
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

820 in stock

#C970013

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
10+	₹9.47	₹94.70
100+	₹7.54	₹754.00
300+	₹6.58	₹1,974.00
3,000+	₹5.58	₹16,740.00
6,000+	₹5.00	₹30,000.00
9,000+	₹4.72	₹42,480.00

Quantity (min 10, multiples of 10)

10 × ₹9.47

₹94.70

excl. GST

₹111.75 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPESD5V3U4RRS

₹94.70 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 14V
Operating Temperature: -55℃~+125℃
Peak Pulse Current (Ipp): 5A@8/20us
Peak Pulse Power Dissipation (Ppp): 70W@8/20us
Number of Channels: Four channels
Voltage - Breakdown: 6V
type: TVS
Polarity: Unidirectional
Reverse Leakage Current (Ir): 80nA
Reverse Stand-Off Voltage (Vrwm): 5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.038 g

Overview

Applications

Monitors and flat panel displays
Set-top box and Digital TV
Video graphics cards
Digital Video Interface (DVI)

Key features

Ultra low capacitance: 0.3pF typical (I/O-IO)
Ultra low leakage: nA level
Low operating voltage: 5V
Low clamping voltage
Complies with following standards:
IEC 61000-4-2 (ESD) immunity test Air discharge: ±20kV Contact discharge: ±15kV
IEC61000-4-5 (Lightning) 5A (8/20μs)
RoHS Compliant

Alternatives

Similar parts — check the datasheet before substituting.

Part		Manufacturer	Package	Stock	Price from (excl. GST)	Action
	TPPRTR5V0U4Y#C970009TECH PUBLIC · SOT-363	TECH PUBLIC	SOT-363	5,360	₹10.85 · 5,360 in stock	View
