TECH PUBLICDatasheet (PDF)

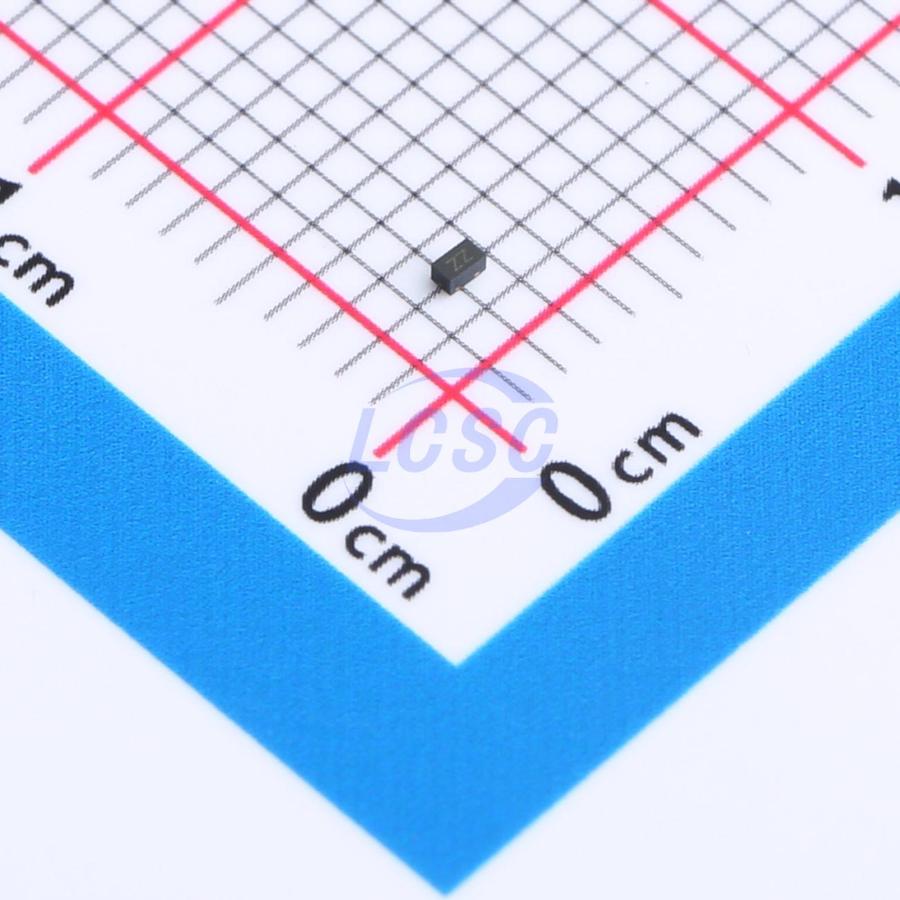

TPESD7462MXWT5G
nan
DFN1006-2LRoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPESD7462MXWT5G
- Store part #
- C20611845
- Package / case
- DFN1006-2L
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,000 in stock
#C20611845
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.27 | ₹66.35 |
| 50+ | ₹10.66 | ₹533.00 |
| 150+ | ₹9.37 | ₹1,405.50 |
| 500+ | ₹8.39 | ₹4,195.00 |
| 3,000+ | ₹7.61 | ₹22,830.00 |
| 6,000+ | ₹7.21 | ₹43,260.00 |
5 × ₹13.27
₹66.35
excl. GST
₹78.29 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPESD7462MXWT5G
₹66.35 for 5 + GST
Specifications
- Clamping Voltage
- 27V
- Number of Channels
- 1
- Voltage - Breakdown
- 21V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 80nA
- Reverse Stand-Off Voltage (Vrwm)
- 15V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.028 g
Overview
Applications
- Cellular Handsets & Accessories
- Digital Visual Interface (DVl)
- Display Port
- MDDI Ports
- USB Ports
Key features
- Ultra small package: 1.0x0.6x0.5mm
- Ultra low capacitance: 0.35pF typical
- Ultra low leakage: nA level
- Low operating voltage: ±15V
- Low clamping voltage
- 2-pin leadless package
- Complies with following standards:
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±15kV Contact discharge: ±8kV
- RoHS Compliant Lead Finish: NiPdAu
