TECH PUBLIC

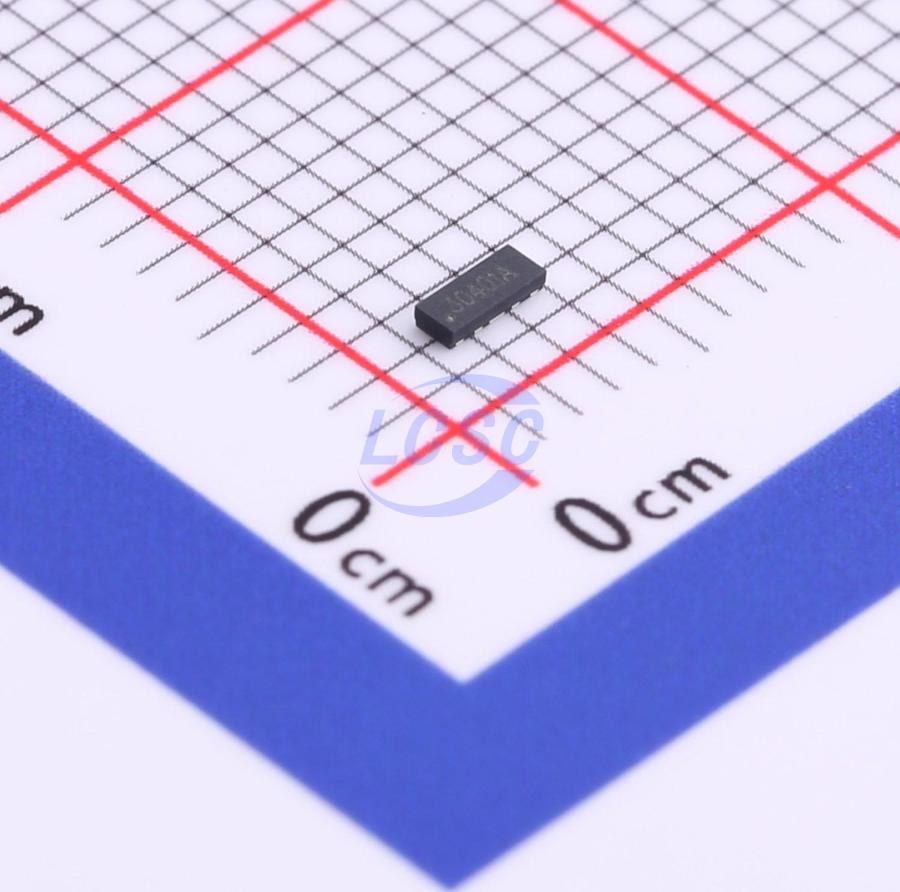

TPESD7504MUTAG

5VC Clamp 6A@8/20us Ipp DFN2510-10

DFN2510-10RoHSActive

3.3VWM 5VC DFN2510-10

Manufacturer: TECH PUBLIC
Manufacturer part #: TPESD7504MUTAG
Store part #: C2827677
Package / case: DFN2510-10
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,800 in stock

#C2827677

Stock & price checked 15 days ago

Quantity	Unit price	Pack price
5+	₹23.35	₹116.75
50+	₹20.65	₹1,032.50
150+	₹19.50	₹2,925.00
500+	₹18.06	₹9,030.00
3,000+	₹15.33	₹45,990.00
6,000+	₹14.94	₹89,640.00

Quantity (min 5, multiples of 5)

5 × ₹23.35

₹116.75

excl. GST

₹137.76 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPESD7504MUTAG

₹116.75 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 7.5V
Operating Temperature: -55℃~+125℃
Peak Pulse Current (Ipp): 6A@8/20us
Peak Pulse Power Dissipation (Ppp): 6W@8/20us
Voltage - Breakdown: 6V
Number of Channels: Four channels
type: TVS
Polarity: Unidirectional
Reverse Leakage Current (Ir): 80nA
Reverse Stand-Off Voltage (Vrwm): 3.3V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.032 g

Overview

Applications

High Definition Multimedia Interface (HDMI)
Digital Visual Interface (DVI)
Unified Display Interface (UDI)
MDDI Ports
PCI Express
Serial ATA

Key features

Ultra low capacitance: 0.1 pF typical (I/O to I/O)
Ultra low leakage: nA level
Low operating voltage: 3.3V
Low clamping voltage
Up to 4 data lines and one power line protects
Complies with following standards:
IEC 61000-4-2 (ESD) immunity test Air discharge: ±20kV Contact discharge: ±15kV
IEC61000-4-4 (EFT) 40A (5/50ns)
IEC61000-4-5 (Lightning) : 6 A(8/20μs)
ROHS Compliant
