TECH PUBLIC

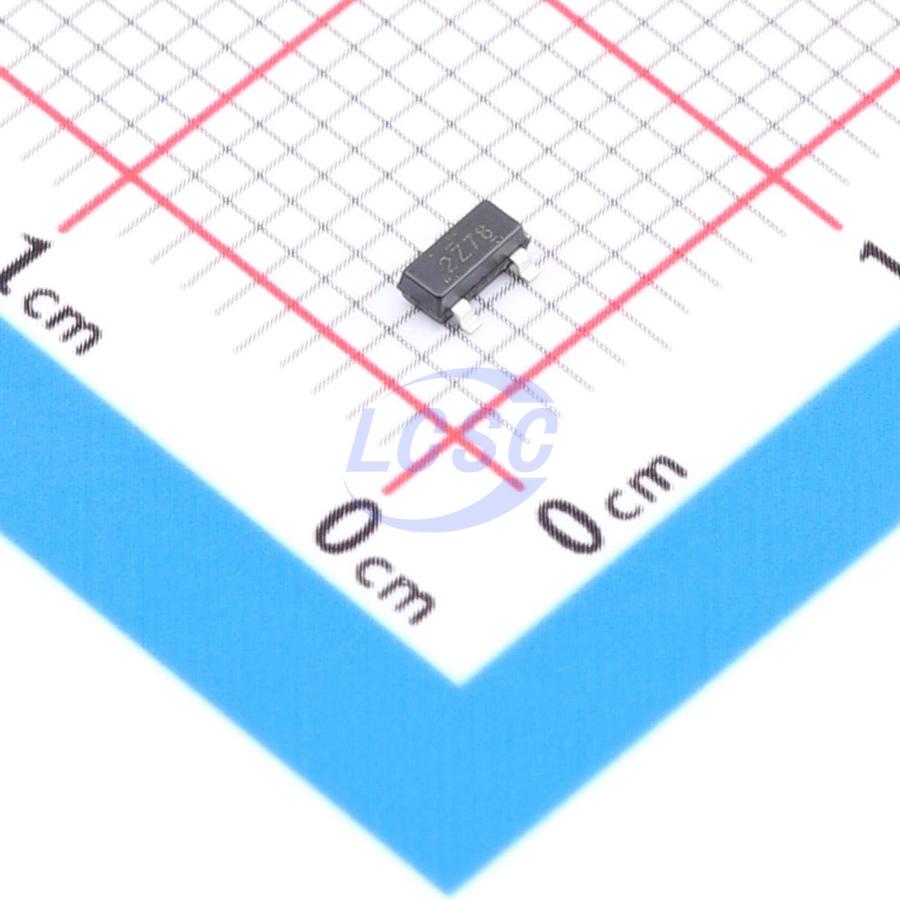

TPESD862DBZR

72V 180W@8/20us 44V Bidirectional 36V SOT-23 TVS Diodes

SOT-23RoHSActive

Manufacturer: TECH PUBLIC
Manufacturer part #: TPESD862DBZR
Store part #: C53340944
Package / case: SOT-23
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,000 in stock

#C53340944

Stock & price checked 13 days ago

Quantity	Unit price	Pack price
5+	₹16.03	₹80.15
50+	₹12.61	₹630.50
150+	₹10.89	₹1,633.50
500+	₹9.60	₹4,800.00
3,000+	₹8.59	₹25,770.00
6,000+	₹8.07	₹48,420.00

Quantity (min 5, multiples of 5)

5 × ₹16.03

₹80.15

excl. GST

₹94.58 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPESD862DBZR

₹80.15 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 72V
Operating Temperature: -55℃~+125℃
Peak Pulse Power Dissipation (Ppp): 180W@8/20us
Voltage - Breakdown: 44V
Number of Channels: 2
type: ESD
Reverse Leakage Current (Ir): 100nA
Polarity: Bidirectional
Reverse Stand-Off Voltage (Vrwm): 36V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.031 g

Overview

Applications

Industrial control
Personal digital assistants
Laptop and handheld devices
CAN bus protection
Automotive applications

Key features

Low operating voltage: 36V
Ultra-low capacitance: 4pF
Ultra-low leakage: nanoamp level
Low clamping voltage
IEC 61000-4-2 (ESD) immunity test: air discharge ±25kV, contact discharge ±20kV
IEC 61000-4-4 (EFT) 40A (5/50ns)
3-pin lead-free package, RoHS compliant devices
Response time typically < 1 ns
Package: SOT-23
Lead finish: matte tin
Molding compound: "green" molding compound
IEC 61000-4-2 (ESD) immunity test
