TPESD9N5B

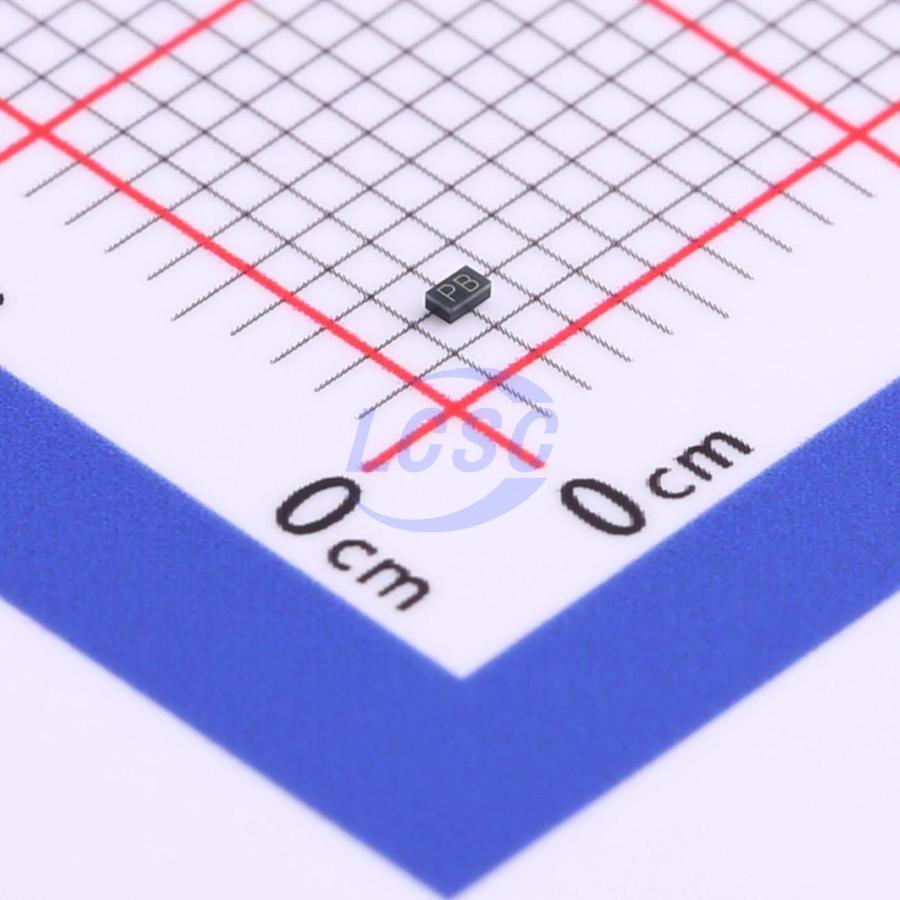

10VC Clamp 8A@8/20us Ipp ESD DIODE DFN1006-2
DFN1006-2RoHSActive
ESD DIODE 5VWM 10VC DFN1006-2
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPESD9N5B
- Store part #
- C2827545
- Package / case
- DFN1006-2
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,650 in stock
#C2827545
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹1.52 | ₹76.00 |
| 500+ | ₹1.20 | ₹600.00 |
| 1,500+ | ₹1.02 | ₹1,530.00 |
| 10,000+ | ₹0.8203 | ₹8,203.00 |
| 20,000+ | ₹0.7276 | ₹14,552.00 |
| 50,000+ | ₹0.6747 | ₹33,735.00 |
50 × ₹1.52
₹76.00
excl. GST
₹89.68 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
TPESD9N5B
₹76.00 for 50 + GST
Specifications
- Clamping Voltage
- 10V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 8A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 80W@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 5.6V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 80nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.01 g
Overview
Applications
- Smart Phone and Tablet PC
- TV and Set Top Box
- Wearable Devices
- PDA
Key features
- Ultra small package: 1.0x0.6x0.5mm
- Ultra low capacitance: 15pF typical
- Ultra low leakage: nA level
- Low operating voltage: ±5V
- Low clamping voltage 2-pin leadless package
- Complies with following standards:
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
- IEC61000-4-5 (Lightning) 8A (8/20μs)
- RoHS Compliant Lead Finish: NiPdAu
