TECH PUBLIC

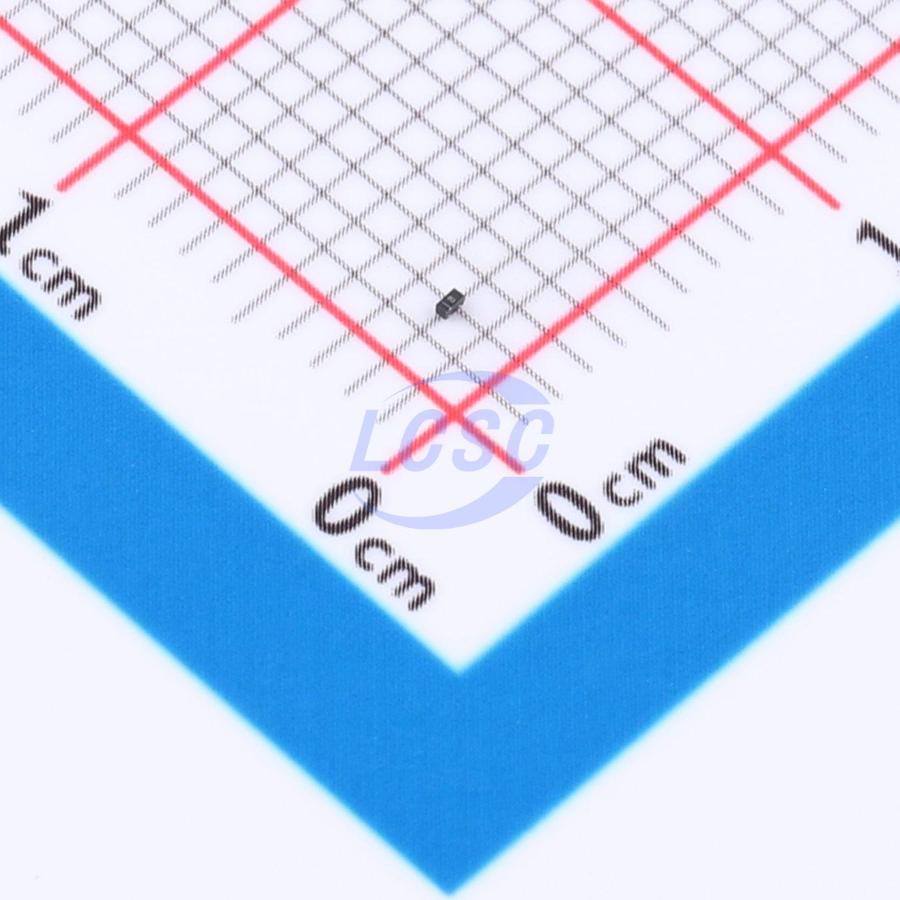

TPESD9V0Z1BDSFYL

20V 6A@8/20us 100W@8/20us 12V Bidirectional 9V DFN0603-2 TVS Diodes

DFN0603-2RoHSActive

Manufacturer: TECH PUBLIC
Manufacturer part #: TPESD9V0Z1BDSFYL
Store part #: C53340945
Package / case: DFN0603-2
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

900 in stock

#C53340945

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
10+	₹8.03	₹80.30
100+	₹6.34	₹634.00
300+	₹5.49	₹1,647.00
1,000+	₹4.86	₹4,860.00
5,000+	₹4.35	₹21,750.00
15,000+	₹4.10	₹61,500.00

Quantity (min 10, multiples of 10)

10 × ₹8.03

₹80.30

excl. GST

₹94.75 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 15,000 per reel

TPESD9V0Z1BDSFYL

₹80.30 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 20V
Operating Temperature: -55℃~+125℃
Peak Pulse Current (Ipp): 6A@8/20us
Peak Pulse Power Dissipation (Ppp): 100W@8/20us
Voltage - Breakdown: 12V
Number of Channels: 1
type: ESD
Reverse Leakage Current (Ir): 200nA
Polarity: Bidirectional
Reverse Stand-Off Voltage (Vrwm): 9V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 15,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.006 g

Overview

Applications

RF Antenna
USB 3.2 Gen 1 and Gen 2
Ethernet 1000BASE-T
Ethernet 10GBASE-T
DisplayPort

Key features

Low operating voltage: 9V
Ultra-low capacitance: 0.25pF (typical)
Ultra-low leakage: nanoamp-level
Low clamping voltage
IEC 61000-4-2 (ESD) immunity test: air discharge ±30kV, contact discharge ±30kV
IEC 61000-4-4 (EFT) 40A (5/50ns)
IEC 61000-4-5 (surge) 6A (8/20μs)
2-pin lead-free package
RoHS-compliant, lead-free devices
Response time typically < 1ns
