TECH PUBLICDatasheet (PDF)

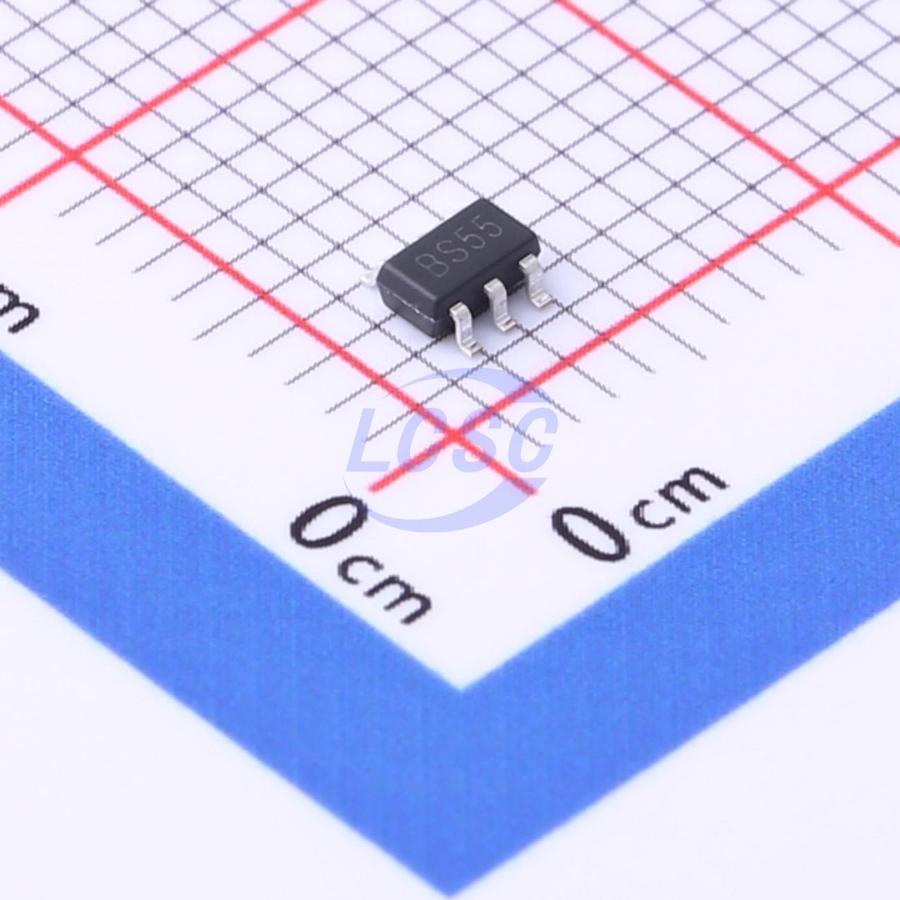

TPESDA6V1BC6
11VC Clamp 8A@8/20us Ipp ESD DIODE SOT-23-6
SOT-23-6RoHSActive
ESD DIODE 5VWM 11VC SOT-23-6
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPESDA6V1BC6
- Store part #
- C2875148
- Package / case
- SOT-23-6
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,145 in stock
#C2875148
Stock & price checked 14 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.62 | ₹88.10 |
| 50+ | ₹14.04 | ₹702.00 |
| 150+ | ₹12.24 | ₹1,836.00 |
| 500+ | ₹10.90 | ₹5,450.00 |
| 3,000+ | ₹9.83 | ₹29,490.00 |
| 6,000+ | ₹9.29 | ₹55,740.00 |
5 × ₹17.62
₹88.10
excl. GST
₹103.96 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPESDA6V1BC6
₹88.10 for 5 + GST
Specifications
- Clamping Voltage
- 11V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 8A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 80W@8/20us
- Number of Channels
- Four channels
- Voltage - Breakdown
- 6.1V
- type
- ESD
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 80nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.035 g
Overview
Applications
- Computers
- Printers
- Communication systems
Key features
- Ultra low capacitance: 17pF typical
- Ultra low leakage: nA level
- Low operating voltage: 5V
- Low clamping voltage
- Complies with following standards:
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
- IEC61000-4-4 (EFT) 40A (5/50ns)
- IEC61000-4-5 (Lightning): 8 A(8/20μs)
- ROHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ESDA6V1BC6#C2912546TECH PUBLIC · SOT-23-6 | TECH PUBLIC | SOT-23-6 | 5,545 | ₹15.25 · 5,545 in stock | View |
 | TPE6V1BS6#C2928725TECH PUBLIC · SOT-23-6 | TECH PUBLIC | SOT-23-6 | 125 | ₹10.73 · 125 in stock | View |
