TECH PUBLICDatasheet (PDF)

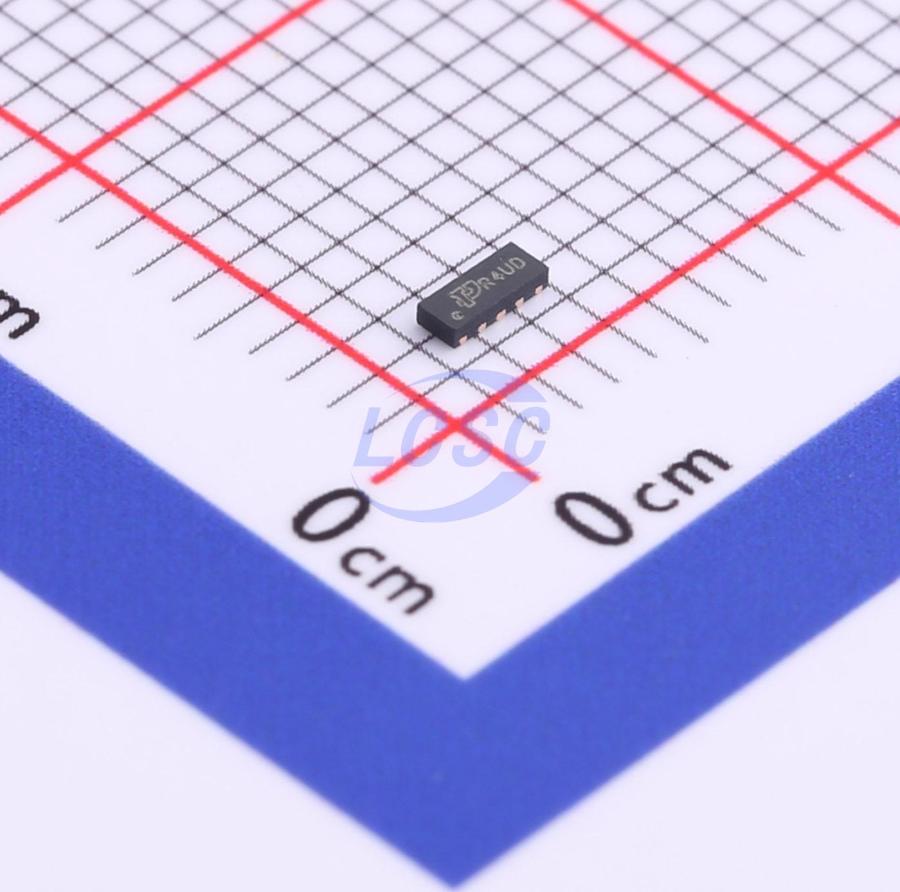

TPESDR0524PMUTAG
13VC Clamp ESD DIODE DFN2510-10
DFN2510-10RoHSActive
ESD DIODE 5VWM 13VC DFN2510-10
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPESDR0524PMUTAG
- Store part #
- C2827547
- Package / case
- DFN2510-10
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,210 in stock
#C2827547
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.34 | ₹93.40 |
| 100+ | ₹7.50 | ₹750.00 |
| 300+ | ₹6.58 | ₹1,974.00 |
| 3,000+ | ₹5.12 | ₹15,360.00 |
| 6,000+ | ₹4.56 | ₹27,360.00 |
| 9,000+ | ₹4.30 | ₹38,700.00 |
10 × ₹9.34
₹93.40
excl. GST
₹110.21 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPESDR0524PMUTAG
₹93.40 for 10 + GST
Specifications
- Clamping Voltage
- 13V
- Peak Pulse Power Dissipation (Ppp)
- 70W@8/20us
- Voltage - Breakdown
- 9.2V
- type
- ESD
- Reverse Leakage Current (Ir)
- 10nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.032 g
Overview
Applications
- High Definition Multimedia Interface (HDMI)
- Digital Visual Interface (DVI)
- Unified Display Interface (UDI)
- MDDI Ports
- PCI Express
- Serial ATA
Key features
- 70 Watts Peak Pulse Power (8/20μs)
- Protects two or four I/O lines
- Low capacitance: 0.3pF typical (I/O to I/O)
- Low operating voltage: 5V
- RoHS Compliant
- IEC61000-4-2 (ESD) ±20kV (air), ±15kV (contact)
- IEC61000-4-4 (EFT) 40A (5/50ns)
- IEC61000-4-5 (Lightning) 5A(8/20μs)
