TECH PUBLICDatasheet (PDF)

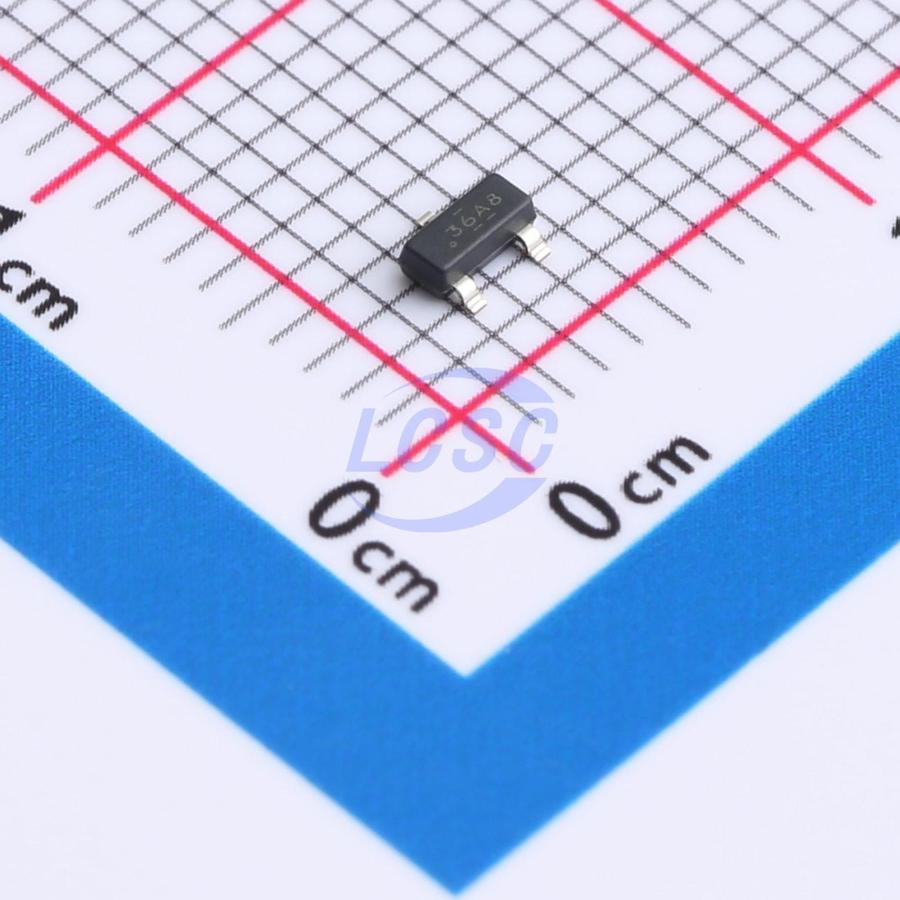

TPESDS552DBZR
23.5VC Clamp 20A@8/20us Ipp SOT-23
SOT-23RoHSActive
12VWM 23.5VC SOT-23
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPESDS552DBZR
- Store part #
- C41408080
- Package / case
- SOT-23
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
770 in stock
#C41408080
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.38 | ₹106.90 |
| 50+ | ₹17.36 | ₹868.00 |
| 150+ | ₹15.35 | ₹2,302.50 |
| 500+ | ₹13.84 | ₹6,920.00 |
| 3,000+ | ₹11.01 | ₹33,030.00 |
| 6,000+ | ₹10.40 | ₹62,400.00 |
5 × ₹21.38
₹106.90
excl. GST
₹126.14 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPESDS552DBZR
₹106.90 for 5 + GST
Specifications
- Clamping Voltage
- 23.5V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 20A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 500W@8/20us
- Voltage - Breakdown
- 18V
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 12V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.414 g
Overview
Applications
- RS - 485
- RS - 422
- Security systems
- Portable Instrumentation
- Peripherals
Key features
- Low operating voltage: ±12V
- Ultra low capacitance: 15pF
- Ultra low leakage: nA level
- Low clamping voltage
- IEC 61000 - 4 - 2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
- IEC61000 - 4 - 4 (EFT) 40A (5/50ns)
- 2 - pin leadless package
- These are Pb - Free Devices
- Response Time is Typically < 1 ns
