TECH PUBLICDatasheet (PDF)

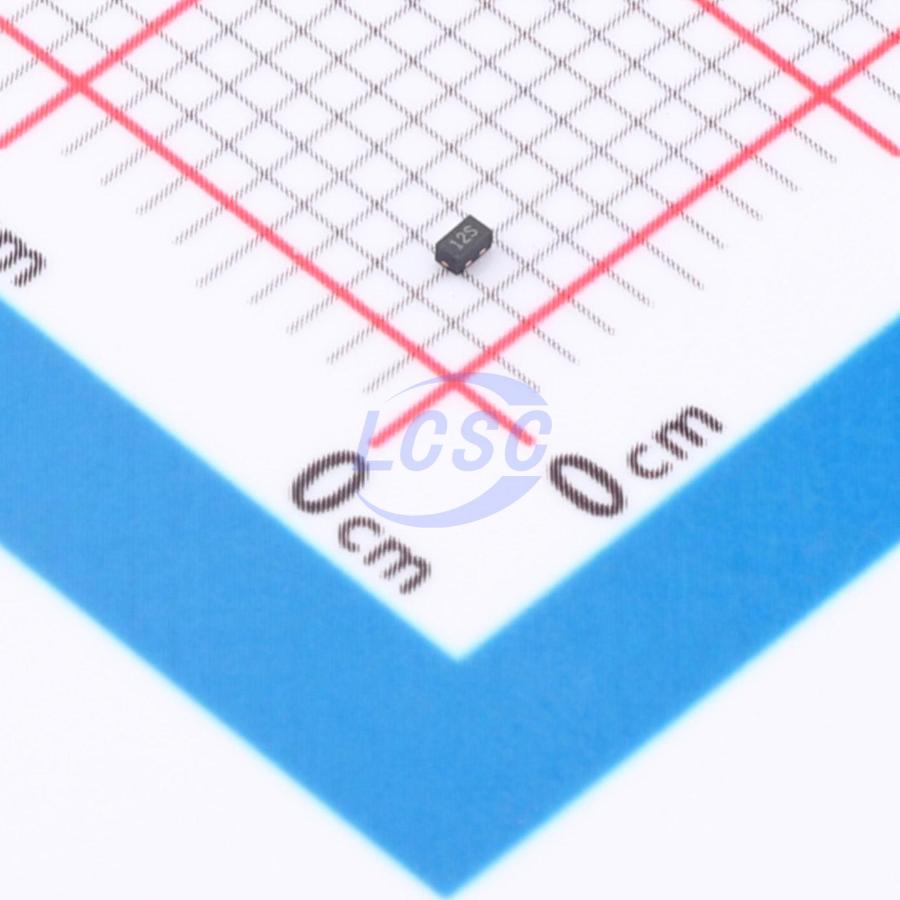

TPGC12CPG
22V 18A@60ns 400W@8/20us 13V Bidirectional 12V DFN1006-2L TVS Diodes
DFN1006-2LRoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPGC12CPG
- Store part #
- C53340948
- Package / case
- DFN1006-2L
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,905 in stock
#C53340948
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.65 | ₹63.25 |
| 50+ | ₹9.99 | ₹499.50 |
| 150+ | ₹8.65 | ₹1,297.50 |
| 500+ | ₹7.66 | ₹3,830.00 |
| 2,500+ | ₹6.85 | ₹17,125.00 |
| 5,000+ | ₹6.46 | ₹32,300.00 |
5 × ₹12.65
₹63.25
excl. GST
₹74.63 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
TPGC12CPG
₹63.25 for 5 + GST
Specifications
- Clamping Voltage
- 22V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 18A@60ns
- Peak Pulse Power Dissipation (Ppp)
- 400W@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 13V
- type
- ESD
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 200nA
- Reverse Stand-Off Voltage (Vrwm)
- 12V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.006 g
Overview
Applications
- Mobile phones & accessories
- Personal digital assistants
- Laptops & handheld devices
- Portable instruments
- Peripherals
Key features
- Low operating voltage: 12V
- Ultra-low capacitance: 0.35pF (typical)
- Ultra-low leakage: nanoamp-level
- Low clamping voltage
- IEC 61000-4-2 (ESD) immunity test
- Air discharge: ±30kV
- Contact discharge: ±30kV
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- 2-pin lead-free package
- Lead-free devices
- Response time typically < 1 ns
- Package: DFN1006-2 (0402)
- Terminal plating: Matte tin
- Case material: "Green" molding compound
- IEC 61000-4-2 (ESD) immunity test
