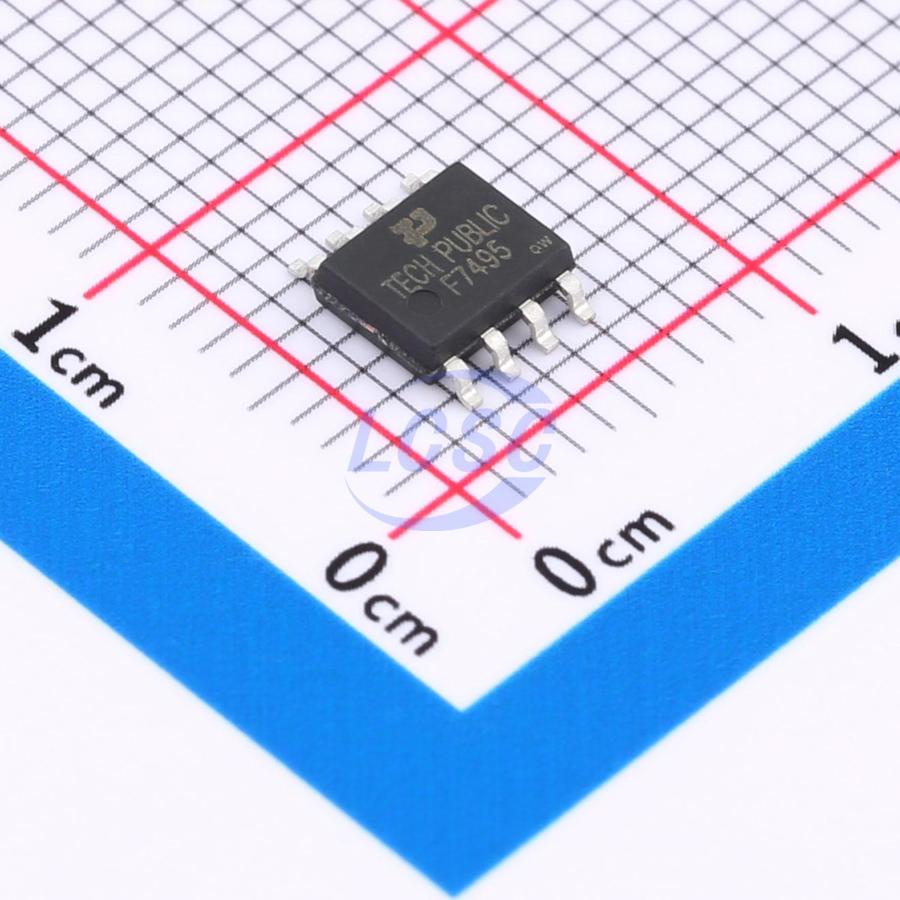

TPIRF7495TRPBF
N-Channel 100V 8A 3.5W Surface Mount SOP-8
SOP-8RoHSActive
MOSFET N-CH 100V 8A SOP-8
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPIRF7495TRPBF
- Store part #
- C42437035
- Package / case
- SOP-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,180 in stock
#C42437035
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹44.88 | ₹224.40 |
| 50+ | ₹35.24 | ₹1,762.00 |
| 150+ | ₹31.12 | ₹4,668.00 |
| 500+ | ₹25.96 | ₹12,980.00 |
| 3,000+ | ₹23.66 | ₹70,980.00 |
| 6,000+ | ₹22.28 | ₹1,33,680.00 |
5 × ₹44.88
₹224.40
excl. GST
₹264.79 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPIRF7495TRPBF
₹224.40 for 5 + GST
Specifications
- Drain to Source Voltage
- 100V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 8A
- Pd - Power Dissipation
- 3.5W
- RDS(on)
- 24mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 78nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.225 g
Overview
Applications
- LED Backlighting
- Synchronous Rectifiers for SMPS
- Power management
- PWM Application
Key features
- Drain-source voltage (VDS) 100V
- Drain current (IDS) (at VGS = 10V) 8A
- On-resistance RDS(ON) (at VGS = 10V) ≤ 24mΩ
