TECH PUBLICDatasheet (PDF)

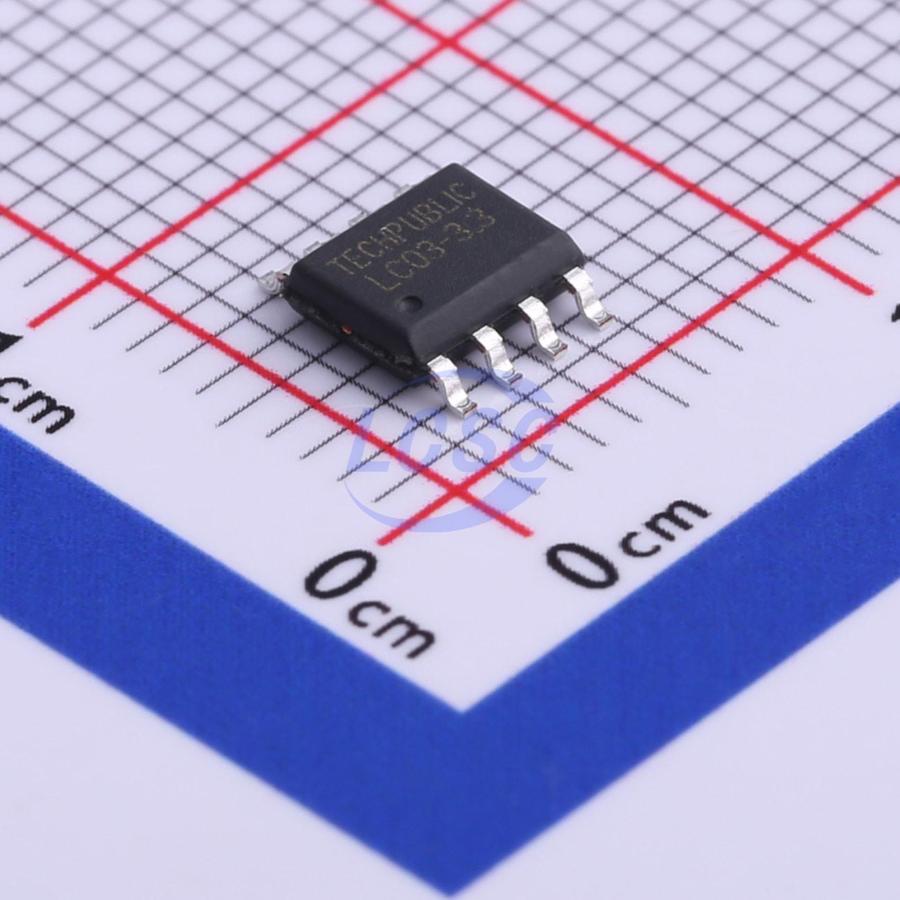

TPLC03-3.3LC
25VC Clamp ESD DIODE SO-8
SO-8RoHSActive
ESD DIODE 3.3VWM 25VC SO-8
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPLC03-3.3LC
- Store part #
- C521934
- Package / case
- SO-8
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,897 in stock
#C521934
Stock & price checked 15 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹84.70 | ₹84.70 |
| 10+ | ₹69.25 | ₹692.50 |
| 30+ | ₹61.40 | ₹1,842.00 |
| 100+ | ₹53.78 | ₹5,378.00 |
| 500+ | ₹47.03 | ₹23,515.00 |
| 1,000+ | ₹44.64 | ₹44,640.00 |
1 × ₹84.70
₹84.70
excl. GST
₹99.95 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TPLC03-3.3LC
₹84.70 for 1 + GST
Specifications
- Clamping Voltage
- 25V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 55A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 1.5kW@8/20us
- Voltage - Breakdown
- 3.5V
- Number of Channels
- 2
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 500nA
- Reverse Stand-Off Voltage (Vrwm)
- 3.3V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.4 g
Overview
Applications
- T1/E1 Line Cards
- T3/E3 and DS3 Interfaces
- STS - 1 Interfaces
- 10/100/1000 BaseT Ethernet
- Set Top Box
- ISDN Interfaces
- Low Voltage Interfaces
Key features
- Low capacitance for high speed interfaces
- Ultra low leakage: nA level
- Low operating voltage: 3.3V
- Ultra low clamping voltage
- Protects two lines in common and differential mode
- JEDEC SO - 8 package
- Complies with following standards:
- IEC 61000 - 4 - 2 (ESD) immunity test Air discharge: ±30 kV Contact discharge: ±30 kV
- IEC61000 - 4 - 5 (Lightning) 55A (8/20 μs)
- RoHS Compliant
