TECH PUBLIC

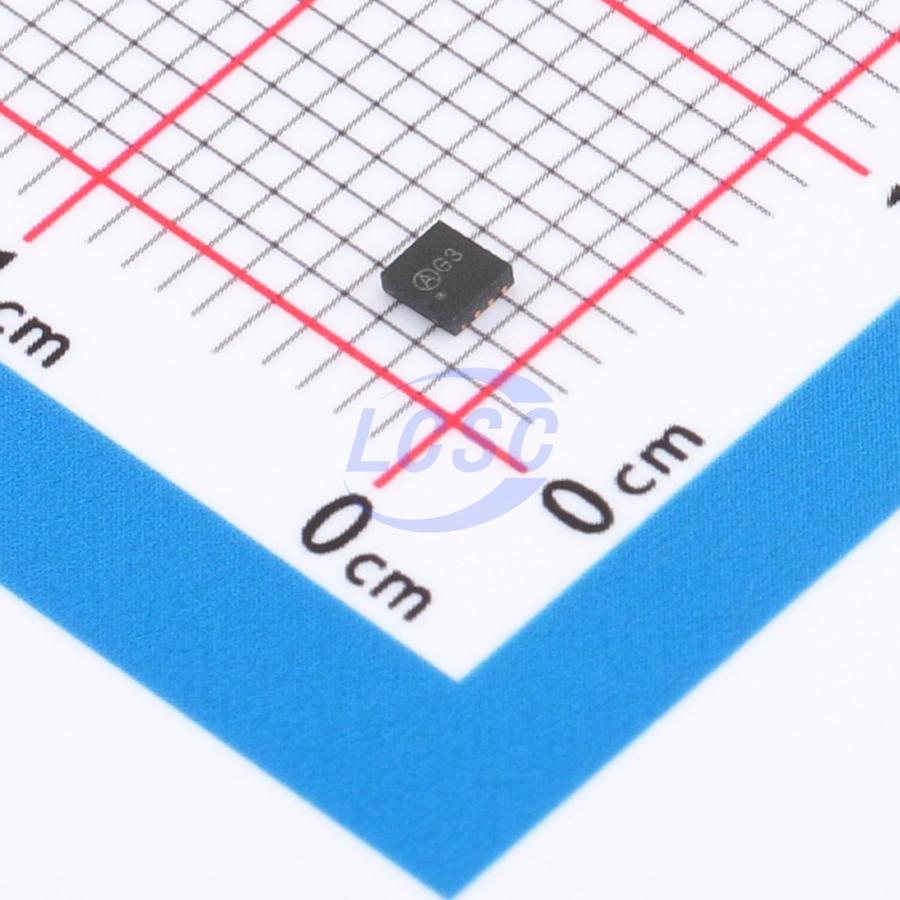

TPLTVS2018H12T5G

28V 160A@8/20us 5kW@8/20us 13.8V Unidirectional 13.5V DFN-6(1.8x2) TVS Diodes

DFN-6(1.8x2)RoHSActive

Manufacturer: TECH PUBLIC
Manufacturer part #: TPLTVS2018H12T5G
Store part #: C52145964
Package / case: DFN-6(1.8x2)
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,750 in stock

#C52145964

Stock & price checked 15 days ago

Quantity	Unit price	Pack price
5+	₹27.31	₹136.55
50+	₹21.35	₹1,067.50
150+	₹18.81	₹2,821.50
500+	₹15.62	₹7,810.00
3,000+	₹14.21	₹42,630.00
6,000+	₹13.35	₹80,100.00

Quantity (min 5, multiples of 5)

5 × ₹27.31

₹136.55

excl. GST

₹161.13 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPLTVS2018H12T5G

₹136.55 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 28V
Operating Temperature: -55℃~+125℃
Peak Pulse Current (Ipp): 160A@8/20us
Peak Pulse Power Dissipation (Ppp): 5kW@8/20us
Number of Channels: 1
Voltage - Breakdown: 13.8V
type: TVS
Polarity: Unidirectional
Reverse Leakage Current (Ir): 1uA
Reverse Stand-Off Voltage (Vrwm): 13.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.022 g

Overview

Applications

Mobile phones and accessories
Personal digital assistants
Laptops and handheld devices
Portable instruments
USB 2.0 fast charging VBUS circuit protection

Key features

Low operating voltage: 13.5V
Ultra-low leakage current: nA-level
Low clamping voltage
IEC 61000-4-2 (ESD) immunity test, air discharge: ±30kV
IEC 61000-4-2 (ESD) immunity test, contact discharge: ±30kV
IEC 61000-4-4 (EFT) 40A (5/50ns)
IEC 61000-4-5 (Surge) 160A (8/20μs)
6-pin leadless package
Lead-free devices
Typical response time < 1 ns
