TECH PUBLICDatasheet (PDF)

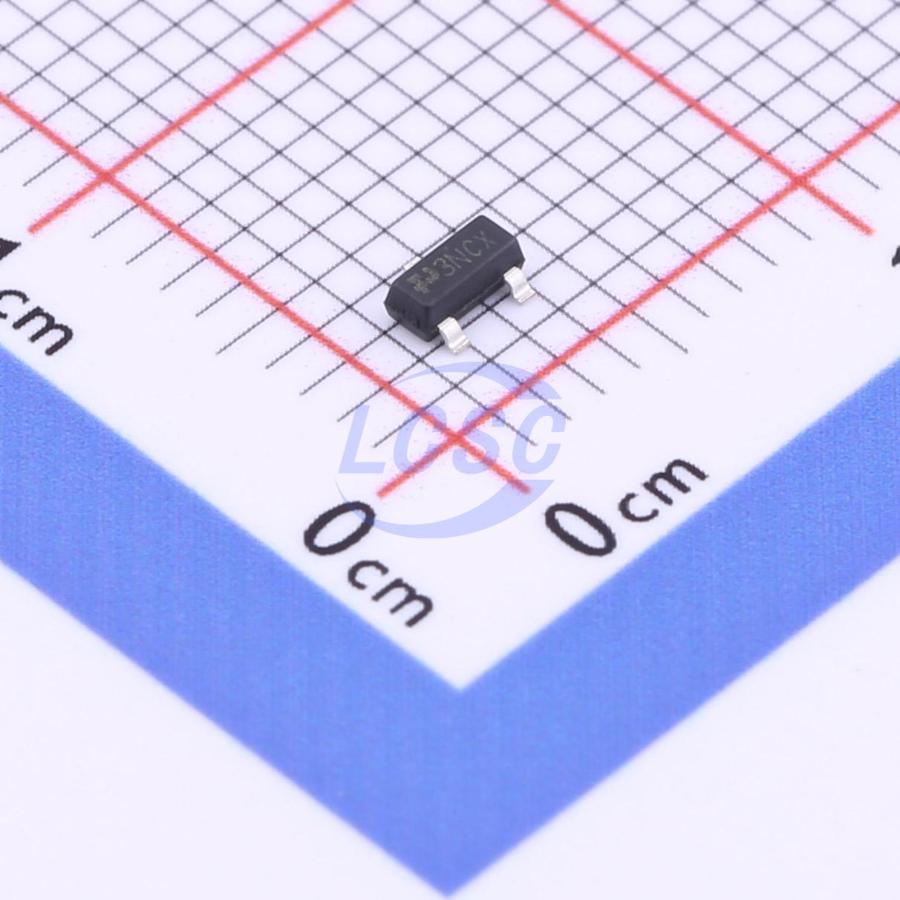

TPM1003NS3
N-Channel 100V 3.5A 1.5W Surface Mount SOT-23
SOT-23RoHSActive
MOSFET N-CH 100V 3.5A SOT-23
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPM1003NS3
- Store part #
- C5122049
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,615 in stock
#C5122049
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.73 | ₹78.65 |
| 50+ | ₹12.59 | ₹629.50 |
| 150+ | ₹11.03 | ₹1,654.50 |
| 500+ | ₹9.86 | ₹4,930.00 |
| 3,000+ | ₹7.86 | ₹23,580.00 |
| 6,000+ | ₹7.38 | ₹44,280.00 |
5 × ₹15.73
₹78.65
excl. GST
₹92.81 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPM1003NS3
₹78.65 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 24pF
- Ciss-Input Capacitance
- 650pF
- Pd - Power Dissipation
- 1.5W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 3.5A
- Reverse Transfer Capacitance (Crss)
- 20pF
- RDS(on)
- 96mΩ@10V;140mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 20nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.039 g
Overview
Applications
- Load/Power Switching
- Interfacing Switching
- Battery Management for Ultra Small Portable
- Logic Level Shift
Key features
- VDS = 100V, ID = 3.5A
- RDS(ON) < 130mΩ @ VGS = 10V (96mΩ Typ)
- RDS(ON) < 180mΩ @ VGS = 4.5V (140mΩ Typ)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SI2392ADS#C5122043TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 1,965 | ₹13.85 · 1,965 in stock | View |
 | ZVN3310FTA#C5122065TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 10,060 | ₹10.99 · 10,060 in stock | View |
 | TPM1003NS3-1#C5122050TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,865 | ₹14.37 · 2,865 in stock | View |
 | FDN8601-TP#C52205089TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 1,990 | ₹13.27 · 1,990 in stock | View |
 | AOSS62934#C52205204TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,470 | ₹13.36 · 2,470 in stock | View |
