TECH PUBLICDatasheet (PDF)

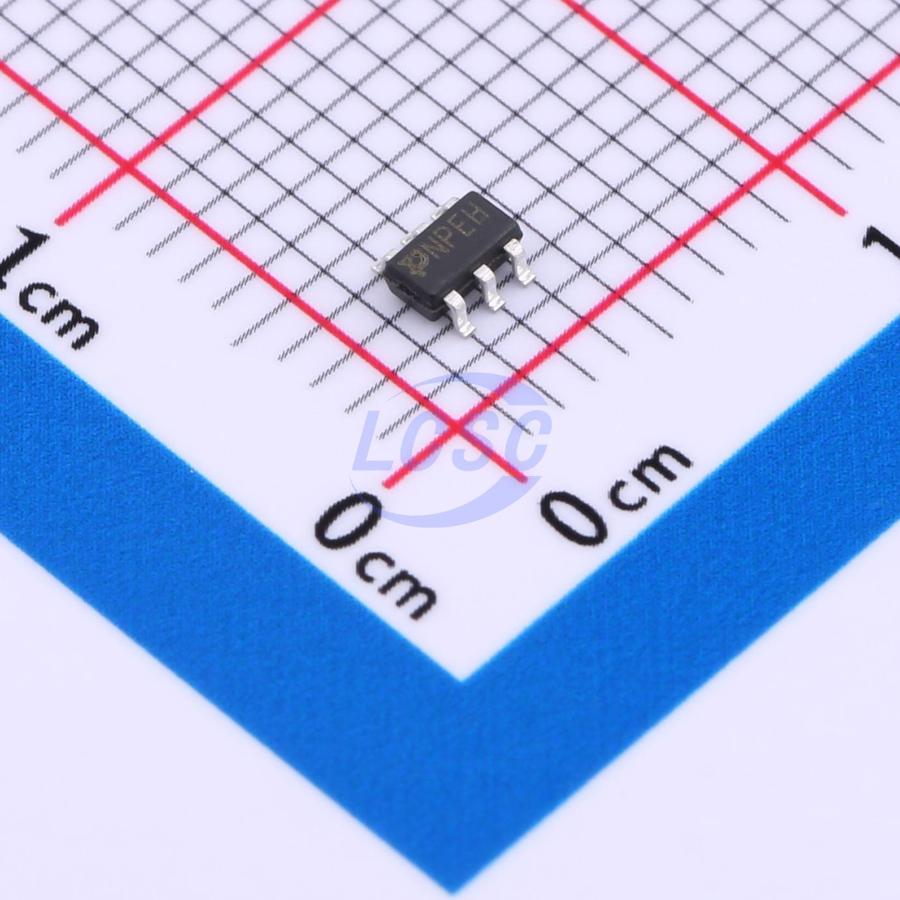

TPM20NP3LS6
20V 1.14W Surface Mount SOT-23-6
SOT-23-6RoHSActive
MOSFET 20V SOT-23-6
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPM20NP3LS6
- Store part #
- C5182060
- Package / case
- SOT-23-6
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,010 in stock
#C5182060
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.05 | ₹115.25 |
| 50+ | ₹18.65 | ₹932.50 |
| 150+ | ₹16.78 | ₹2,517.00 |
| 500+ | ₹14.43 | ₹7,215.00 |
| 3,000+ | ₹11.43 | ₹34,290.00 |
| 6,000+ | ₹10.81 | ₹64,860.00 |
5 × ₹23.05
₹115.25
excl. GST
₹136.00 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPM20NP3LS6
₹115.25 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 90pF
- Ciss-Input Capacitance
- 375pF
- Pd - Power Dissipation
- 1.14W
- Drain to Source Voltage
- 20V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 3.5A;2.8A
- Reverse Transfer Capacitance (Crss)
- 60pF
- RDS(on)
- 100mΩ@2.5V
- Number
- 1 N-Channel + 1 P-Channel
- Gate Charge(Qg)
- 2.9nC
- Vgs
- ±12V
- Gate Threshold Voltage (Vgs(th))
- 1.2V
- Type
- N-Channel + P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.049 g
Overview
Applications
- DC-DC Converter
- Load Switch
- Power Management
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPM20NP3LS6-1#C5182061TECH PUBLIC · SOT-23-6 | TECH PUBLIC | SOT-23-6 | 1,430 | ₹9.66 · 1,430 in stock | View |
 | AO6604#C5182068TECH PUBLIC · SOT-23-6 | TECH PUBLIC | SOT-23-6 | 2,665 | ₹18.92 · 2,665 in stock | View |
 | TPM20NP3LS6-2#C5182062TECH PUBLIC · SOT-23-6 | TECH PUBLIC | SOT-23-6 | 940 | ₹9.66 · 940 in stock | View |
 | FDC6327C#C5182064TECH PUBLIC · SOT-23-6 | TECH PUBLIC | SOT-23-6 | 1,330 | ₹17.52 · 1,330 in stock | View |
 | SI3585CDV#C5182066TECH PUBLIC · SOT-23-6 | TECH PUBLIC | SOT-23-6 | 510 | ₹16.86 · 510 in stock | View |
