TECH PUBLICDatasheet (PDF)

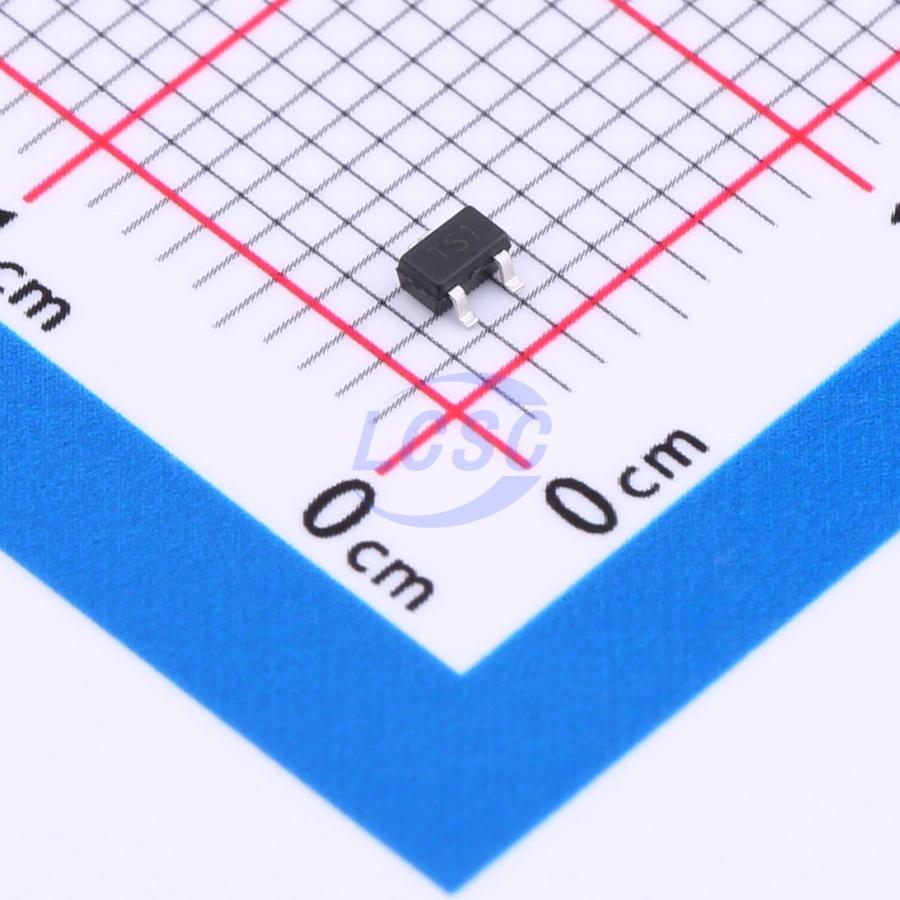

TPM2101PLC3
20V 1.4A 0.29W Surface Mount SOT-323
SOT-323RoHSActive
MOSFET 20V 1.4A SOT-323
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPM2101PLC3
- Store part #
- C5182079
- Package / case
- SOT-323
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,010 in stock
#C5182079
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹3.15 | ₹31.50 |
| 100+ | ₹3.07 | ₹307.00 |
| 300+ | ₹3.02 | ₹906.00 |
| 1,000+ | ₹2.96 | ₹2,960.00 |
10 × ₹3.15
₹31.50
excl. GST
₹37.17 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPM2101PLC3
₹31.50 for 10 + GST
Specifications
- Output Capacitance(Coss)
- 120pF
- Ciss-Input Capacitance
- 640pF
- Pd - Power Dissipation
- 290mW
- Operating Temperature
- -40℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 1.4A
- Reverse Transfer Capacitance (Crss)
- 82pF
- RDS(on)
- 140mΩ@2.5V
- Number
- 1 P-Channel
- Vgs
- ±8V
- Gate Threshold Voltage (Vgs(th))
- 700mV
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.039 g
Overview
This MOSFET is designed to meet the stringent requirements of automotive applications. It is AEC-Q101 qualified with PPAP support, making it ideal for: Body control electronics Power management functions DC-DC converters
Applications
- Load/Power Switching
- Interfacing
- Switching
- Logic Level Shift
Key features
- 100% unclamped inductive switching – ensures more reliable and robust applications
- Low on-resistance – minimizes power loss
- Low gate charge – minimizes switching loss
- Small, low-profile package – improves power density
- Fully lead-free and RoHS compliant
- Halogen- and antimony-free, "green" device
- AEC-Q101 high-reliability qualified
- PPAP capable
