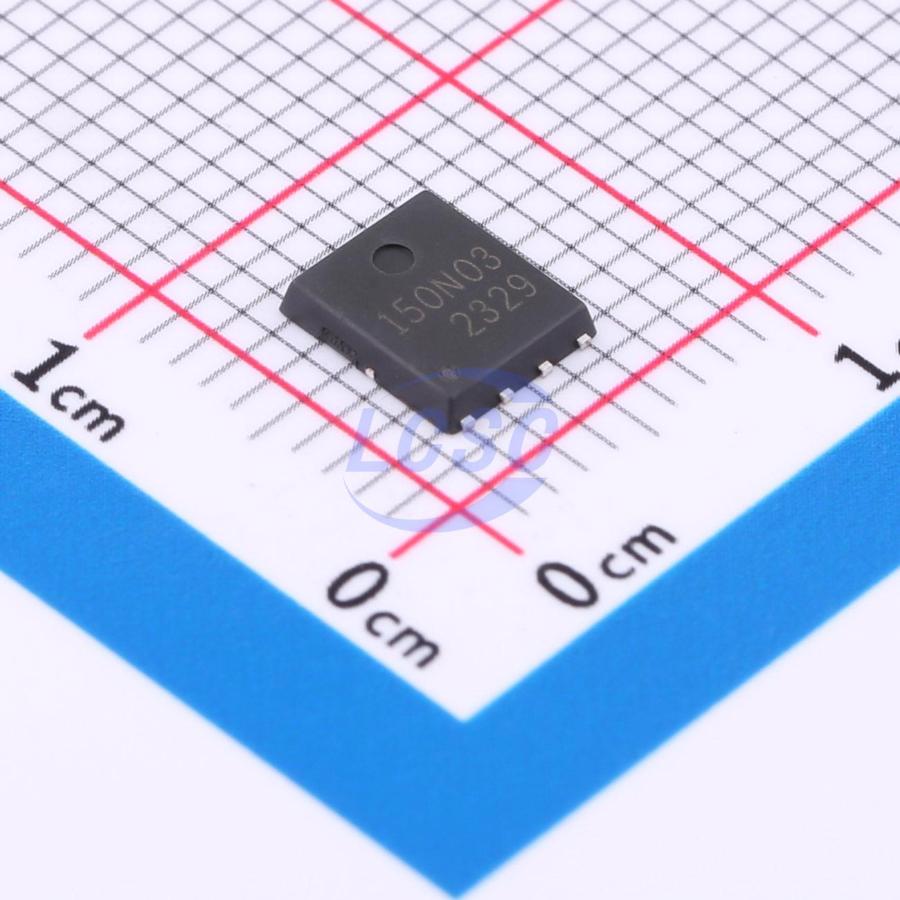

TPM30150ND56
30V 150A 75W Surface Mount PDFN-8L(5x6)
PDFN-8L(5x6)RoHSActive
MOSFET 30V 150A PDFN-8L(5x6)
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPM30150ND56
- Store part #
- C19268166
- Package / case
- PDFN-8L(5x6)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
975 in stock
#C19268166
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹55.18 | ₹275.90 |
| 50+ | ₹44.11 | ₹2,205.50 |
| 150+ | ₹39.54 | ₹5,931.00 |
| 500+ | ₹33.68 | ₹16,840.00 |
| 2,500+ | ₹31.08 | ₹77,700.00 |
| 5,000+ | ₹29.33 | ₹1,46,650.00 |
5 × ₹55.18
₹275.90
excl. GST
₹325.56 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
TPM30150ND56
₹275.90 for 5 + GST
Specifications
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 150A
- Ciss-Input Capacitance
- 5.93nF
- Pd - Power Dissipation
- 75W
- Reverse Transfer Capacitance (Crss)
- 220pF
- RDS(on)
- 3.3mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 58nC@15V
- Gate Threshold Voltage (Vgs(th))
- 3V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.954 g
Overview
Applications
- Load/Power switch
- Interfacing, logic switching
- Battery management for ultra protable electronics
Key features
- Drain-Source Voltage (VDS) = 30V
- Drain Current (ID) = 150A
- On-Resistance (RDS(ON)) ≤ 2.5mΩ at Gate-Source Voltage (VGS) = 10V
- On-Resistance (RDS(ON)) ≤ 3.3mΩ at Gate-Source Voltage (VGS) = 4.5V
- PowerDFN 5x6 Package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NTMFS4C03NT1G#C19268169TECH PUBLIC · PDFN-8L(5x6) | TECH PUBLIC | PDFN-8L(5x6) | 3,715 | ₹35.26 · 3,715 in stock | View |
 | AON6312#C19829440TECH PUBLIC · DFN-8(5x6) | TECH PUBLIC | DFN-8(5x6) | 818 | ₹51.70 · 818 in stock | View |
 | BSC025N03MSG-TP#C52817069TECH PUBLIC · PDFN-8(5x6) | TECH PUBLIC | PDFN-8(5x6) | 966 | ₹53.63 · 966 in stock | View |
 | BSC0902NS-TP#C52817072TECH PUBLIC · PDFN-8(5x6) | TECH PUBLIC | PDFN-8(5x6) | 1,980 | ₹49.15 · 1,980 in stock | View |
 | CSD17501Q5A-TP#C52817079TECH PUBLIC · PDFN-8(5x6) | TECH PUBLIC | PDFN-8(5x6) | 3,149 | ₹70.08 · 3,149 in stock | View |
