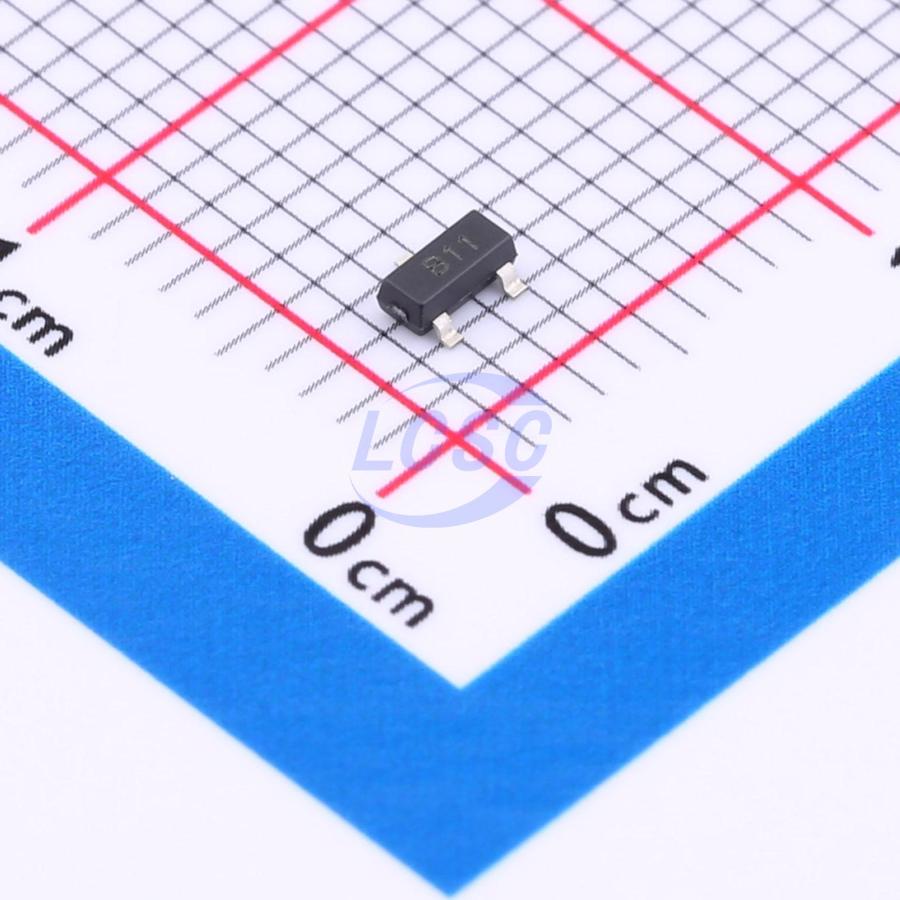

TPM30V3PS3
30V 3A Surface Mount SOT-23
SOT-23RoHSActive
MOSFET 30V 3A SOT-23
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPM30V3PS3
- Store part #
- C5182050
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,055 in stock
#C5182050
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹6.05 | ₹30.25 |
| 50+ | ₹5.90 | ₹295.00 |
| 150+ | ₹5.79 | ₹868.50 |
| 500+ | ₹5.70 | ₹2,850.00 |
5 × ₹6.05
₹30.25
excl. GST
₹35.70 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPM30V3PS3
₹30.25 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 126pF
- Ciss-Input Capacitance
- 565pF
- Pd - Power Dissipation
- 1.25W
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 3A
- Reverse Transfer Capacitance (Crss)
- 75pF
- RDS(on)
- 60mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 10nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.042 g
Overview
Applications
- Load/Power Switching
- Interfacing
- Switching
- Logic Level Shift
Key features
- Halogen-free per IEC 61249-2-21
- Low threshold: 2 V (typical)
- Low input capacitance: 25 pF
- Fast switching speed: 25 ns
- Low input and output leakage current
- Trench power MOSFET
- RoHS compliant per directive 2002/95/EC
- Low offset voltage
- Low-voltage operation
- Easy drive without buffer
- High-speed circuits
- Low error voltage
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SI2307CDS#C5182047TECH PUBLIC · SOT-23-3 | TECH PUBLIC | SOT-23-3 | 2,910 | ₹11.19 · 2,910 in stock | View |
 | IRLML5203TRPBF#C5182049TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 6,490 | ₹9.17 · 6,490 in stock | View |
 | DMP3160L#C5182051TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,500 | ₹9.75 · 2,500 in stock | View |
 | DMG2307L#C5182052TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,910 | ₹10.23 · 2,910 in stock | View |
 | NXV90EPR-TP#C54194959TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,980 | ₹7.96 · 2,980 in stock | View |
