TECH PUBLICDatasheet (PDF)

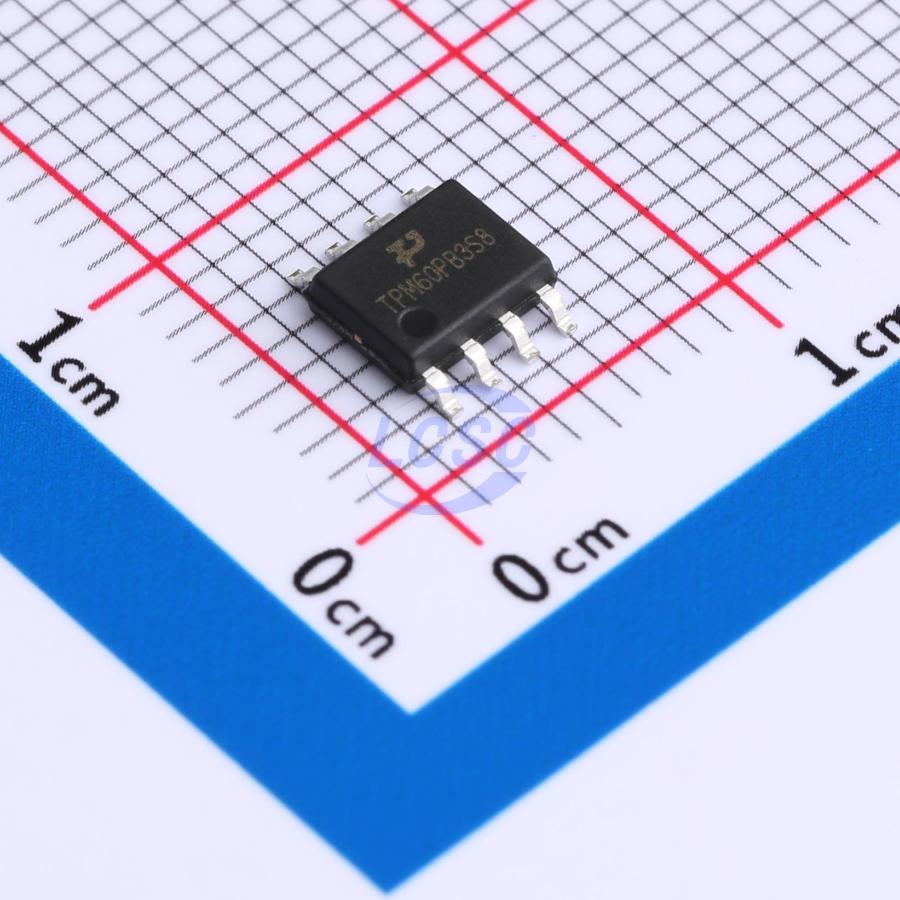

TPM60PB3S8
P-Channel 60V 3.8A 2.3W Surface Mount SOP-8
SOP-8RoHSActive
MOSFET P-CH ARR 60V 3.8A SOP-8
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPM60PB3S8
- Store part #
- C5197318
- Package / case
- SOP-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,701 in stock
#C5197318
Stock & price checked 14 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹74.42 | ₹74.42 |
| 10+ | ₹59.19 | ₹591.90 |
| 30+ | ₹52.67 | ₹1,580.10 |
| 100+ | ₹44.40 | ₹4,440.00 |
| 500+ | ₹36.34 | ₹18,170.00 |
| 1,000+ | ₹34.17 | ₹34,170.00 |
1 × ₹74.42
₹74.42
excl. GST
₹87.82 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPM60PB3S8
₹74.42 for 1 + GST
Specifications
- Drain to Source Voltage
- 60V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 70pF
- Current - Continuous Drain(Id)
- 3.8A
- Ciss-Input Capacitance
- 976pF
- Pd - Power Dissipation
- 2.3W
- Reverse Transfer Capacitance (Crss)
- 30pF
- RDS(on)
- 145mΩ@4.5V
- Number
- 2 P-Channel
- Gate Charge(Qg)
- 24nC
- Gate Threshold Voltage (Vgs(th))
- 1V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.24 g
Overview
HP15N10 combines advanced trench MOSFET technology with a low-resistance package to deliver ultra-low drain-to-source on-resistance. This device is ideal for power switching applications and LED backlighting.
Applications
- Load/Power Switching
- Interfacing
- Switching
- Logic Level Shift
Key features
- Drain-source voltage VDS = -60V, drain current ID = -3.8A
- RDS(ON) < -98mΩ at VGS = 10V
- RDS(ON) < -145mΩ at VGS = 4.5V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ZXMP6A18DN8TA#C5197321TECH PUBLIC · SOP-8 | TECH PUBLIC | SOP-8 | 3,000 | ₹59.10 · 3,000 in stock | View |
 | FDS9958#C5197324TECH PUBLIC · SOP-8 | TECH PUBLIC | SOP-8 | 4,176 | ₹68.68 · 4,176 in stock | View |
 | TPM60PB3S8-1#C5197319TECH PUBLIC · SOP-8 | TECH PUBLIC | SOP-8 | 485 | ₹68.27 · 485 in stock | View |
 | TPM60PB3S8-2#C5197320TECH PUBLIC · SOP-8 | TECH PUBLIC | SOP-8 | 496 | ₹68.27 · 496 in stock | View |
 | IRF7342TRPBF#C5197322TECH PUBLIC · SOP-8 | TECH PUBLIC | SOP-8 | 3,734 | ₹68.37 · 3,734 in stock | View |
