TECH PUBLICDatasheet (PDF)

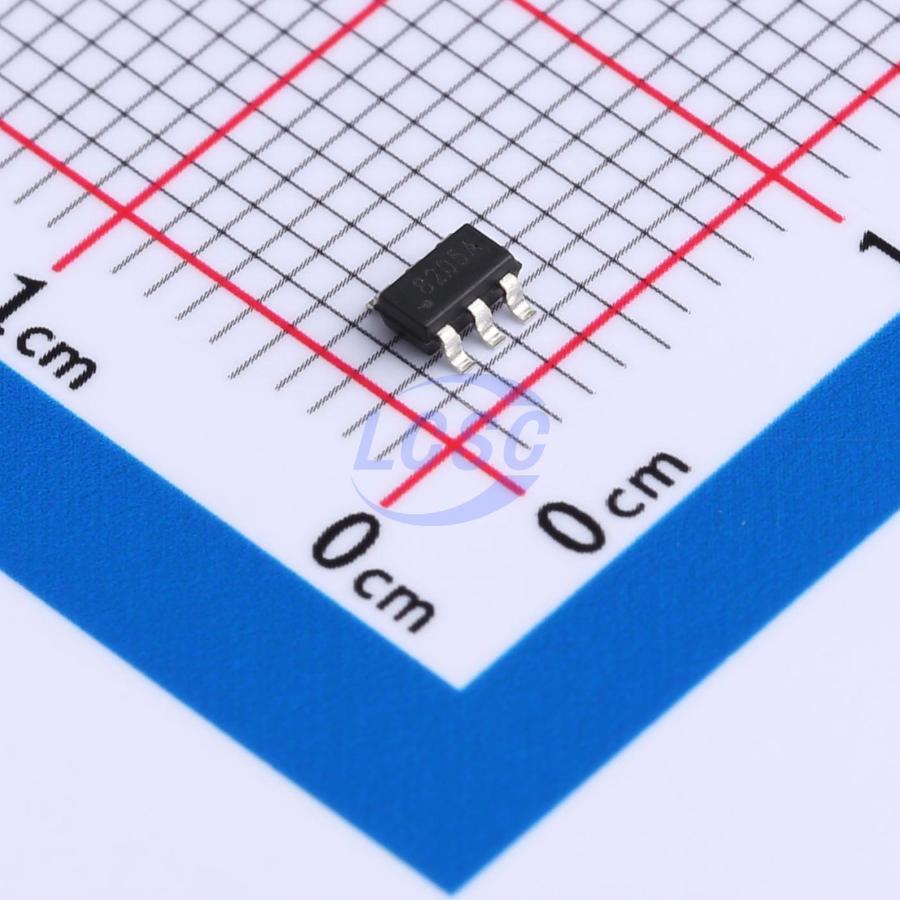

TPM8205ATS6-1
N-Channel Array 20V 6A 1.5W Surface Mount SOT-23-6
SOT-23-6RoHSActive
MOSFET N-CH ARR 20V 6A SOT-23-6
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPM8205ATS6-1
- Store part #
- C5123968
- Package / case
- SOT-23-6
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,530 in stock
#C5123968
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.68 | ₹56.80 |
| 100+ | ₹5.54 | ₹554.00 |
| 300+ | ₹5.46 | ₹1,638.00 |
| 1,000+ | ₹5.38 | ₹5,380.00 |
10 × ₹5.68
₹56.80
excl. GST
₹67.02 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPM8205ATS6-1
₹56.80 for 10 + GST
Specifications
- Output Capacitance(Coss)
- 65pF
- Ciss-Input Capacitance
- 466pF
- Pd - Power Dissipation
- 1.5W
- Drain to Source Voltage
- 20V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 6A
- Reverse Transfer Capacitance (Crss)
- 58pF
- RDS(on)
- 25mΩ@2.5V
- Number
- 2 N-Channel
- Gate Charge(Qg)
- 5.7nC
- Vgs
- ±10V
- Gate Threshold Voltage (Vgs(th))
- 500mV
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.04 g
Overview
Applications
- Synchronous rectification in DC/DC and AC/DC converters
- Isolated DC/DC converters for telecom and industrial applications
Key features
- Trench power technology
- Low on-resistance R<sub>DS(ON)</sub>
- Low gate charge
- Optimized for fast switching applications
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 8205A#C5370944TECH PUBLIC · SOT-23-6 | TECH PUBLIC | SOT-23-6 | 3,730 | ₹5.82 · 3,730 in stock | View |
 | UT8205AG-AG6#C2827644TECH PUBLIC · SOT-23-6 | TECH PUBLIC | SOT-23-6 | 2,830 | ₹7.22 · 2,830 in stock | View |
 | FS8205A#C2830320TECH PUBLIC · SOT-23-6 | TECH PUBLIC | SOT-23-6 | 32,130 | ₹6.63 · 32,130 in stock | View |
 | TPM8205ATS6#C2827645TECH PUBLIC · SOT-23-6 | TECH PUBLIC | SOT-23-6 | 1,070 | ₹8.56 · 1,070 in stock | View |
 | DMG6968UDM-TP#C48543185TECH PUBLIC · SOT-23-6 | TECH PUBLIC | SOT-23-6 | 2,150 | ₹6.05 · 2,150 in stock | View |
