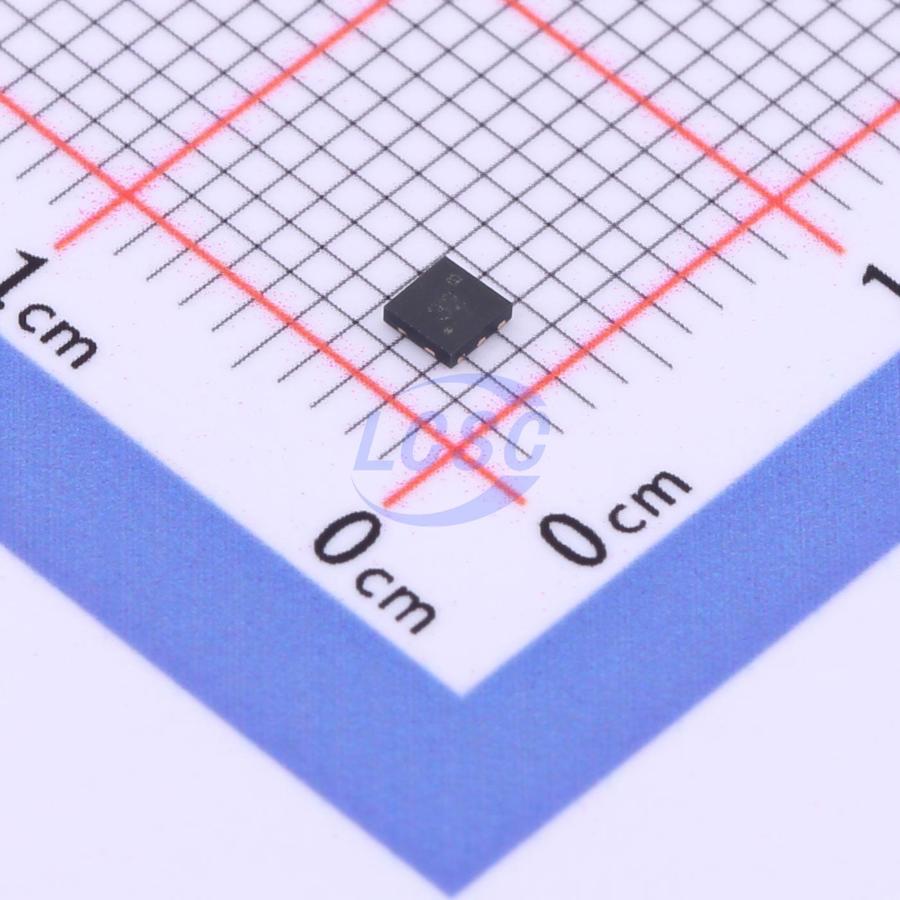

TPM9305PD6
20V 6A 2.5W Surface Mount DFN-6(2x2)
DFN-6(2x2)RoHSActive
MOSFET 20V 6A DFN-6(2x2)
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPM9305PD6
- Store part #
- C5122063
- Package / case
- DFN-6(2x2)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,570 in stock
#C5122063
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.11 | ₹65.55 |
| 50+ | ₹10.50 | ₹525.00 |
| 150+ | ₹9.19 | ₹1,378.50 |
| 500+ | ₹8.22 | ₹4,110.00 |
| 2,500+ | ₹6.55 | ₹16,375.00 |
| 4,000+ | ₹6.15 | ₹24,600.00 |
5 × ₹13.11
₹65.55
excl. GST
₹77.35 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
TPM9305PD6
₹65.55 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 290pF
- Ciss-Input Capacitance
- 740pF
- Pd - Power Dissipation
- 2.5W
- Drain to Source Voltage
- 20V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 6A
- Reverse Transfer Capacitance (Crss)
- 190pF
- RDS(on)
- 35mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 7.8nC@4.5V
- Vgs
- ±12V
- Gate Threshold Voltage (Vgs(th))
- 450mV
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.029 g
Overview
Applications
- Load/Power Switching
- Interfacing
- Switching
- Logic Level Shift
Key features
- Advanced Trench Technology
- Excellent Rps(on) and Low Gate Charge
- Lead free product is acquired
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPFDMA507P#C48639038TECH PUBLIC · DFN2X2-6L | TECH PUBLIC | DFN2X2-6L | 930 | ₹11.93 · 930 in stock | View |
 | TPFDMA507P-1#C48639039TECH PUBLIC · DFN2X2-6L | TECH PUBLIC | DFN2X2-6L | 3,990 | ₹60.62 · 3,990 in stock | View |
 | TPWPM1481#C48639042TECH PUBLIC · DFN-6L(2x2) | TECH PUBLIC | DFN-6L(2x2) | 520 | ₹10.35 · 520 in stock | View |
 | TPCSD25310Q2#C48639043TECH PUBLIC · DFN2X2-6L | TECH PUBLIC | DFN2X2-6L | 5,187 | ₹54.72 · 5,187 in stock | View |
 | TPIRLHS2242TRPBF#C48639044TECH PUBLIC · DFN-6L(2x2) | TECH PUBLIC | DFN-6L(2x2) | 980 | ₹11.83 · 980 in stock | View |
