TECH PUBLICDatasheet (PDF)

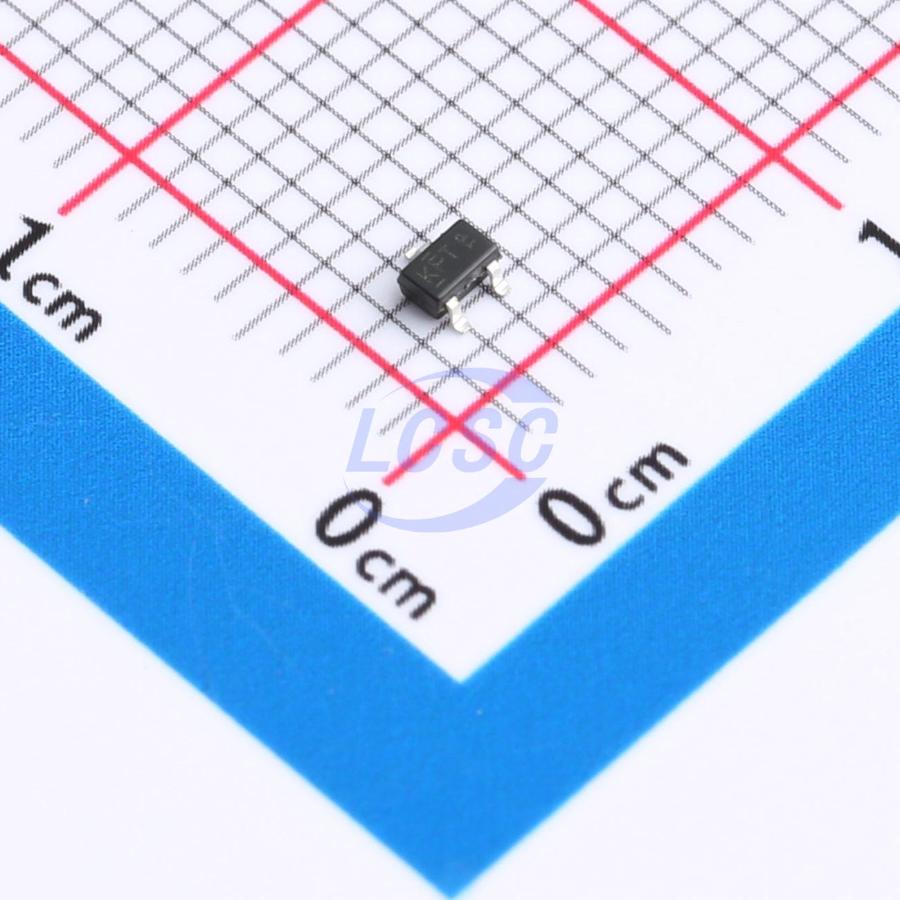

TPMF370XN
30V 800mA 360mW Surface Mount SOT-323
SOT-323RoHSActive
MOSFET 30V 800mA SOT-323
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPMF370XN
- Store part #
- C47117628
- Package / case
- SOT-323
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,390 in stock
#C47117628
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.34 | ₹73.40 |
| 100+ | ₹5.78 | ₹578.00 |
| 300+ | ₹5.00 | ₹1,500.00 |
| 3,000+ | ₹4.42 | ₹13,260.00 |
| 6,000+ | ₹3.94 | ₹23,640.00 |
| 9,000+ | ₹3.72 | ₹33,480.00 |
10 × ₹7.34
₹73.40
excl. GST
₹86.61 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPMF370XN
₹73.40 for 10 + GST
Specifications
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 800mA
- Output Capacitance(Coss)
- 36.6pF
- Ciss-Input Capacitance
- 146pF
- Pd - Power Dissipation
- 360mW
- Reverse Transfer Capacitance (Crss)
- 14.8pF
- RDS(on)
- 650mΩ@2.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 5.2nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 1.2V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.03 g
Overview
The WSD40L66DN56 employs advanced trench technology to deliver excellent RDS(ON), low gate charge, and operation at gate voltages as low as 4.5V. This device is suitable for battery protection or other switching applications. The WSD40L66DN56 complies with RoHS and green product requirements, is 100% EAS tested, and carries full functional reliability certification.
Applications
- Load/Power Switching
- Interfacing Switching
- Battery Management for Ultra Small Portable Electronics
- Logic Level Shift
Key features
- SOT323
- Marking: KFT
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SI1304BDL#C7419947TECH PUBLIC · SOT-323 | TECH PUBLIC | SOT-323 | 3,020 | ₹8.00 · 3,020 in stock | View |
 | TPM3009NEC3#C7419948TECH PUBLIC · SOT323 | TECH PUBLIC | SOT323 | 2,890 | ₹6.87 · 2,890 in stock | View |
 | BSS214NW-TP#C48543182TECH PUBLIC · SOT-323 | TECH PUBLIC | SOT-323 | 1,560 | ₹8.23 · 1,560 in stock | View |
 | NX3008NBKW-TP#C47117546TECH PUBLIC · SOT-323 | TECH PUBLIC | SOT-323 | 2,960 | ₹8.45 · 2,960 in stock | View |
 | SI1308EDL#C7603347TECH PUBLIC · SOT-323 | TECH PUBLIC | SOT-323 | 6,830 | ₹11.34 · 6,830 in stock | View |
