TECH PUBLICDatasheet (PDF)

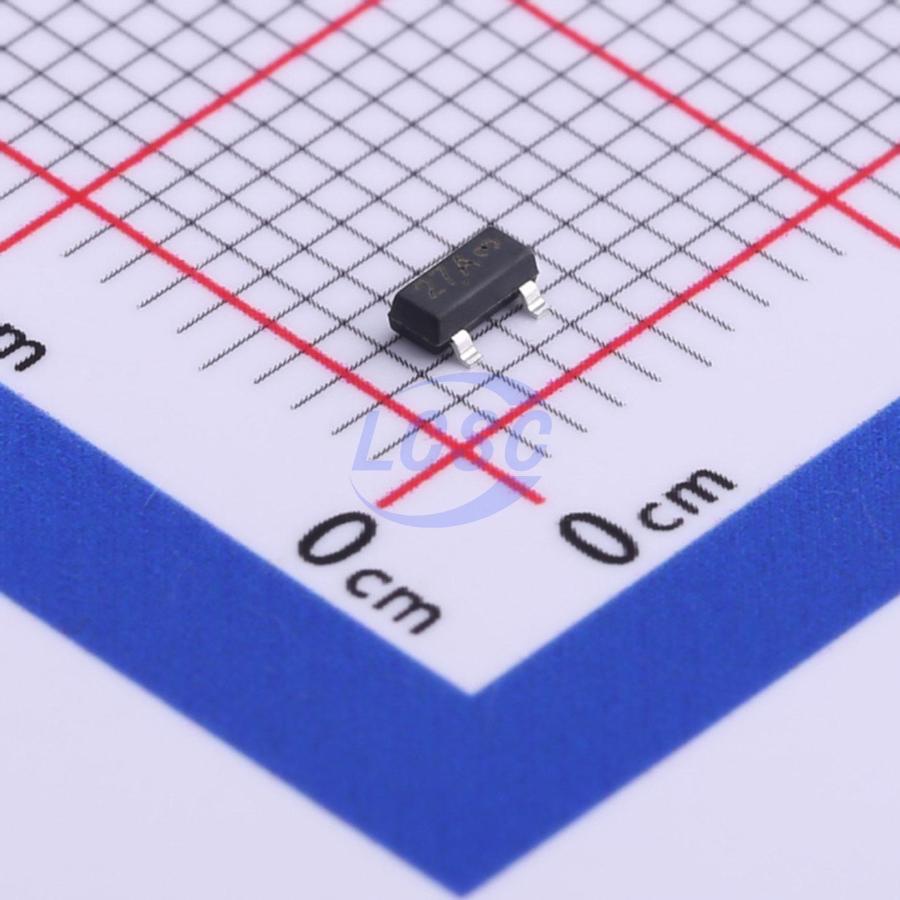

TPMMBZ27VALT1G
62VC Clamp 3A@8/20us Ipp SOT-23
SOT-23RoHSActive
24VWM 62VC SOT-23
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPMMBZ27VALT1G
- Store part #
- C558441
- Package / case
- SOT-23
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,440 in stock
#C558441
Stock & price checked 16 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹3.82 | ₹76.40 |
| 200+ | ₹3.06 | ₹612.00 |
| 600+ | ₹2.62 | ₹1,572.00 |
| 3,000+ | ₹2.13 | ₹6,390.00 |
| 9,000+ | ₹1.91 | ₹17,190.00 |
| 21,000+ | ₹1.79 | ₹37,590.00 |
20 × ₹3.82
₹76.40
excl. GST
₹90.15 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPMMBZ27VALT1G
₹76.40 for 20 + GST
Specifications
- Clamping Voltage
- 62V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 3A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 180W@8/20us
- Number of Channels
- 2
- Voltage - Breakdown
- 26V
- type
- TVS
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 24V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.057 g
Overview
Applications
- USB Power & Data Line Protection
- Monitors and Flat Panel Displays I²C Bus Protection
- Portable Instrumentation
- Set Top Box
Key features
- 150 Watts peak pulse power (tp = 8/20µs)
- Transient protection for high speed data lines to IEC 61000-4-2 (ESD) ±15KV (air), ±8KV (contact) IEC 61000-4-4 (EFT) 40A (5/50ns)
- Working voltages: 24V
- Protects one bidirectional line or two unidirectional lines
- Low operating and clamping voltages
- Solid-state silicon avalanche technology
