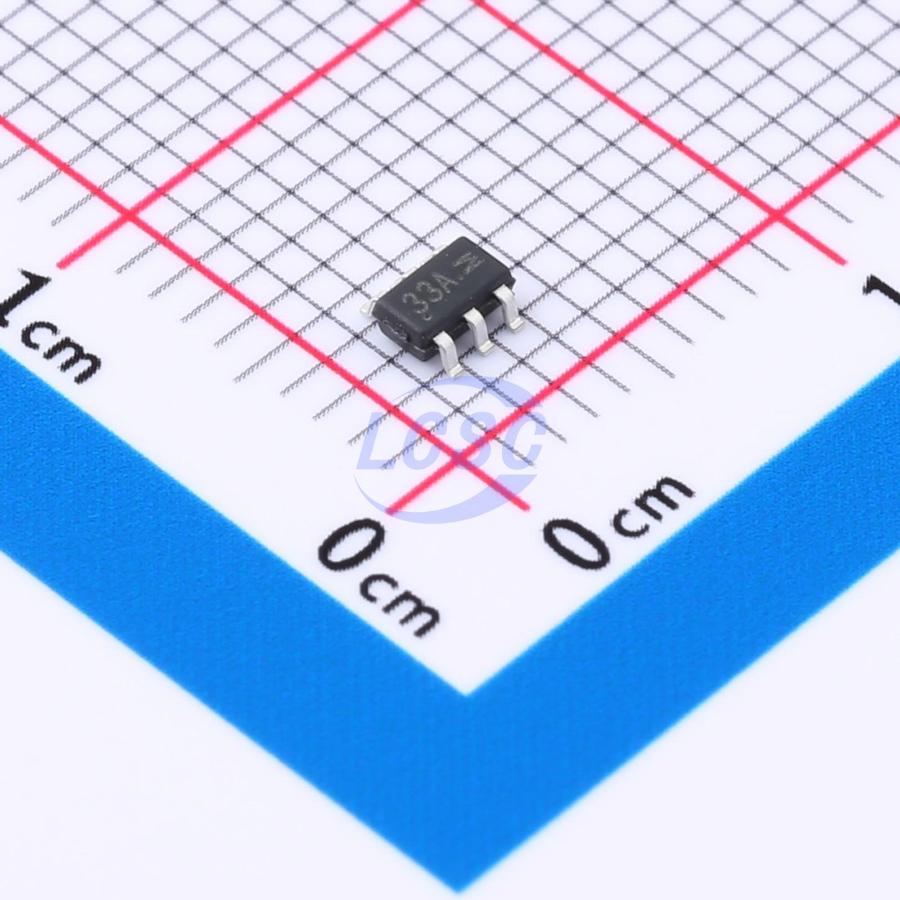

TECH PUBLIC

TPMMQA33VT1G

60VC Clamp 4A@8/20us Ipp SOT-23-6

SOT-23-6RoHSActive

33VWM 60VC SOT-23-6

Manufacturer: TECH PUBLIC
Manufacturer part #: TPMMQA33VT1G
Store part #: C5342421
Package / case: SOT-23-6
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,195 in stock

#C5342421

Stock & price checked 12 days ago

Quantity	Unit price	Pack price
5+	₹23.40	₹117.00
50+	₹18.47	₹923.50
150+	₹16.35	₹2,452.50
500+	₹13.71	₹6,855.00
3,000+	₹11.63	₹34,890.00
6,000+	₹10.91	₹65,460.00

Quantity (min 5, multiples of 5)

5 × ₹23.40

₹117.00

excl. GST

₹138.06 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPMMQA33VT1G

₹117.00 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 60V
Operating Temperature: -55℃~+125℃
Peak Pulse Current (Ipp): 4A@8/20us
Peak Pulse Power Dissipation (Ppp): 250W@8/20us
Number of Channels: 2
Voltage - Breakdown: 34.3V
type: ESD
Reverse Leakage Current (Ir): 100nA
Polarity: Bidirectional
Reverse Stand-Off Voltage (Vrwm): 33V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.037 g

Overview

Applications

Mobile phone handsets
Personal Digital Assistants(PDA)
Portable handheld equipment (Laptop, Palmtop computers)
Computer port, keyboard (USB1.1)

Key features

250w peak pulse power(8/20us)
Protects one bi-directional or two uni-directional lines
Ultra low leakage: nA level
Operating voltage: 33V
Low clamping voltage
Complies with following standards:
IEC 61000-4-2(ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
IEC61000-4-4 (EFT) 40A (5/50ns)
IEC61000-4-5 (Lightning) 4A (8/20μs)
RoHS Compliant
