TECH PUBLICDatasheet (PDF)

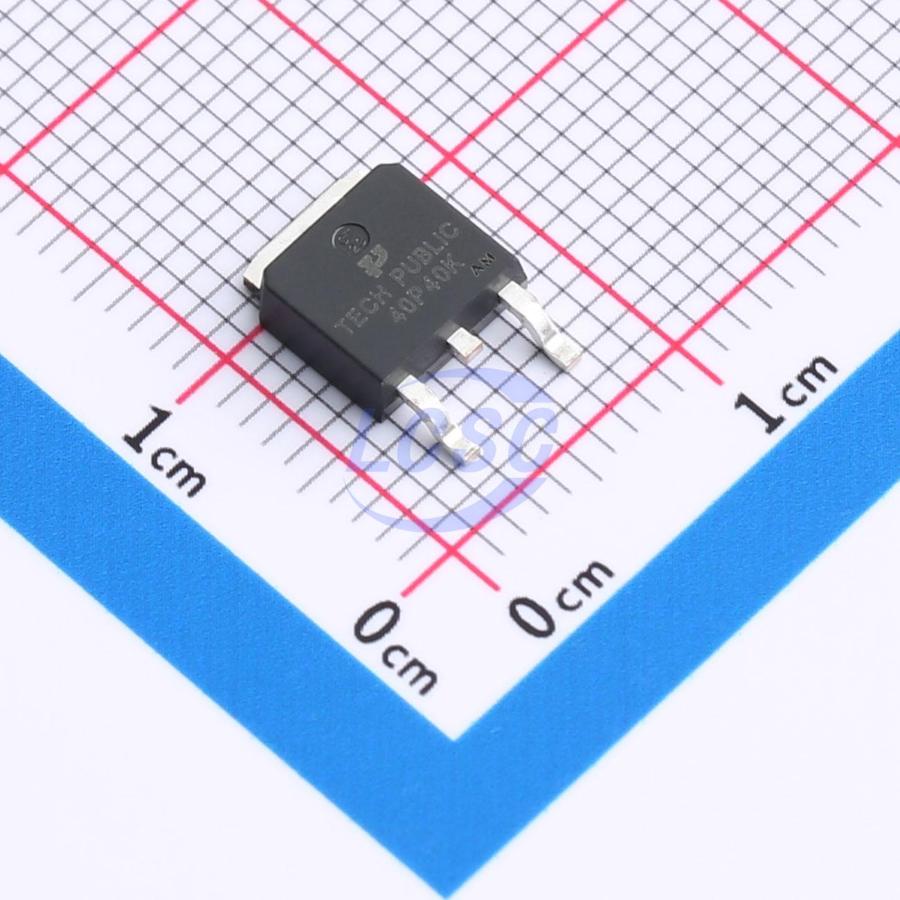

TPNCE40P40K
P-Channel 40V 40A 62W Surface Mount TO-252
TO-252RoHSActive
MOSFET P-CH 40V 40A TO-252
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPNCE40P40K
- Store part #
- C41431775
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,035 in stock
#C41431775
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹43.06 | ₹215.30 |
| 50+ | ₹33.45 | ₹1,672.50 |
| 150+ | ₹29.33 | ₹4,399.50 |
| 500+ | ₹24.18 | ₹12,090.00 |
| 2,500+ | ₹21.90 | ₹54,750.00 |
| 5,000+ | ₹20.52 | ₹1,02,600.00 |
5 × ₹43.06
₹215.30
excl. GST
₹254.05 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TPNCE40P40K
₹215.30 for 5 + GST
Specifications
- Drain to Source Voltage
- 40V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 185pF
- Current - Continuous Drain(Id)
- 40A
- Ciss-Input Capacitance
- 1.87nF
- Pd - Power Dissipation
- 62W
- Reverse Transfer Capacitance (Crss)
- 155pF
- RDS(on)
- 22mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 31.4nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.441 g
Overview
This N-channel MOSFET employs advanced SGT technology and design to deliver excellent on-resistance RDS(on) with low gate charge. It is suitable for a wide range of applications.
Applications
- Reverse Battery protection
- Load switch
- Power management
- PWM Application
Key features
- Drain-source voltage V<sub>DS</sub> = 100 V, drain current I<sub>D</sub> = 25 A, on-resistance R<sub>DS(ON)</sub> < 25 mΩ at gate-source voltage V<sub>GS</sub> = 10 V
- Low gate charge
- RoHS-compliant options available
- Advanced high cell-density trench technology for ultra-low on-resistance R<sub>DS(ON)</sub>
- Excellent package thermal dissipation
