TECH PUBLICDatasheet (PDF)

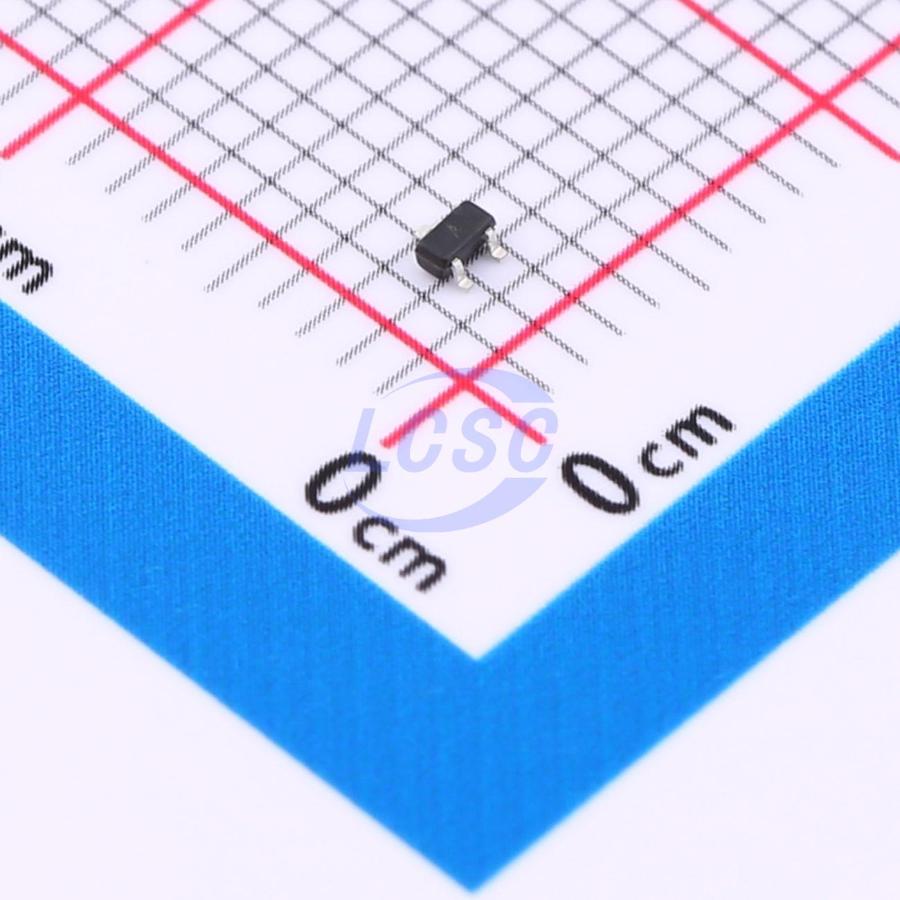

TPNTA4001NT1G
25V 900mA 270mW Surface Mount SOT-523
SOT-523RoHSActive
MOSFET 25V 900mA SOT-523
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPNTA4001NT1G
- Store part #
- C42407114
- Package / case
- SOT-523
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,980 in stock
#C42407114
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.29 | ₹52.90 |
| 100+ | ₹4.18 | ₹418.00 |
| 300+ | ₹3.63 | ₹1,089.00 |
| 3,000+ | ₹3.21 | ₹9,630.00 |
| 6,000+ | ₹2.88 | ₹17,280.00 |
| 9,000+ | ₹2.71 | ₹24,390.00 |
10 × ₹5.29
₹52.90
excl. GST
₹62.42 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPNTA4001NT1G
₹52.90 for 10 + GST
Specifications
- Configuration
- Standalone
- Drain to Source Voltage
- 25V
- Output Capacitance(Coss)
- 9pF
- Current - Continuous Drain(Id)
- 900mA
- Ciss-Input Capacitance
- 45pF
- Pd - Power Dissipation
- 270mW
- Reverse Transfer Capacitance (Crss)
- 6pF
- RDS(on)
- 250mΩ@4.5V
- Number
- 1 N-channel
- Vgs
- ±8V
- Gate Threshold Voltage (Vgs(th))
- 700mV
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.025 g
Overview
Applications
- Load/Power Switch
- Interface Switch
- Battery Management for Ultra-Compact Portable Electronics
- Logic Level Translation
Key features
- Drain-Source Voltage (VDS) = 20V
- RDS(ON) = 300mΩ (typ) at VGS = 2.5V
- RDS(ON) = 250mΩ (typ) at VGS = 4.5V
- ESD protection up to 2KV
