TECH PUBLICDatasheet (PDF)

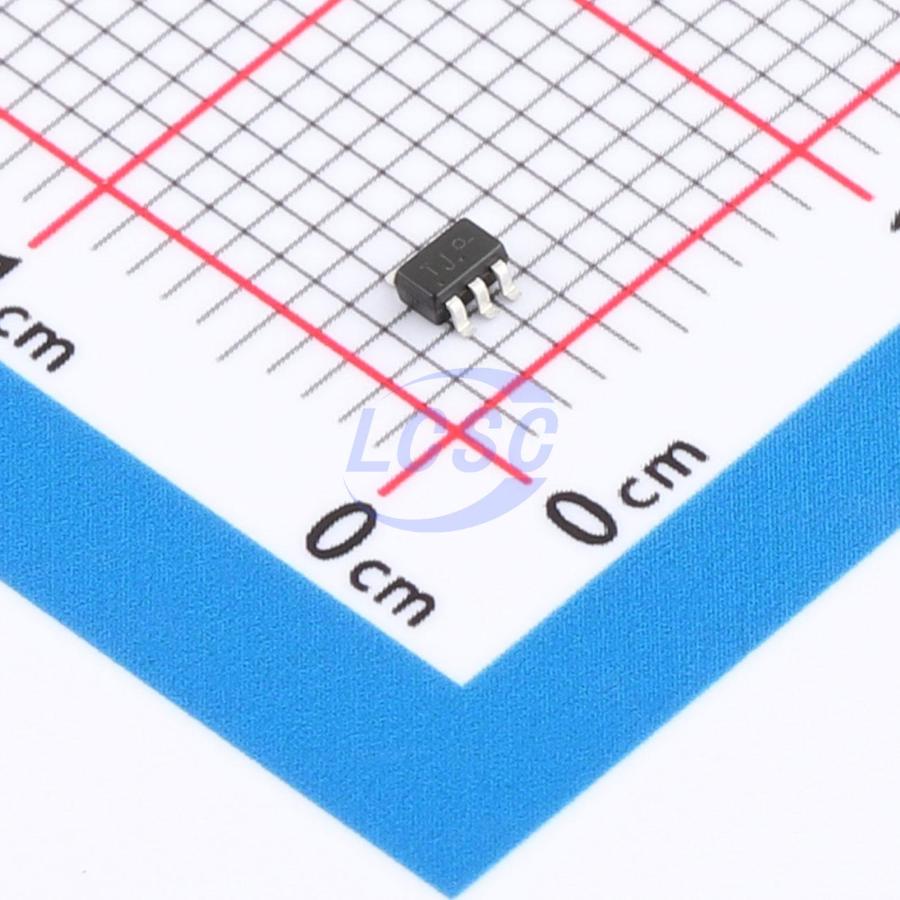

TPNTJS3151PT1G
1.5W 20V 3A 80mΩ@4.5V 1 P-Channel P-Channel SOT-363 Single FETs, MOSFETs
SOT-363RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPNTJS3151PT1G
- Store part #
- C52145984
- Package / case
- SOT-363
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,270 in stock
#C52145984
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.72 | ₹53.60 |
| 50+ | ₹8.43 | ₹421.50 |
| 150+ | ₹7.29 | ₹1,093.50 |
| 500+ | ₹6.43 | ₹3,215.00 |
| 3,000+ | ₹5.74 | ₹17,220.00 |
| 6,000+ | ₹5.40 | ₹32,400.00 |
5 × ₹10.72
₹53.60
excl. GST
₹63.25 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPNTJS3151PT1G
₹53.60 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 105pF
- Ciss-Input Capacitance
- 470pF
- Pd - Power Dissipation
- 1.5W
- Drain to Source Voltage
- 20V
- Configuration
- Standalone
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 3A
- Reverse Transfer Capacitance (Crss)
- 80pF
- RDS(on)
- 80mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 5.5nC
- Vgs
- ±10V
- Gate Threshold Voltage (Vgs(th))
- 600mV
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.017 g
Overview
Applications
- Interface Switch - Portable Devices & Batteries - Load Switch
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FDG328P-TP#C52145979TECH PUBLIC · SOT-363 | TECH PUBLIC | SOT-363 | 975 | ₹10.69 · 975 in stock | View |
 | FDG332PZ-TP#C52145980TECH PUBLIC · SOT-363 | TECH PUBLIC | SOT-363 | 1,000 | ₹10.69 · 1,000 in stock | View |
 | FDG330P-TP#C52145981TECH PUBLIC · SOT-363 | TECH PUBLIC | SOT-363 | 1,000 | ₹10.69 · 1,000 in stock | View |
 | FDG326P-TP#C52145982TECH PUBLIC · SOT-363 | TECH PUBLIC | SOT-363 | 900 | ₹10.62 · 900 in stock | View |
 | TPSI1469DH-T1-GE3#C52145983TECH PUBLIC · SOT-363 | TECH PUBLIC | SOT-363 | 1,000 | ₹10.69 · 1,000 in stock | View |
