TECH PUBLICDatasheet (PDF)

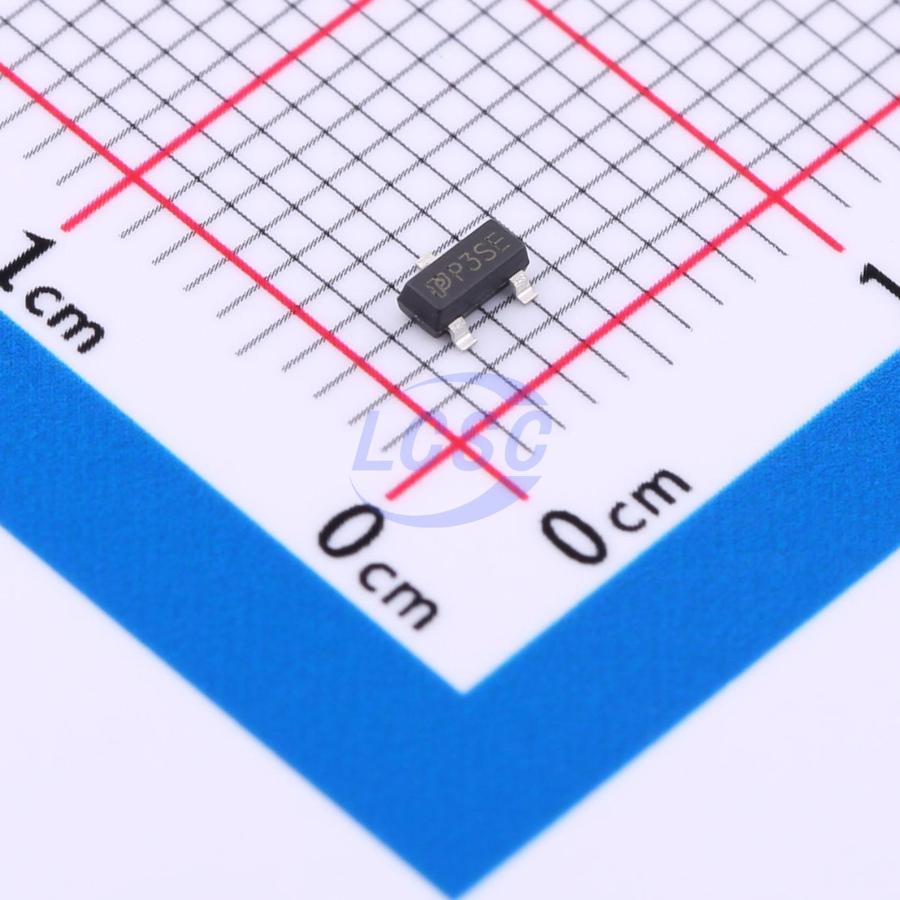

TPNTR1P02T1G
30V 2A 1W Surface Mount SOT-23
SOT-23RoHSActive
MOSFET 30V 2A SOT-23
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPNTR1P02T1G
- Store part #
- C5197329
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,140 in stock
#C5197329
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹10.03 | ₹100.30 |
| 100+ | ₹8.04 | ₹804.00 |
| 300+ | ₹7.05 | ₹2,115.00 |
| 3,000+ | ₹5.74 | ₹17,220.00 |
| 6,000+ | ₹5.15 | ₹30,900.00 |
| 9,000+ | ₹4.84 | ₹43,560.00 |
10 × ₹10.03
₹100.30
excl. GST
₹118.35 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPNTR1P02T1G
₹100.30 for 10 + GST
Specifications
- Output Capacitance(Coss)
- 35pF
- Ciss-Input Capacitance
- 155pF
- Pd - Power Dissipation
- 1W
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 2A
- Reverse Transfer Capacitance (Crss)
- 4pF
- RDS(on)
- 190mΩ@2.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 8nC@15V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.03 g
Overview
Applications
- Battery Protection - Load Switch - Power Management
Key features
- Innovative Design
- Superior avalanche ruggedness
- Robust gate oxide technology
- Ultra-low intrinsic capacitance
- Excellent switching characteristics
- Unmatched gate charge: 10.5 nC (typical)
- Extended safe operating area
- Lower RDS(ON): 2.0 Ω (typical) @VGS = 10V
- 100% avalanche tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NDS352AP#C5197339TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 1,000 | ₹11.38 · 1,000 in stock | View |
 | NTR4502PT1G#C5197332TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 1,545 | ₹12.70 · 1,545 in stock | View |
 | TPM30V2PS3#C5197333TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 3,665 | ₹7.38 · 3,665 in stock | View |
 | NTR0202PLT1G#C5197330TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,480 | ₹10.95 · 2,480 in stock | View |
 | TPBSS315P#C5197331TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,765 | ₹11.02 · 2,765 in stock | View |
