TECH PUBLICDatasheet (PDF)

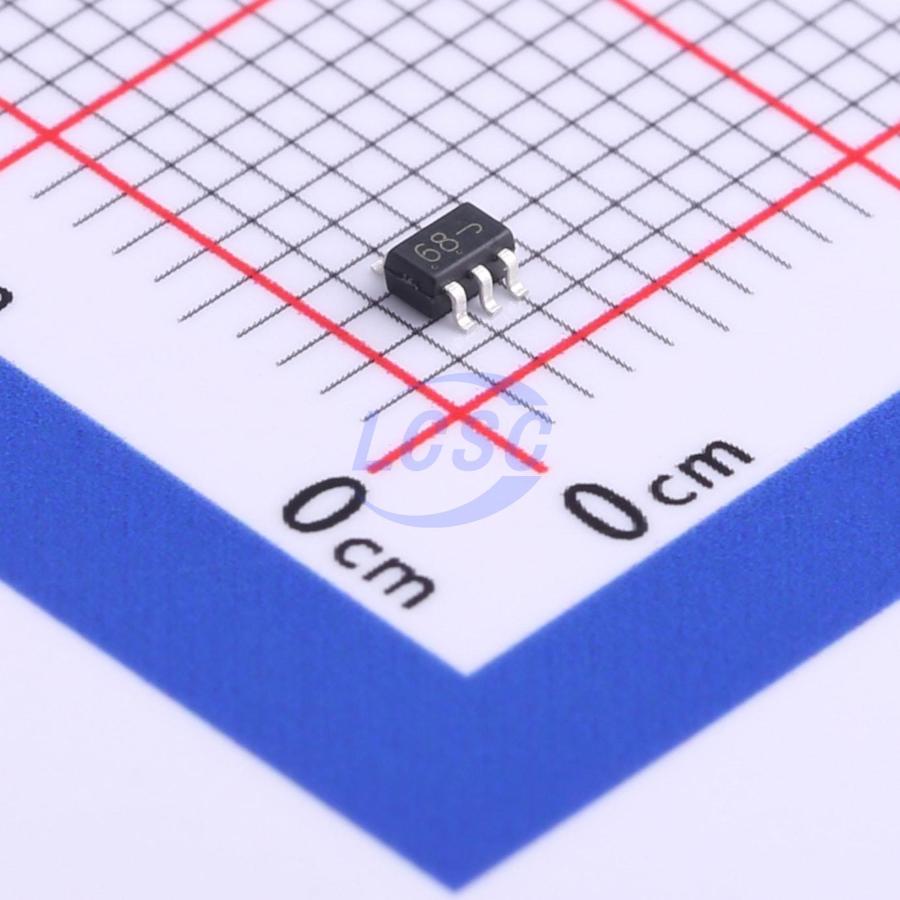

TPNUP2301MW6T1G
nan
SOT-363RoHSActive
70VWM 10VC SOT-363
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPNUP2301MW6T1G
- Store part #
- C708740
- Package / case
- SOT-363
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
630 in stock
#C708740
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.61 | ₹113.05 |
| 50+ | ₹18.87 | ₹943.50 |
| 150+ | ₹16.99 | ₹2,548.50 |
| 500+ | ₹15.58 | ₹7,790.00 |
| 3,000+ | ₹13.84 | ₹41,520.00 |
| 6,000+ | ₹13.27 | ₹79,620.00 |
5 × ₹22.61
₹113.05
excl. GST
₹133.40 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPNUP2301MW6T1G
₹113.05 for 5 + GST
Specifications
- Clamping Voltage
- 10V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 20A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 250W@8/20us
- Number of Channels
- 2
- type
- ESD
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 500nA
- Reverse Stand-Off Voltage (Vrwm)
- 70V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.035 g
Overview
Applications
- Portable Instrumentation
- Microprocessor Based Equipmenmt
- Cell Phone Handsets and Accessories
- Personal Digital Assistants (PDAs) and Pagers
Key features
- Working voltage: 70V
- Low capacitance: 0.5pf
- Complies with following standards:
- IEC 61000 - 4 - 2 (ESD) immunity test Air discharge: ±25kV Contact discharge: ±20kV
- IEC61000 - 4 - 4 (EFT) 40A (5/50ns)
- RoHS Compliant
