TECH PUBLICDatasheet (PDF)

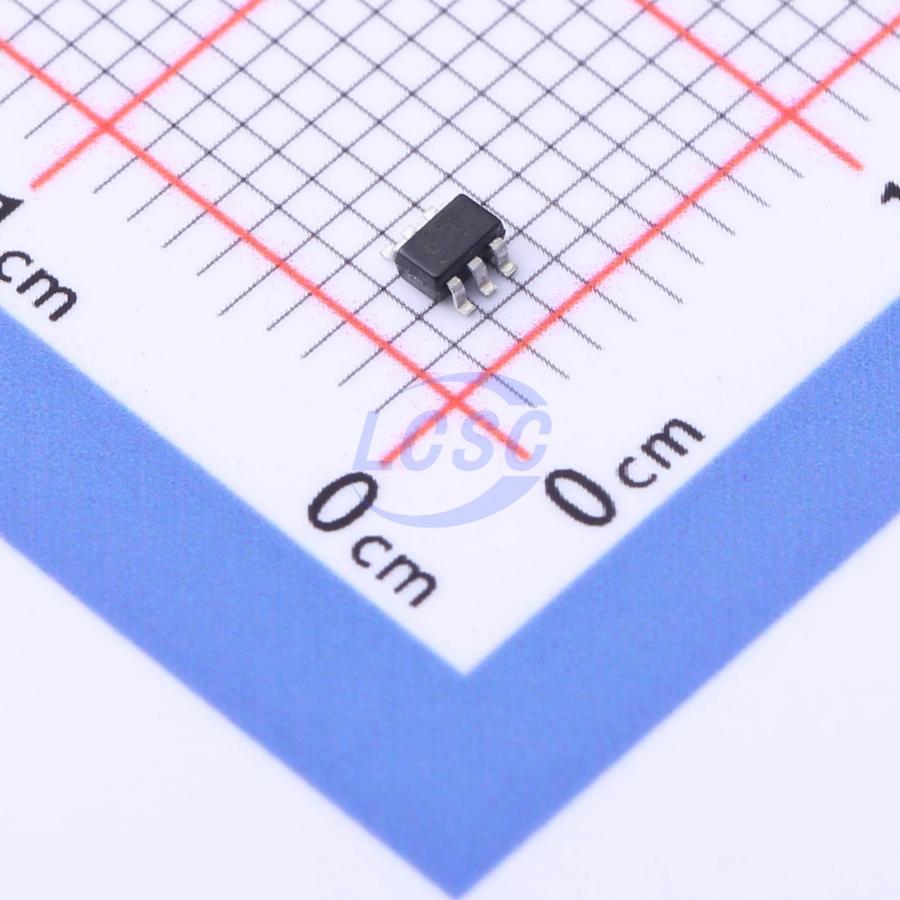

TPNUP4202W1T2G
10VC 13VC Clamp 6A@8/20us Ipp SOT-363
SOT-363RoHSActive
5VWM 10VC 13VC SOT-363
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPNUP4202W1T2G
- Store part #
- C970012
- Package / case
- SOT-363
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,360 in stock
#C970012
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.64 | ₹68.20 |
| 50+ | ₹10.99 | ₹549.50 |
| 150+ | ₹9.67 | ₹1,450.50 |
| 500+ | ₹8.68 | ₹4,340.00 |
| 3,000+ | ₹7.13 | ₹21,390.00 |
| 6,000+ | ₹6.73 | ₹40,380.00 |
5 × ₹13.64
₹68.20
excl. GST
₹80.48 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPNUP4202W1T2G
₹68.20 for 5 + GST
Specifications
- Clamping Voltage
- 13V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 6A@8/20us
- Number of Channels
- Four channels
- Voltage - Breakdown
- 6V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.022 g
Overview
Applications
- Monitors and flat panel displays
- Set - top box and Digital TV
- Video graphics cards
- Digital Video Interface (DVI)
Key features
- Ultra low capacitance: 0.3pF typical (I/O - I0)
- Ultra low leakage: nA level
- Low operating voltage: 5V
- Low clamping voltage
- Low capacitance
- Complies with following standards: IEC 61000 - 4 - 2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
- IEC61000 - 4 - 5 (Lightning) 6A (8/20μs)
- IEC61000 - 4 - 4 (EFT) 40A (5/50ns)
- RoHS Compliant
