TECH PUBLICDatasheet (PDF)

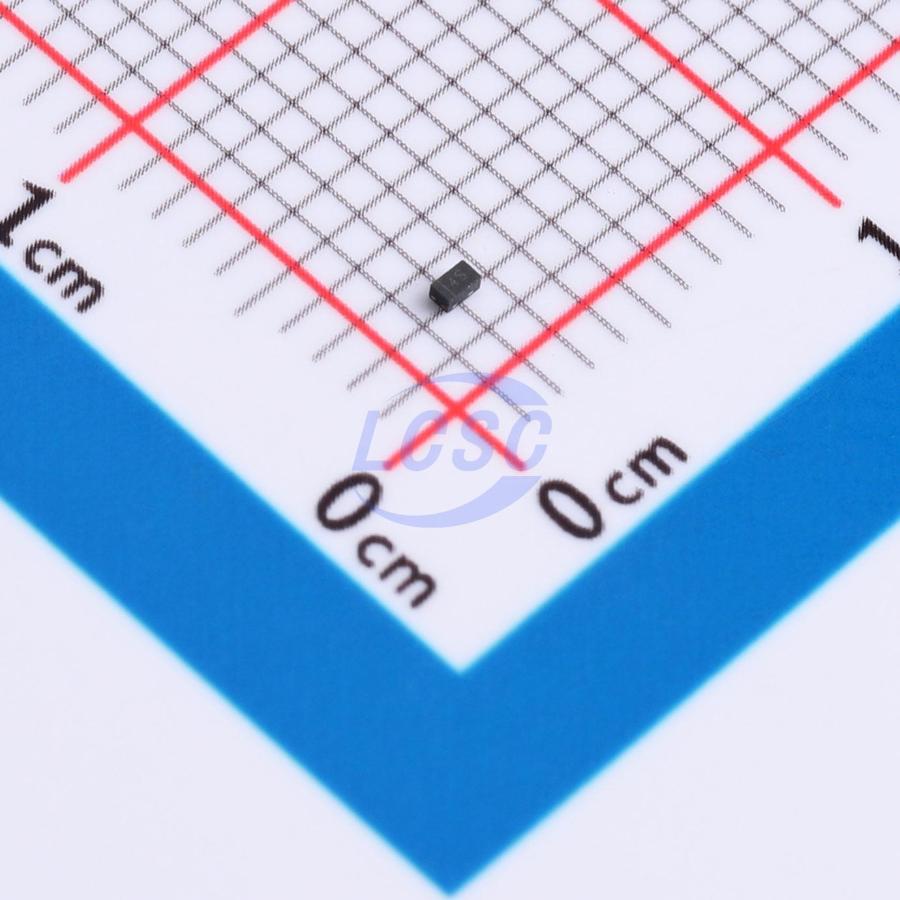

TPNX7002BKMYL
350mW 60V 300mA 1.8Ω@10V 1 N-channel N-Channel DFN1006-3L Single FETs, MOSFETs
DFN1006-3LRoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPNX7002BKMYL
- Store part #
- C52817291
- Package / case
- DFN1006-3L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,300 in stock
#C52817291
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.43 | ₹88.60 |
| 200+ | ₹3.44 | ₹688.00 |
| 600+ | ₹2.88 | ₹1,728.00 |
| 3,000+ | ₹2.57 | ₹7,710.00 |
| 9,000+ | ₹2.28 | ₹20,520.00 |
| 21,000+ | ₹2.12 | ₹44,520.00 |
20 × ₹4.43
₹88.60
excl. GST
₹104.55 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPNX7002BKMYL
₹88.60 for 20 + GST
Specifications
- Output Capacitance(Coss)
- 18pF
- Ciss-Input Capacitance
- 27pF
- Pd - Power Dissipation
- 350mW
- Drain to Source Voltage
- 60V
- Configuration
- Standalone
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 300mA
- Reverse Transfer Capacitance (Crss)
- 2pF
- RDS(on)
- 1.8Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 1.7nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1.6V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.006 g
Overview
Applications
- Direct logic level interface: TTL/CMOS
- Drivers: relays, solenoids, lamps, hammers, displays, memories, transistors, etc.
- Battery-powered systems
- Solid-state relays
Key features
- VDS = 60V, ID = 0.3A
- RDS(ON) < 2.5Ω at VGS = 4.5V
- RDS(ON) < 2.2Ω at VGS = 10V
- ESD Rating: Human Body Model 2000V
