TECH PUBLICDatasheet (PDF)

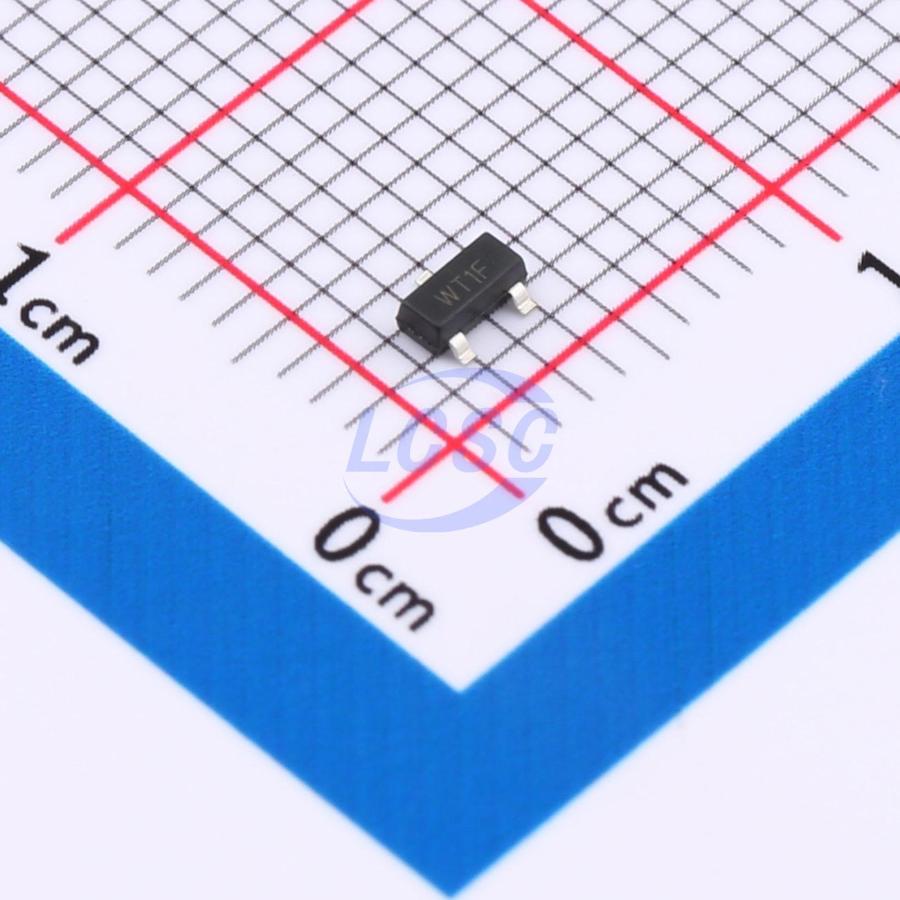

TPNXV75UPR
P-Channel 20V 2.8A 1.25W Surface Mount SOT-23
SOT-23RoHSActive
MOSFET P-CH 20V 2.8A SOT-23
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPNXV75UPR
- Store part #
- C28642305
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,490 in stock
#C28642305
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.07 | ₹80.70 |
| 100+ | ₹6.51 | ₹651.00 |
| 300+ | ₹5.73 | ₹1,719.00 |
| 3,000+ | ₹5.13 | ₹15,390.00 |
| 6,000+ | ₹4.67 | ₹28,020.00 |
| 9,000+ | ₹4.43 | ₹39,870.00 |
10 × ₹8.07
₹80.70
excl. GST
₹95.23 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPNXV75UPR
₹80.70 for 10 + GST
Specifications
- Drain to Source Voltage
- 20V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 210pF
- Current - Continuous Drain(Id)
- 2.8A
- Ciss-Input Capacitance
- 1.16nF
- Pd - Power Dissipation
- 1.25W
- Reverse Transfer Capacitance (Crss)
- 125pF
- RDS(on)
- 110mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 12.7nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.03 g
Overview
Applications
- PWM applications
- Load switching
- Power management
Key features
- High power and large current handling capability
- Lead-free products available
- Surface mount package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRLML2246TRPBF#C28646352TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 3,040 | ₹7.99 · 3,040 in stock | View |
 | TPM20V3PLS3#C5246397TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 790 | ₹4.11 · 790 in stock | View |
 | BSS215P#C28646322TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 1,630 | ₹7.49 · 1,630 in stock | View |
 | BSH205G2AR#C19268142TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 1,440 | ₹6.87 · 1,440 in stock | View |
 | FDN308P#C7472857TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,140 | ₹7.55 · 2,140 in stock | View |
