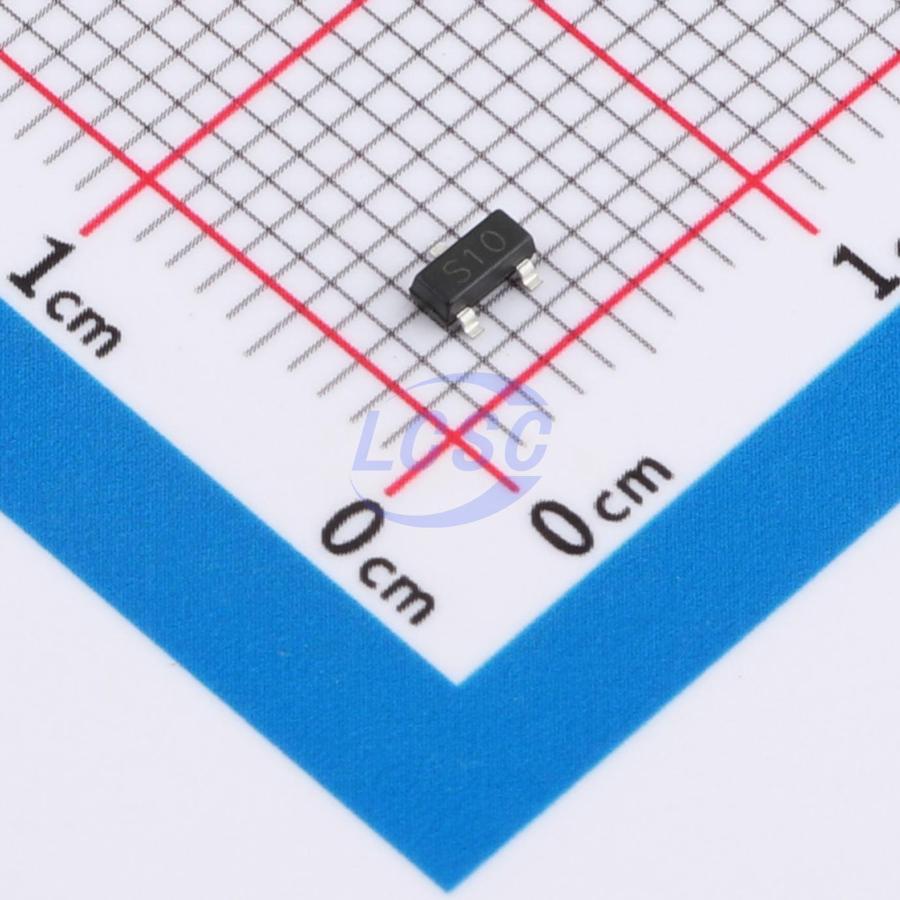

TPQM6008K
350mW 60V 3A 105mΩ@10V 1 N-channel N-Channel SOT-23 Single FETs, MOSFETs
SOT-23RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPQM6008K
- Store part #
- C52098262
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,310 in stock
#C52098262
Stock & price checked 14 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.38 | ₹63.80 |
| 100+ | ₹5.01 | ₹501.00 |
| 300+ | ₹4.34 | ₹1,302.00 |
| 3,000+ | ₹3.82 | ₹11,460.00 |
| 6,000+ | ₹3.41 | ₹20,460.00 |
| 9,000+ | ₹3.21 | ₹28,890.00 |
10 × ₹6.38
₹63.80
excl. GST
₹75.28 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPQM6008K
₹63.80 for 10 + GST
Specifications
- Output Capacitance(Coss)
- 34pF
- Ciss-Input Capacitance
- 247pF
- Pd - Power Dissipation
- 350mW
- Drain to Source Voltage
- 60V
- Configuration
- Standalone
- Current - Continuous Drain(Id)
- 3A
- Reverse Transfer Capacitance (Crss)
- 19.5pF
- RDS(on)
- 105mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 6nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 500mV
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.031 g
Overview
Applications
- Load/power switching
- Interface switching
- Logic level translation
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AO3422#C5122003TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 11,050 | ₹8.36 · 11,050 in stock | View |
 | AP2310GN#C5122010TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 10,910 | ₹9.34 · 10,910 in stock | View |
 | DMN6075S#C5122015TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 4,360 | ₹8.85 · 4,360 in stock | View |
 | DMN6140L#C5122016TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 3,310 | ₹8.80 · 3,310 in stock | View |
 | NTR5198NLT1G#C5122029TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 8,370 | ₹9.50 · 8,370 in stock | View |
