TECH PUBLIC

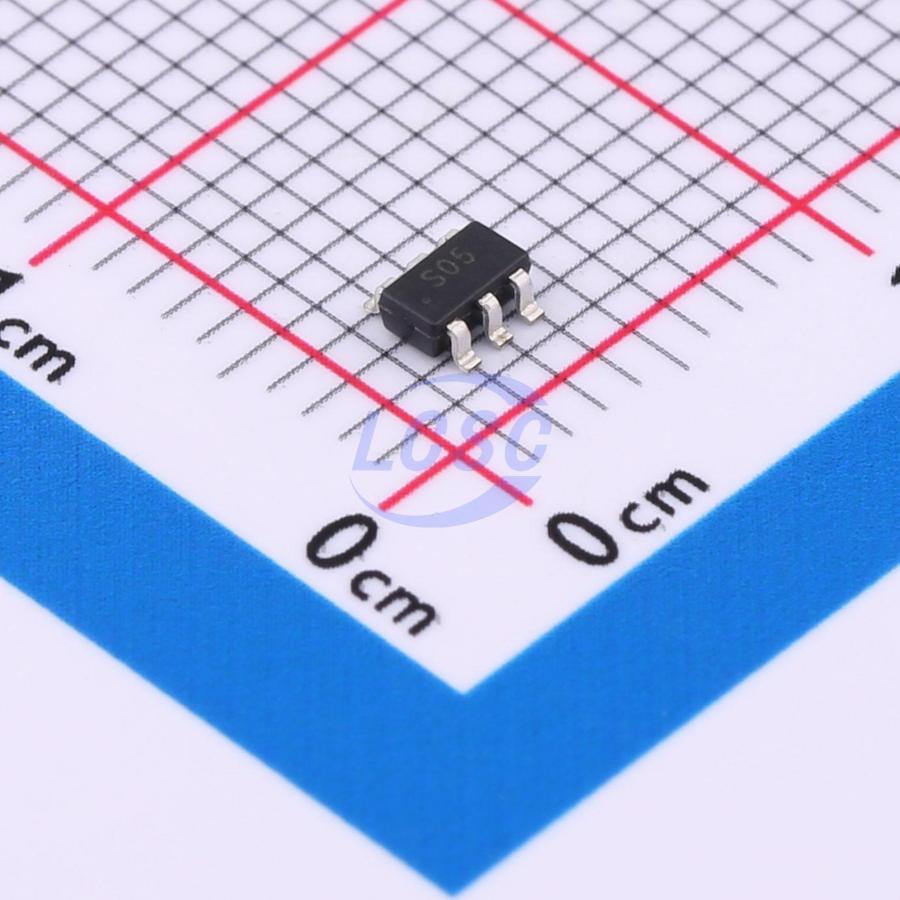

TPRCLAMP0524S

16VC Clamp 10A@8/20us Ipp SOT-23-6

SOT-23-6RoHSActive

5VWM 16VC SOT-23-6

Manufacturer: TECH PUBLIC
Manufacturer part #: TPRCLAMP0524S
Store part #: C19829510
Package / case: SOT-23-6
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,970 in stock

#C19829510

Stock & price checked 14 days ago

Quantity	Unit price	Pack price
5+	₹24.55	₹122.75
50+	₹21.82	₹1,091.00
150+	₹20.64	₹3,096.00
500+	₹19.17	₹9,585.00
3,000+	₹16.59	₹49,770.00
6,000+	₹16.21	₹97,260.00

Quantity (min 5, multiples of 5)

5 × ₹24.55

₹122.75

excl. GST

₹144.85 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPRCLAMP0524S

₹122.75 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 16V
Operating Temperature: -55℃~+125℃
Peak Pulse Current (Ipp): 10A@8/20us
Peak Pulse Power Dissipation (Ppp): 150W@8/20us
Number of Channels: Four channels
Voltage - Breakdown: 6V
type: TVS
Polarity: Unidirectional
Reverse Leakage Current (Ir): 200nA
Reverse Stand-Off Voltage (Vrwm): 5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.404 g

Overview

Applications

Monitors and flat panel displays
Digital Video Interface (DVI)
10/100/1000 Ethernet
Laptops

Key features

150W peak pulse power (8/20μs)
Low operating voltage: 5V
Ultra-low capacitance: typical 1.0pF
Ultra-low leakage: nanoamp level
Low clamping voltage
Protects one power or data line
Compliant with:
IEC 61000-4-2 (ESD) immunity test
Air discharge: ±15kV
Contact discharge: ±8kV
IEC 61000-4-5 (Surge) 10A (8/20μs)
IEC 61000-4-4 (EFT) 40A (5/50ns)
RoHS compliant
Package: SOT23-6
Lead finish: Matte tin
Body material: "Green" molding compound
UL flammability rating: 94V-0
Moisture sensitivity: Level 3 per J-STD-020
Shipping quantity: 3000 pcs/7-inch reel
