TECH PUBLICDatasheet (PDF)

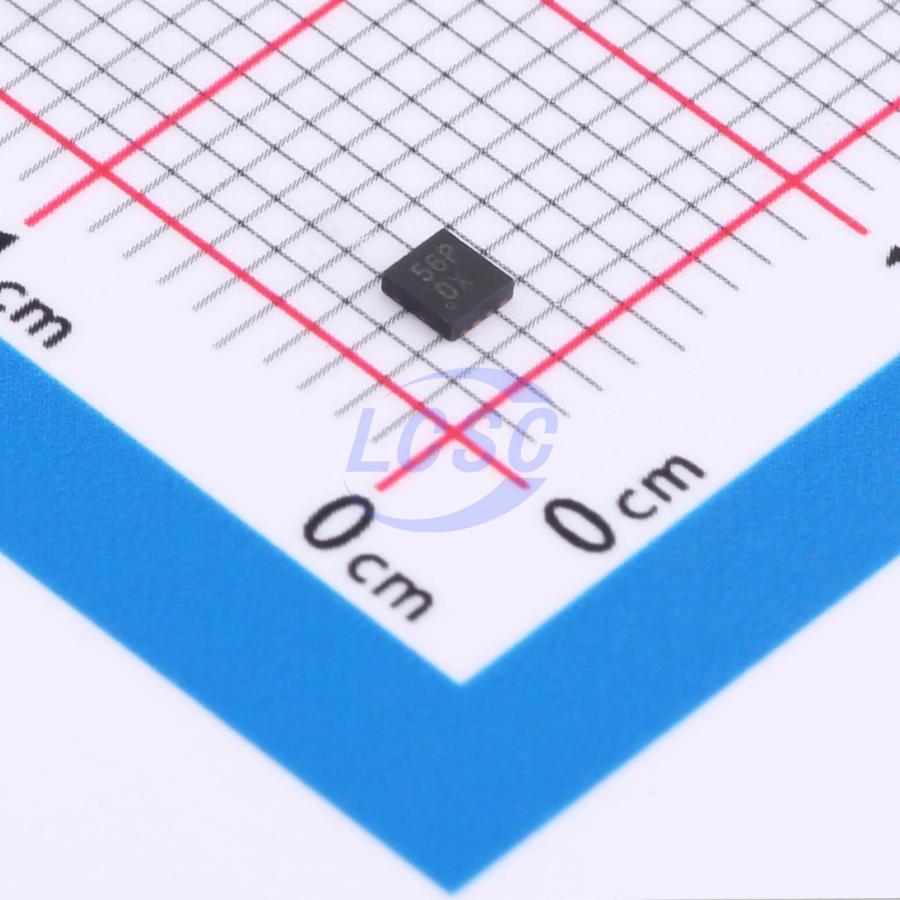

TPRCLAMP2656P
15VC 20VC 35VC 45VC Clamp 3A@8/20us 80A@8/20us Ipp ESD DIODE SLP2018P6
SLP2018P6RoHSActive
ESD DIODE 5VWM 26VWM 15VC 20VC 35VC 45VC SLP2018P6
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPRCLAMP2656P
- Store part #
- C16197291
- Package / case
- SLP2018P6
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,040 in stock
#C16197291
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.34 | ₹71.70 |
| 50+ | ₹14.00 | ₹700.00 |
| 150+ | ₹13.76 | ₹2,064.00 |
| 500+ | ₹13.53 | ₹6,765.00 |
5 × ₹14.34
₹71.70
excl. GST
₹84.61 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
TPRCLAMP2656P
₹71.70 for 5 + GST
Specifications
- Clamping Voltage
- 45V;20V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 3A@8/20us;80A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 3kW@8/20us;60W@8/20us
- Number of Channels
- Three channels
- Voltage - Breakdown
- 9V;30V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 300nA;100nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V;26V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.036 g
Overview
Applications
- USB 2.0
- USB OTG
- uUSB
Key features
- Protects USB DP, DM, and ID Pins operating up to +/- 5V
- Protects USB VBus operating up to 26V
- Low capacitance (<0.5pF) on DP, DM, and ID Pins
- Low clamping voltage
- Solid-state silicon-avalanche technology
- ESD and surge protection for USB Voltage Bus to - IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV - IEC61000-4-5 (Lightning) 80A (8/20μs) - IEC61000-4-4 (EFT) 40A (5/50μs)
- ESD protection for USB data lines to - IEC 61000-4-2 (ESD) immunity test Air discharge: ±15kV Contact discharge: ±15kV
- RoHS Compliant
- RClamp2656P Pin to Pin Fully compatible
