TECH PUBLICDatasheet (PDF)

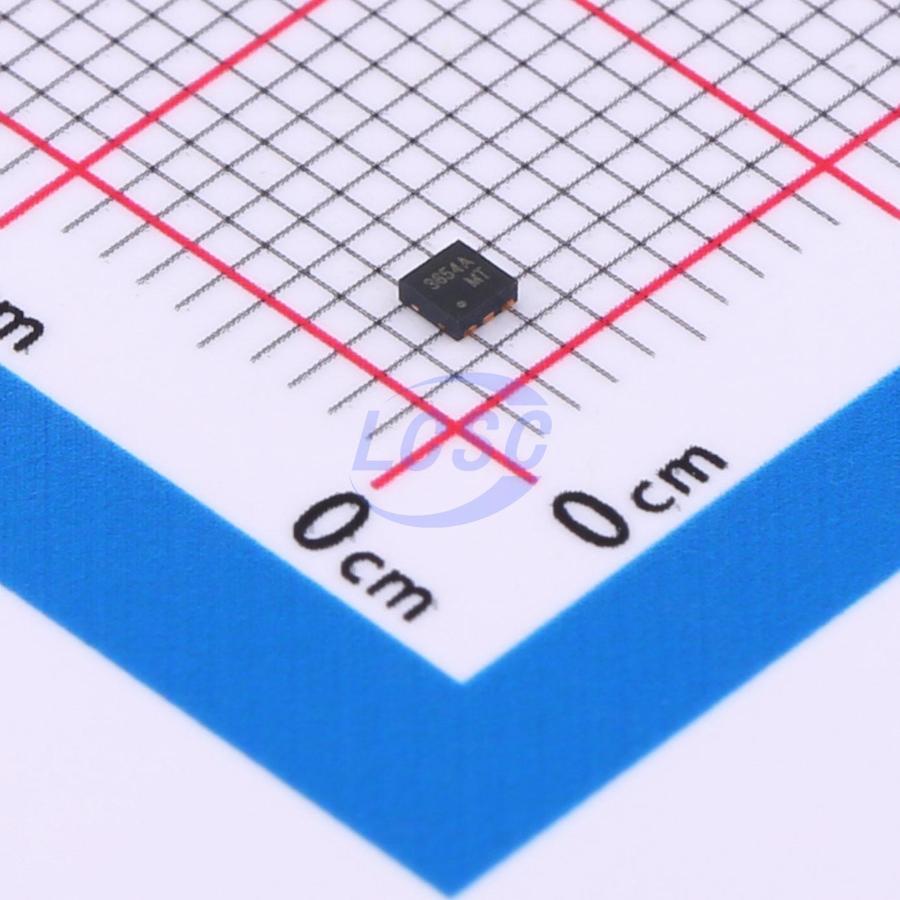

TPRCLAMP3654PATCT
30VC Clamp 3A@8/20us 4A@8/20us Ipp TVS DIODE DFN1616-6
DFN1616-6RoHSActive
TVS DIODE 5.5VWM 30VC DFN1616-6
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPRCLAMP3654PATCT
- Store part #
- C19829508
- Package / case
- DFN1616-6
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,215 in stock
#C19829508
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.47 | ₹102.35 |
| 50+ | ₹18.18 | ₹909.00 |
| 150+ | ₹17.20 | ₹2,580.00 |
| 500+ | ₹15.98 | ₹7,990.00 |
| 3,000+ | ₹13.83 | ₹41,490.00 |
| 6,000+ | ₹13.51 | ₹81,060.00 |
5 × ₹20.47
₹102.35
excl. GST
₹120.77 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPRCLAMP3654PATCT
₹102.35 for 5 + GST
Specifications
- Clamping Voltage
- 30V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 3A@8/20us;4A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 100W@8/20us;350W@8/20us
- Number of Channels
- Three channels
- Voltage - Breakdown
- 8V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.051 g
Overview
Applications
- USB2.0 USBOTG
- SD Card Interfaces
- SIM Ports
- MDDI Ports
- MPPI Ports
Key features
- Transient protection for high-speed data lines to IEC 61000-4-2 (ESD) ±25kV (air), ±8kV (contact)
- IEC61000-4-4 (EFT) 40A (5/50ns)
- Array of surge rated diodes with internal Tvs Diode
- Small package (1.6×1.6mm) saves board space
- Protects USB DP, DM, and ID Pin operating up to 5.5V
- Protects USB VBus operating up to 28V
- Low capacitance (<1pF) on DP, DM, and ID Pins
- No insertion loss to 2.0GHz
- Low leakage current
- Low clamping voltage
- Large ground pad for increased ESD performance
- Solid-state silicon-avalanche technology
