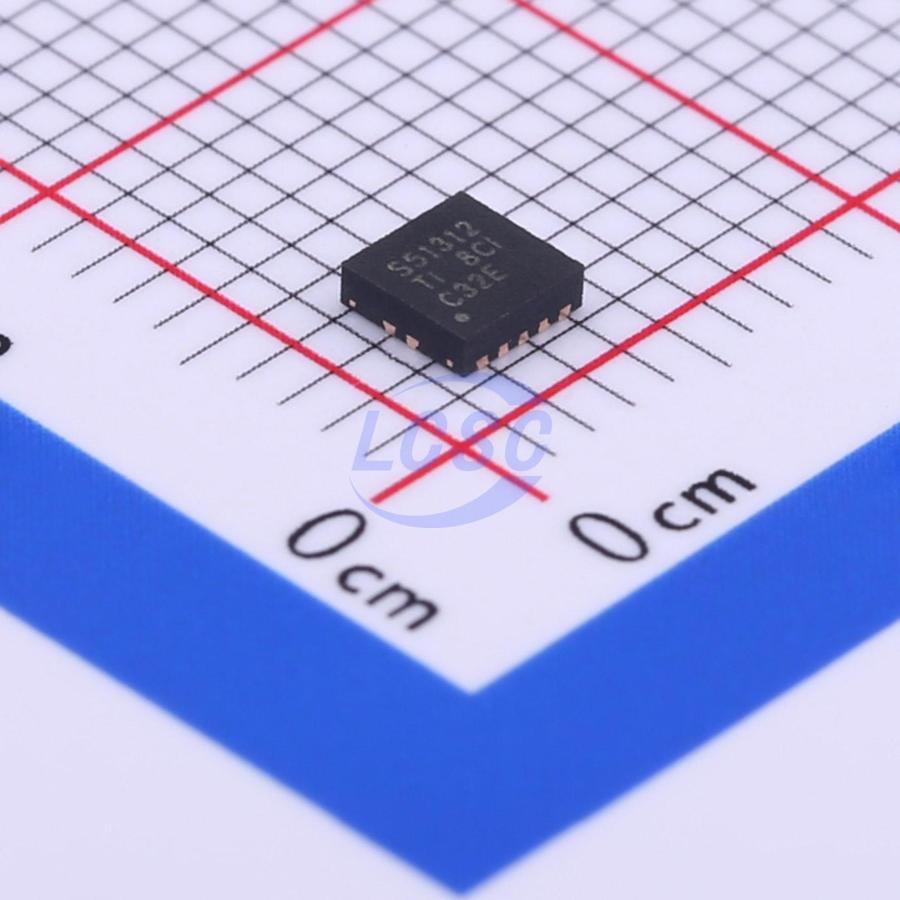

TPS51312DRCR

900kHz Step-down type Adjustable 600mV~3.3V 3A VSON-10-EP(3x3) Voltage Regulators - DC DC Switching Regulators RoHS

VSON-10-EP(3x3)ROHS3 CompliantActive

High-Efficiency Synchronous Step-Down DC/DC Converter

Manufacturer: TI
Manufacturer part #: TPS51312DRCR
Store part #: C398912
Package / case: VSON-10-EP(3x3)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

6,375 in stock

#C398912

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹56.15	₹280.75
50+	₹45.27	₹2,263.50
150+	₹40.62	₹6,093.00
500+	₹34.79	₹17,395.00
3,000+	₹29.53	₹88,590.00
6,000+	₹27.98	₹1,67,880.00

Quantity (min 5, multiples of 5)

5 × ₹56.15

₹280.75

excl. GST

₹331.29 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPS51312DRCR

₹280.75 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃@(TA)
Frequency - Switching: 900kHz
Function: Step-down type
Number of Outputs: 1
Features: Cycle-by-cycle current limiting;Protection latch;Output discharge;Light load efficient mode;Operating status indication;Overcurrent Protection
Output Type: Adjustable
Topology: Buck
Operating Voltage: 3.1V~5.5V
Switch tube (built-in/external): Built-in
Output Voltage: 600mV~3.3V
Output Current: 3A
Quiescent Current: 700uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.112 g

Overview

The TPS51312 is a high-efficiency, synchronous, step-down DC/DC converter. It supports 3-A (maximum) of dc output current at output voltages from 0.6 V to 3.3 V. The D-CAP2 mode adaptive ontime control allows a small footprint when designed using all ceramic output capacitors and offers a low external component count. The device also features auto-skip function at light load condition, pre-biased start-up and internally fixed soft-start time. When the device is disabled, the output capacitor is discharged through internal resistor. The TPS51312 is available in a 3 mm x 3 mm, 10-pin DRC package (Green RoHS compliant and Pb free) and is specified between -40°C and 85°C.

Applications

Battery Powered Equipment
Notebook Computers

Key features

D-CAP2™ Mode Enables Fast Transient Response
No External Compensation Required
Input Voltage VIN Range: 3.1 V to 5.5 V
Bias Voltage VCC Range: 3.1 V to 5.5 V
Output Voltage Range: 0.6 V to 3.3 V
0.6-V, ±1% Voltage Reference Accuracy
Fixed Voltage Servo
Soft-Start Function
Auto-Skip, Eco-mode™ for High Efficiency at Light Loads
Switching Frequency: 900 kHz
UVLO, UVP, OTP and OVP
Power Good Output
Cycle-By-Cycle Current Limit, Latch-off OCP
Thermally Enhanced 3 mm x 3 mm, 10-pin SON (DRC)

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
TMI3125#C2985063TMI · DFN-10-EP(3x3)	TMI	DFN-10-EP(3x3)	5,104	₹48.81 · 5,104 in stock	View
MAX20074ATBA/V+#C1136829MAXIM · TDFN-10-EP(3x3)	MAXIM	TDFN-10-EP(3x3)	30	₹859.42 · 30 in stock	View
TPS51312DRCT#C2876563TI · VSON-10-EP(3x3)	TI	VSON-10-EP(3x3)	On request	₹944.54 · 0 in stock	View
TPS51313DRCT#C2071853TI · VSON-10-EP(3x3)	TI	VSON-10-EP(3x3)	On request	₹824.02 · 0 in stock	View
TMI3125F#C29779844TMI · DFN-10(3x3)	TMI	DFN-10(3x3)	On request	₹76.97 · 0 in stock	View
