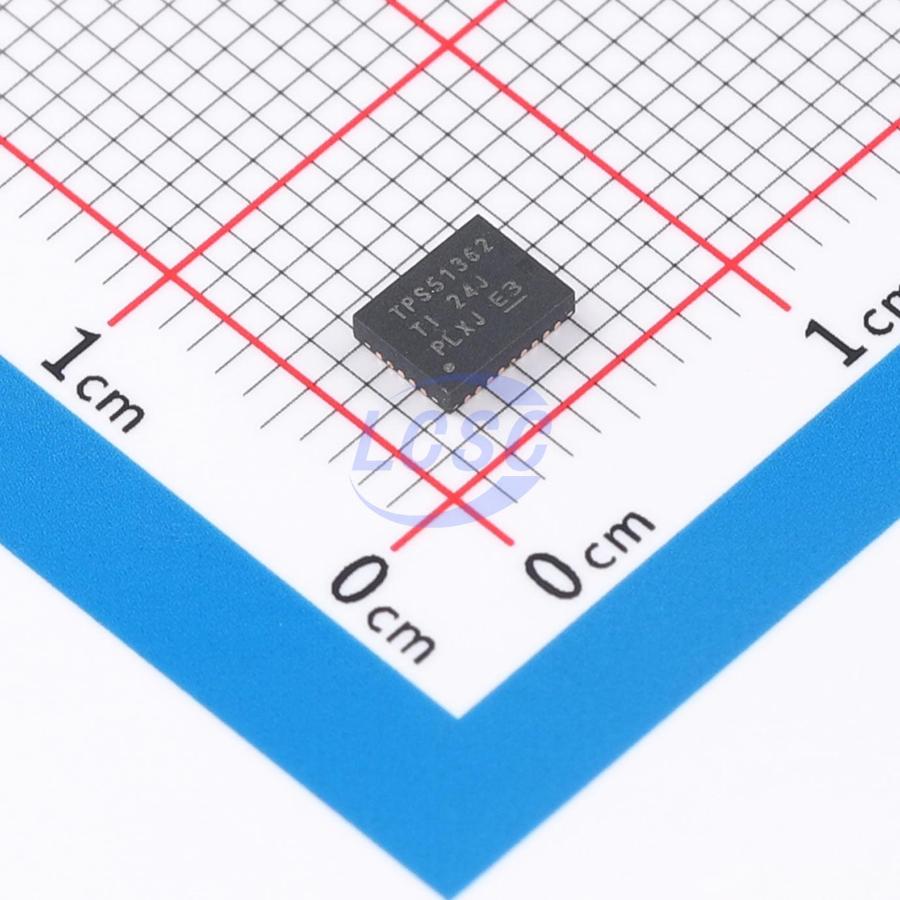

TPS51362RVET

The TPS51362 is a high-voltage input synchronous converter with integrated FETs, based on the DCAP-2™ control topology for fast transient response with support for POSCAP and all-MLCC output capacitors. It provides the highest-density solution for single-output power rails such as VCCIO and VDDQ for DDR notebook memory, or any point-of-load (POL) application. A key feature is ULQ™-100 mode for low quiescent current (100μA in low-power mode, enabled by LP#), helping to extend battery life during system standby. The feature set includes 800kHz switching frequency, soft-start time settable via external capacitor, automatic skip mode, pre-biased startup, integrated bootstrap switch, power good, enable, and a comprehensive suite of fault protection mechanisms including OCL, UVP, OVP, 5V UVLO, and thermal shutdown. Offered in a 3.5mm×4.5mm, 0.4mm ball pitch, 28-pin QFN (RVE) package, rated for an operating temperature range of -10°C to 85°C.

Applications

• Laptop (VCCIO) memory rail (DDR VDDQ)

Key features

• Input voltage range: 3V to 22V
• Output voltage range: 0.6V to 2V
• 10A integrated FET converter
• Minimal external component count
• ULQ™-100 mode operation for extended battery life during system standby
• Soft-start time configurable via external capacitor
• Switching frequency: 800kHz
• D-CAP2™ architecture for compatibility with POSCAP and all-MLCC output capacitors
• Integrated temperature-compensated low-side RDS(on) sensing for precise OCL protection
• Power good output
• OCL, OVP, UVP, and UVLO protection
• Thermal shutdown (non-latching)
• Output discharge function
• Integrated boost MOSFET switch
• 28-pin, 3.5mm×4.5mm, RVE, QFN package with 0.4mm ball pitch and 1mm height
