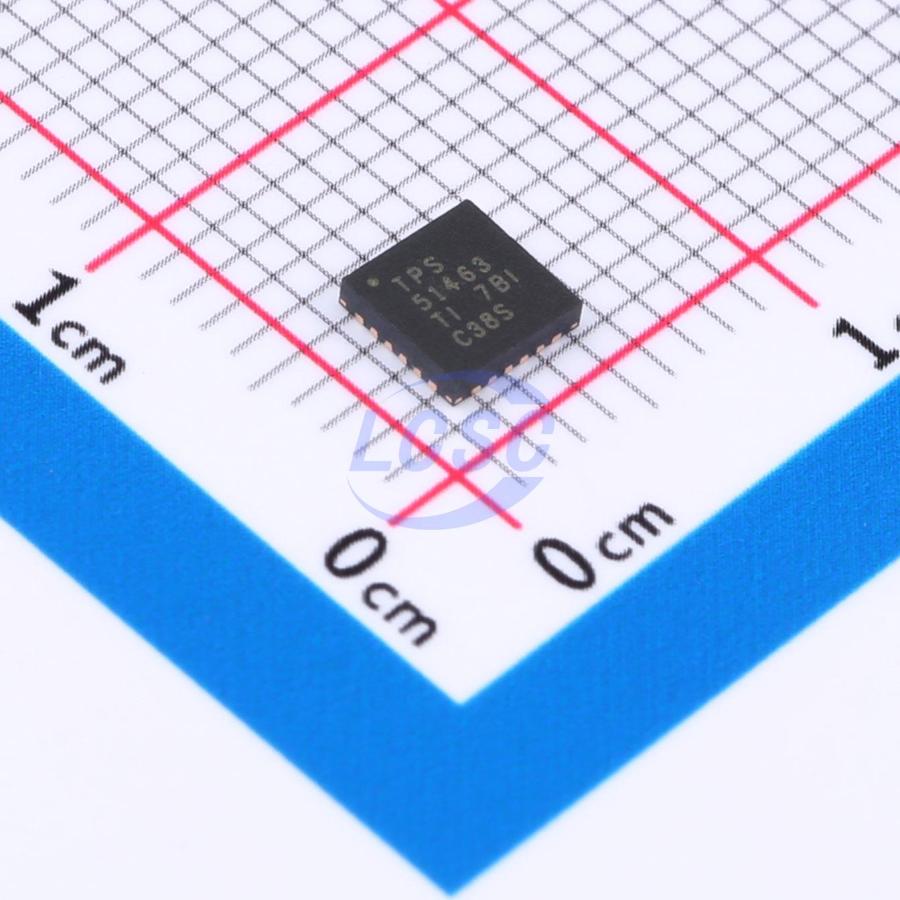

TPS51463RGER
Buck Switching Regulator IC Adjustable 1 Output 5.5A VQFN-24-EP(4x4)
VQFN-24-EP(4x4)ROHS3 CompliantActive
3.3V/5V input, D-CAP+ mode synchronous step-down integrated field-effect transistor (FET) converter
- Manufacturer
- TI
- Manufacturer part #
- TPS51463RGER
- Store part #
- C2071867
- Package / case
- VQFN-24-EP(4x4)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7 in stock
#C2071867
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹815.64 | ₹815.64 |
| 10+ | ₹795.16 | ₹7,951.60 |
| 30+ | ₹781.58 | ₹23,447.40 |
| 100+ | ₹767.99 | ₹76,799.00 |
1 × ₹815.64
₹815.64
excl. GST
₹962.46 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPS51463RGER
₹815.64 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Frequency - Switching
- 700kHz;1MHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Adjustable soft-start;Output discharge;Operating status indication;Overcurrent Protection;Cycle-by-cycle current limiting;Protection latch;Light load efficient mode
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~5.5V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 750mV;775mV;850mV;900mV
- Output Current
- 5.5A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.07 g
Overview
The TPS51463 is a fully integrated synchronous buck regulator using D-CAP+™ technology. This device is intended for applications where system size is critical, with up to 5V voltage drop, and where performance and optimized BOM are essential. The TPS51463 fully supports the Intel® Chief River platform for ULV/CPU system agent applications with integrated 2-bit VID functionality. The TPS51463 also features 2 switching frequency settings (700 kHz and 1 MHz), skip mode, pre-bias startup, programmable external capacitor soft-start time/voltage transition time, output discharge, internal VBST switch, 2V reference (±1%), power good, and enable. The TPS51463 is available in a 4 mm×4 mm, 24-pin QFN package (green RoHS compliant and lead-free), rated for a temperature range of -40℃ to 85℃.
Applications
- Step-down for low-voltage applications on 5 V or 3.3 V rails
- Notebooks/Desktops
- Intel Chief River platform ULV CPU system agent
Key features
- TI proprietary integrated FET converter
- D-CAP+™ mode architecture
- Minimal external component count
- Supports all-MLCC output capacitors and SP/POSCAP
- "Auto-skip" mode
- Selectable 700kHz and 1MHz switching frequency
- Compact 4mm x 4mm, 24-pin QFN package
