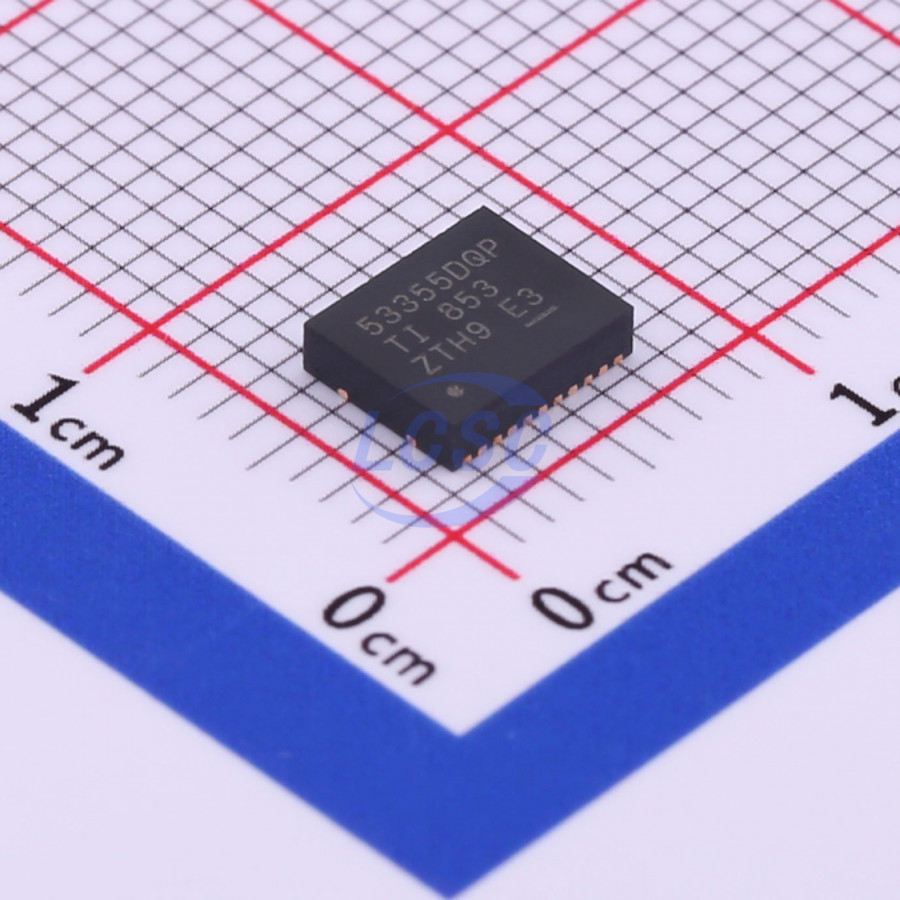

TPS53355DQPR

Buck Switching Regulator IC Adjustable 0.6V~5.5V 1 Output 30A LSON-22-EP(5x6)

LSON-22-EP(5x6)ROHS3 CompliantActive

30A Synchronous Buck Converter

Manufacturer: TI
Manufacturer part #: TPS53355DQPR
Store part #: C148172
Package / case: LSON-22-EP(5x6)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,076 in stock

#C148172

Stock & price checked 14 days ago

Quantity	Unit price	Pack price
1+	₹843.62	₹843.62
10+	₹712.46	₹7,124.60
30+	₹632.46	₹18,973.80
100+	₹489.79	₹48,979.00

Quantity (min 1)

1 × ₹843.62

₹843.62

excl. GST

₹995.47 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

TPS53355DQPR

₹843.62 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃
Frequency - Switching: 1MHz
Function: Step-down type
Number of Outputs: 1
Features: Adjustable current limiting;Cycle-by-cycle current limiting;Hiccup current limiting;Adjustable soft-start;Light load efficient mode;Built-in LDO regulator;Operating status indication;Overcurrent Protection
Output Type: Adjustable
Topology: Buck
Operating Voltage: 1.5V~15V
Switch tube (built-in/external): Built-in
Output Current: 30A
Output Voltage: 600mV~5.5V
Quiescent Current: 420uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 2 (1 year)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.227 g

Overview

The TPS53355 is a D-CAP™ mode, 30A synchronous buck converter with integrated MOSFETs. It is designed for ease of use, minimal external components, and space-constrained power systems. The device features 5mΩ/2mΩ integrated MOSFETs, 1% accuracy, 0.6V reference voltage, and an integrated boost switch. Competitive features include: 1.5V to 15V wide conversion input voltage range, minimal external components, D-CAP™ mode control for ultra-fast transient response, automatic skip mode operation, internal soft-start control, selectable frequency, and no compensation required. The conversion input voltage range is 1.5V to 15V, supply voltage range is 4.5V to 25V, and output voltage range is 0.6V to 5.5V. The device is available in a 22-pin 6mm×5mm QFN package.

Applications

Servers and storage
Workstations and desktops
Telecom infrastructure

Key features

Peak efficiency up to 96%
Conversion input voltage range: 1.5V to 15V
VDD input voltage range: 4.5V to 25V
Output voltage range: 0.6V to 5.5V
5V LDO output
Integrated power MOSFETs supporting single-rail input with 30A continuous output current
Auto-skip Eco-mode for light-load efficiency
Shutdown current <10μA
D-CAP mode with fast transient response
Selectable switching frequency via external resistor, ranging from 250kHz to 1MHz
Selectable auto-skip or PWM-only operating mode
Built-in 1% 0.6V reference voltage
Selectable internal soft-start: 0.7ms, 1.4ms, 2.8ms, and 5.6ms voltage servo
Integrated boost switch
Pre-bias startup capability
Adjustable overcurrent limit with thermal compensation
Overvoltage, undervoltage, UVLO, and overtemperature protection
Full ceramic output capacitor support
Open-drain power-good indicator
Incorporates NexFET power block technology
22-pin QFN package with PowerPAD
"Green" option available (RoHS compliant)
