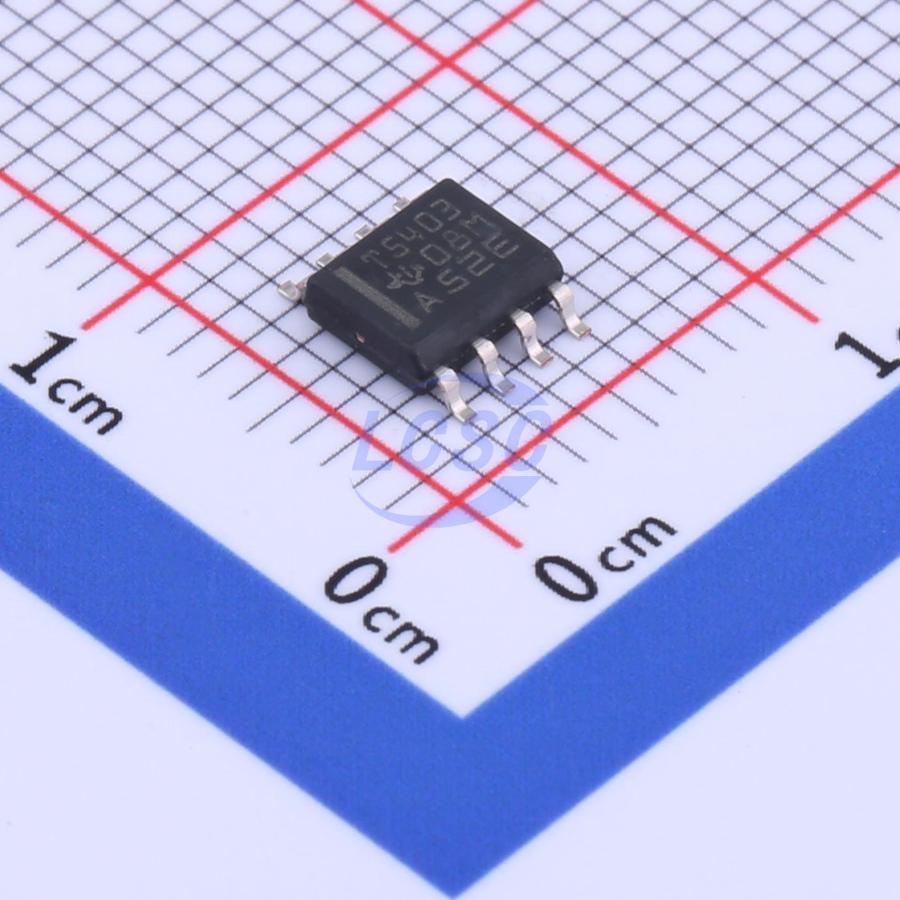

TPS5403DR

Buck Switching Regulator IC Fixed 3.3V 1 Output 1.7A SOIC-8

SOIC-8ROHS3 CompliantActive

4.5V to 28V Input Voltage, 3.3V Fixed Output, 1.7A Output Current Non-Synchronous Buck Regulator

Manufacturer: TI
Manufacturer part #: TPS5403DR
Store part #: C962080
Package / case: SOIC-8
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,303 in stock

#C962080

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹109.11	₹109.11
10+	₹92.99	₹929.90
30+	₹84.94	₹2,548.20
100+	₹77.10	₹7,710.00
500+	₹66.64	₹33,320.00
1,000+	₹64.24	₹64,240.00

Quantity (min 1)

1 × ₹109.11

₹109.11

excl. GST

₹128.75 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

TPS5403DR

₹109.11 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃@(TA)
Frequency - Switching: 1.1MHz
Function: Step-down type
Number of Outputs: 1
Features: Light load efficient mode;Adjustable soft-start;Cycle-by-cycle current limiting;EMI optimization (spread spectrum);External compensation;Overcurrent Protection
Topology: Buck
Output Type: Fixed
Operating Voltage: 4.5V~28V
Switch tube (built-in/external): Built-in
Output Voltage: 3.3V
Output Current: 1.7A
Quiescent Current: 100uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.12 g

Overview

TPS5403是一款具有宽运行输入电压范围（4.5V至28V）的单片非同步降压稳压器。此器件执行内部斜坡补偿的电流模式控制来减少组件数量。 TPS5403还特有一个轻负载脉冲跳跃模式，此特性可在轻负载时减少为系统供电的输入电源的功率损失。可使用一个外部电阻器将此转换器的开关频率设定在50kHz至1.1MHz之间。引入了频率展频操作以减少EMI。添加了LX抗振铃来解决高频EMI问题。具有频率折返功能的逐周期电流限制在过载情况下保护集成电路(IC)。 The TPS5403 is a monolithic non-synchronous buck regulator with a wide operating input voltage range (4.5V to 28V). The device implements current mode control with internal slope compensation to reduce component count. The TPS5403 also features a light-load pulse skipping mode, which reduces power loss from the input supply powering the system under light-load conditions. The converter's switching frequency can be set between 50kHz and 1.1MHz using an external resistor. Frequency spread spectrum operation is incorporated to reduce EMI. LX anti-ringing is added to address high-frequency EMI issues. Cycle-by-cycle current limiting with frequency foldback protects the IC under overload conditions.

Applications

5V, 9V, 12V, and 24V distributed power systems for consumer applications such as home appliances, set-top boxes, CPE equipment, LCD monitors, peripherals, and battery chargers
Industrial and automotive infotainment system power supplies

Key features

Fixed 3.3V output
Wide input voltage range: 4.5V to 28V
Maximum continuous output load current up to 1.7A
Pulse skip mode for high efficiency at light loads
Efficiency exceeds 80% at 10mA load
Adjustable switching frequency 50kHz to 1.1MHz set by a single external resistor
Peak current mode control
Cycle-by-cycle overcurrent protection
Frequency spread spectrum and anti-ringing switch node to mitigate EMI
External soft-start
SOIC-8 package
