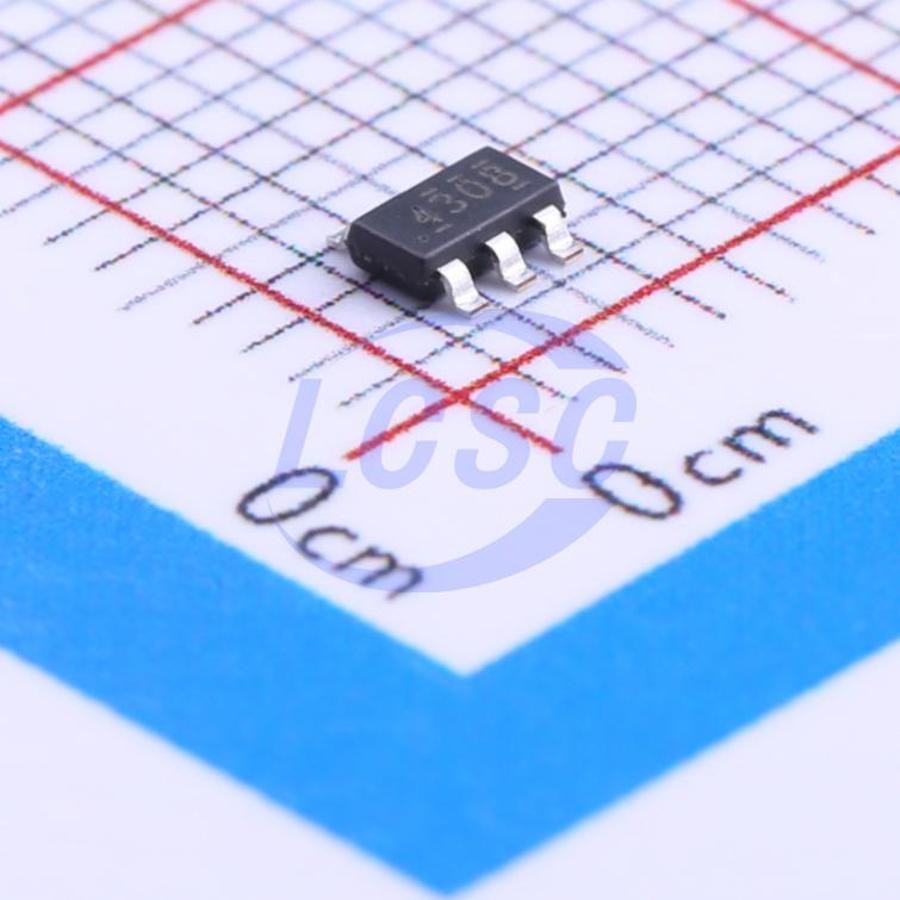

TPS54308DDCR

The TPS54308 is a 4.5-V to 28-V input voltage range, 3-A synchronous buck converter. The device includes two integrated switching FETs, internal loop compensation and 5-ms internal soft start to reduce component count. By integrating the MOSFETs and employing the SOT23 package, the TPS54308 achieves the high power density and offers a small footprint on the PCB. The TPS54308 operates in force continous conduction mode (FCCM) during light load conditions, the switching frequency is maintained at an almost constant level over entire load range. Cycle-by-cycle current limit in both high-side MOSFET protects the converter in an overload condition and is enhanced by a low-side MOSFET freewheeling current limit which prevents current runaway. Hiccup mode protection is triggered if the overcurrent condition has persisted for longer than the present time.

Applications

• 12-V, 24-V Distributed Power-Bus Supply
• Industry Application
• White Goods
• Consumer Application
• Audio STB, DTV Printer

Key features

• 4.5-V to 28-V Wide Input Voltage Range
• Integrated 85-mΩ and 40-mΩ MOSFETs for 3-A, Continuous Output Current
• Low 2-μA Shutdown, 300-μA Quiescent Current
• Internal 5-mS Soft-Start
• Fixed 350-kHz Switching Frequency
• Peak Current Mode Control
• Internal Loop Compensation
• Overcurrent Protection for Both MOSFETs with Hiccup Mode Protection
• Over Voltage Protection
• Thermal Shutdown
• SOT-23 (6) Package
